HIKVISION DS-C80N-01HO CCTV攝影機安裝・保養

Name: HIKVISION DS-C80N-01HO Distributed HDMI output Node
Brand: Hikvision
SKU: DS-C80N-01HO

產品簡介

Hikvision DS-C80N-01HO 為Distributed HDMI output Node，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-C80N-01HO 香港價格連安裝報價。

Device Type：Output node
KVM Function：No
Dual Device Hot Backup：Supported, customized
Optical Interface：1 channel of 1000 Mbps SFP port
Electrical Interface：1 channel of 1000 Mbps Ethernet port

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

Device Type	Output node
KVM Function	No
Dual Device Hot Backup	Supported, customized
Optical Interface	1 channel of 1000 Mbps SFP port
Electrical Interface	1 channel of 1000 Mbps Ethernet port
USB 接口	1 × USB 2.0 port
Screen Type	OLED 128 × 64 dot-matrix screen
Other Interfaces	1 × Console port for debugging
RS-232 Interface	1 channel, Phoenix terminal
RS-485 Interface	1 channel, Phoenix terminal
IO/IR IN Interface	1 channel, Phoenix terminal, customized by software
IO/IR OUT Interface	1 channel, Phoenix terminal, customized by software
IR POWER Interface	1 channel, 3.3 V, Phoenix terminal
RELAY Interface	1 channel, Phoenix terminal
RESET Interface	1 channel
Video Walls	32 (If the video wall quantity exceeds this limit, the custom evaluation is required.) One video wall supports up to 320 output nodes. (If the video wall scale exceeds this limit, the custom evaluation is required.) 17, including 8 local signal sources, 8 network signal sources, and 1 alarm pop-up window
Window Division per Screen	1, 4, 9, 16 The signal from a single input node can be copied into multiple signals and output to multiple output ports. 17, including 8 local signal sources, 8 network signal sources, and 1 alarm pop-up window
Layers per Device	1024
Scenes	1024
Scene Auto-Switch Delay	400 ms
Plans	256
UHD Fusions	16 Up to 4 background images. The maximum size of the background image that can be stored locally is 16 M. Each video wall can display only 1 background image.
Background Resolution	8192 × 4320
Background Format	JPG/JPEG
Subtitles	4
Output Logo Overlay	Not supported
Output OSD	Not supported 50 ms (2K60 signal source), 90 ms (4K60 signal source); 300ms
Signal Source Live View	Supported on the client.
工作溫度	0 °C to 50 °C
工作濕度	0% to 95% 1 × single double base color light indicator, 1 × optical port indicator, 1 × network port indicator
淨重	1.08 kg (2.38 lb.)
毛重	1.67 kg (3.68 lb.)

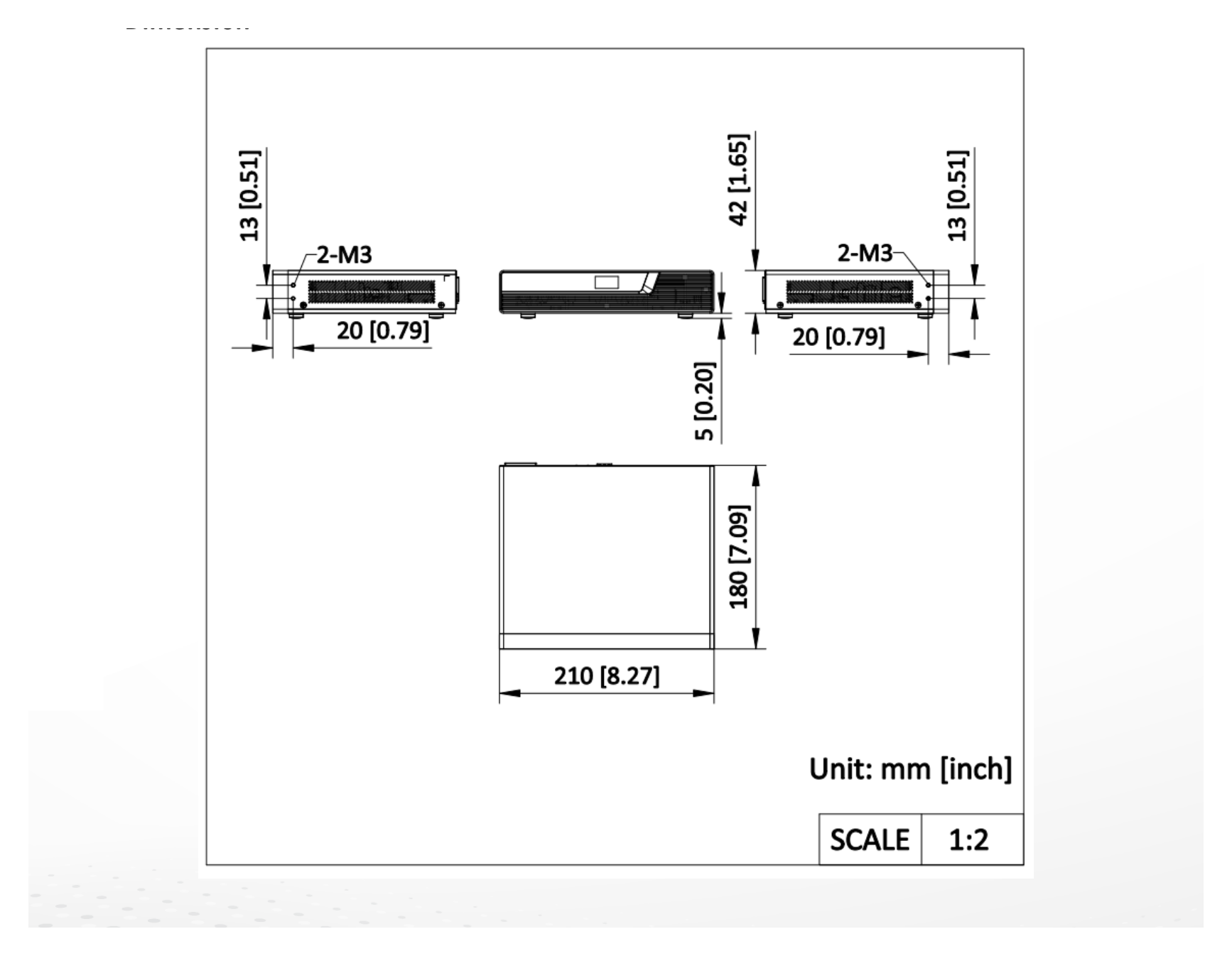

尺寸	210 mm × 42 mm × 180 mm ( 8.27 inch × 1.65 inch × 7.09 inch)
Installation Method	Magnetic installation (optional), planar arrangement, rack installation 1 × DS-C80N-01HO, 1 × regulatory compliance and safety information manual, 1 × power cord, 1 × mounting bracket, 1 × connecting bracket
功耗	≤ 30 W Power supply: 110 VAC to 240 VAC, 0.7 A POE: 802.3at protocol
Video Output Interface Type	HDMI 1.4
Video Output Interfaces	1
Max. Video Output Resolution	1080P Single port load 2600000, Width 288 - 3840, Height 288 - 2160; 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, UXGA (1600 × 1200@60 Hz), WUXGA (1920 × 1200@60 Hz), SXGA3 (1400 × 1050@60 Hz), WSXGA (1680 × 1050@60 Hz), XGA (1024 × 768@60 Hz), SXGA (1280 × 1024@60 Hz), 1280 × 720 @60 Hz, 1280 × 720@50
Audio Input Interfaces	1
Audio Input Interface Type	3.5 mm coaxial audio jack
Audio Channel	Dual audio channel
Audio Output Interfaces	1
Audio Output Interface Type	3.5 mm coaxial audio jack
Audio Talk	Use the audio input port and audio output port
音訊取樣率	24 bit, 48 KHz
Video Decoding Format	H.264, H.265, Smart 264, Smart 265
Video Decoding Channels	16 1 channel of 32 MP, 2 channels of 16 MP, 4 channels of 8 MP, 5 channels of 6 MP or 5 MP, 8 channels of 4 MP, 16 channel of 1080p
Audio Decoding Format	G711A, G711U, G722, G722.1, AAC_LC
Audio Decoding Channels	1
