| System | ROM 4 GB |
|---|
| RAM | DDR3:512 M |
|---|
| CPU | 800 MHz |
|---|
| 屏幕尺寸 | 4.3 inch Operation Capacitive touch screen |
|---|
| Display | method |
|---|
| 類型 | LCD |
|---|
| 解像度 | 480 × 272 |
|---|
| 鏡頭 | 2 |
|---|
| Video | Video PAL (Default) and NTSC standard |
|---|
| 焦距 | 4 mm |
|---|
| 光圈 | F 2.0 |
|---|
| HOV | HFOV：75.5°； VFOV：41.5°； DFOV：87° |
|---|
| compression | G.711U standard |
|---|
| 音訊輸入 | Built-in omnidirectional microphone |
|---|
| 音訊輸出 | Built-in loudspeaker |
|---|
| 音訊質素 | Noise suppression and echo cancellation Volume Adjust via device or client adjustment |
|---|
| 電源輸出 | 1W SDK, SIP, RTSP, ISAPI, ISUP5.0 |
|---|
| Network | Wired Support |
|---|
| WiFi | Support, 2.4 G, 802.11b/g/n 1 RJ-45, 10/100 M self-adaptive |
|---|
| 鎖控 | 1 |
|---|
| 接口 | Exit button 1 Door contact input |
|---|
| 防拆 | 1 |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
|---|
| Wiegand | 1 Wiegand(Hik 26bit,Hik 34bit) |
|---|
| USB | 1 |
|---|
| 人臉容量 | 1,500 Fingerprint 3,000 |
|---|
| 容量 | capacity |
|---|
| 卡容量 | 3,000 |
|---|
| 記錄容量 | 150,000 Face |
|---|
| recognition | 0.3 to 1.5 m distance Face |
|---|
| 卡類型 | M1 card Card reading 13.56 MHz frequency Card reading 0 to 5 cm (Normal Card); 0 to 3 cm (Card with Different Shapes) distance Card reading ＜ 1s duration Supplement IR light light |
|---|
| 供電 | 12 VDC, 1 A (power adapter included) Working -10 °C to 40 °C (14 °F to 104 °F) temperature Working 0 to 90% (No condensing) humidity |
|---|

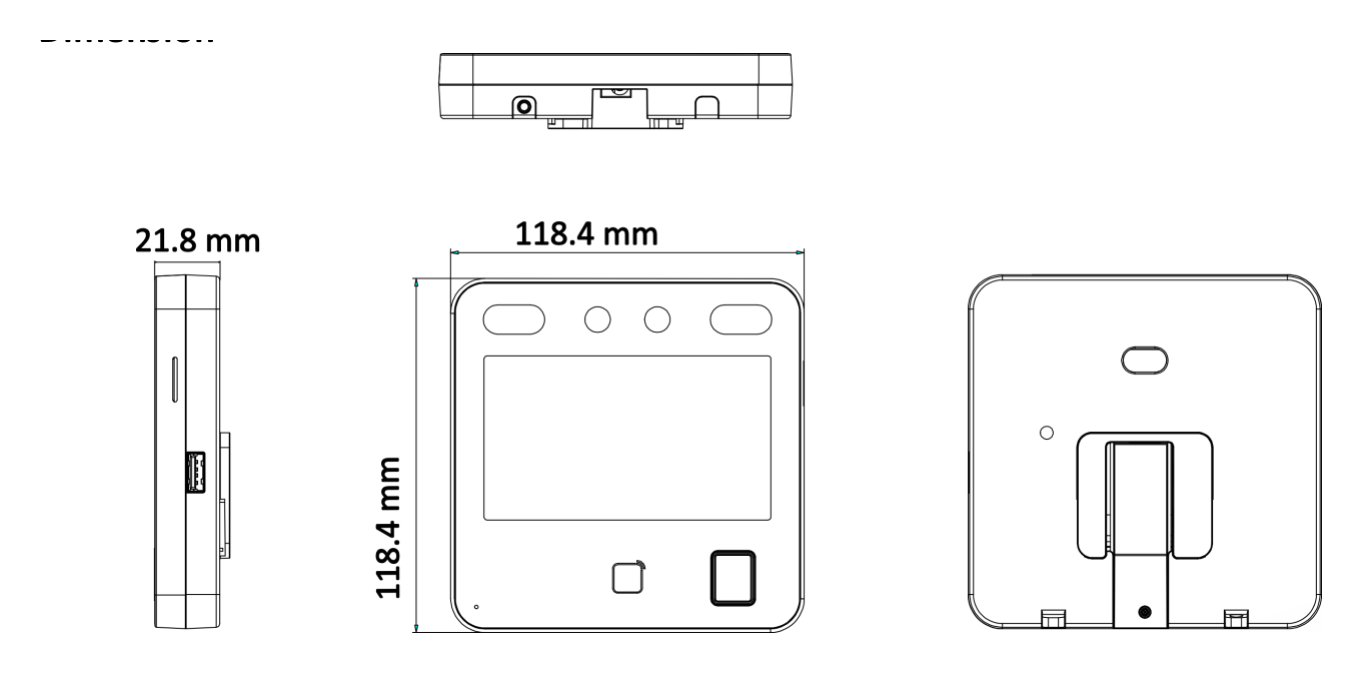

| 尺寸 | 118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86") |
|---|
| 安裝 | Wall mounting, base mounting Gross weight: 0.71 kg (1.57 lb) Weight Net weight: 0.23 kg (0.51 lb) Application Indoor English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Brazilian Language Portuguese, Japanese, Korean, Chinese Traditional, French, Turkish, Kazakh and Uzbek. |
|---|
| 管理平台 | Hik-ProConnect and HikCentral Professional |
|---|
| Live view | Support |
|---|
| Two-way | Support Multi-factor |
|---|
| authenticatio | Support M1 card Support encryption Face Support anti-spoofing |
|---|
| First person in | Support |
|---|
| Audio prompt | Support Time |
|---|
| synchronizatio | Support |
|---|
