HIKVISION DS-TMC200-E1 門禁系統安裝・保養

Name: HIKVISION DS-TMC200-E1 2MP ANPR Kit
Brand: Hikvision
SKU: DS-TMC200-E1

產品簡介

Hikvision DS-TMC200-E1 為2MP ANPR Kit，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-TMC200-E1 香港價格連安裝報價。

鏡頭類型：3.1 to 6 mm
光圈：3.1 to 6 mm：F1.9 3.1 to 6 mm, horizontal FoV: 105.5° to 51.4
對焦：Auto,Vari-focal lens, motor-driven lens
補光類型：Warm White Light
Band/Color Temperature：Warm White Light 3000 K Video: 3.1 mm to 6 mm: 10 m Vehicle

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝門禁、裝考勤、裝打卡系統工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

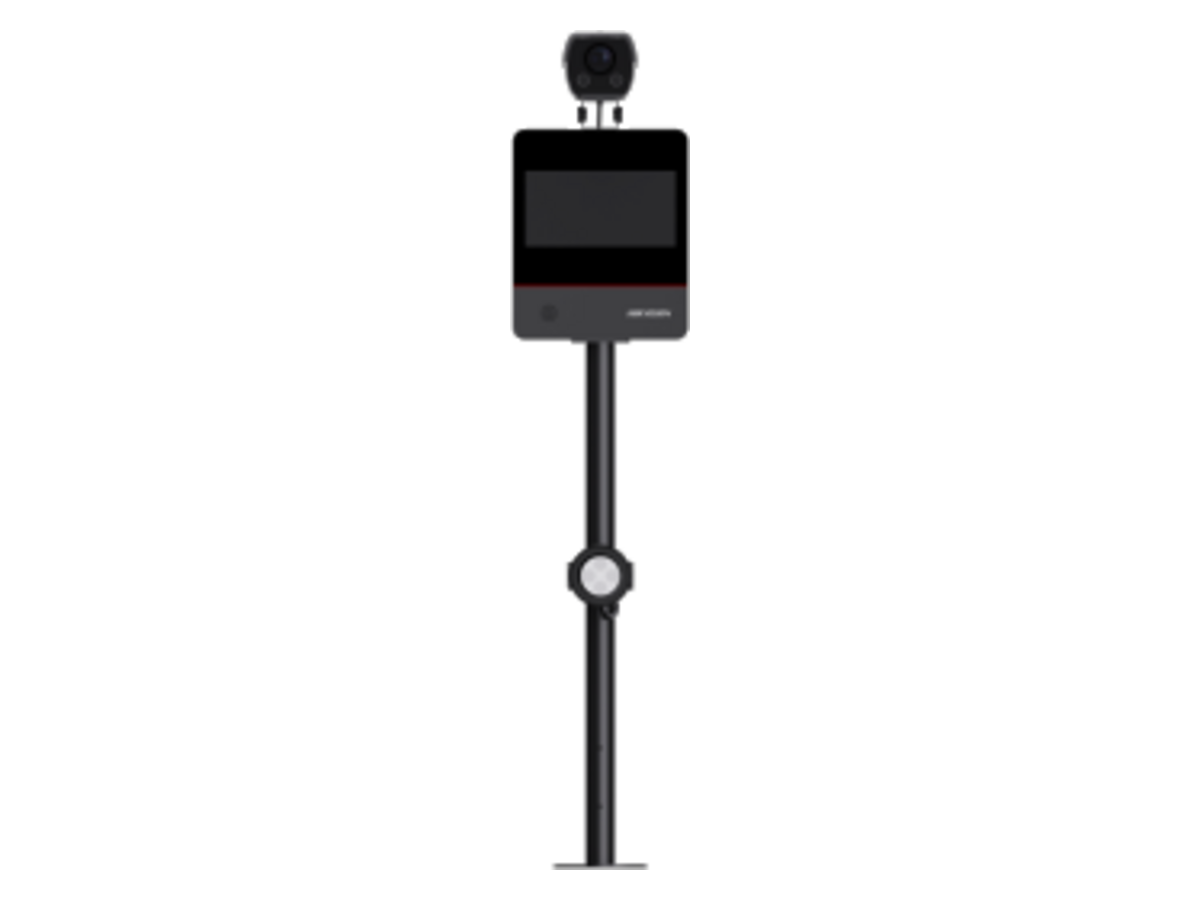

DS-TMC200-E1 Hikvision 2MP ANPR Kit 產品圖片

詳細規格

鏡頭類型	3.1 to 6 mm
光圈	3.1 to 6 mm：F1.9 3.1 to 6 mm, horizontal FoV: 105.5° to 51.4°, vertical FoV: 55.9° to 28.9°, diagonal FoV: 126.9° to 59.2°
對焦	Auto,Vari-focal lens, motor-driven lens
補光類型	Warm White Light
Band/Color Temperature	Warm White Light 3000 K Video: 3.1 mm to 6 mm: 10 m Vehicle License Plate: 3.1 mm to 6 mm: 5 m
Trigger Type	Video Trigger, I/O Trigger and Dual I/O Trigger
Picture Type	Scene Picture, Scene Picture + Close-up Picture
Scene Mode	Vehicle Priority, License Plate & Vehicle, Motorcycle Scene
Capture Type	Continue Light Mode
Image Format	JPEG
Capture Resolution	1920 × 1200
License Plate Recognition	Forward, Backward, Bidirection
Fake Plate Filter	Yes ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
Capture Picture Overlay	Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type
WDR	140 dB
主碼流	50 Hz: 25 fps (19201200P、19201080P、1280720P、704576、352*288)
子碼流	50 Hz: 25 fps (19201080P、1280720P、704576、352288) Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are selectable.
圖像參數切換	Yes
WDR Switch	On, Time, Brightness
Frame Rate	25 fps (P)
Barrier Gate Control Mode	By Camera/Platform Enable/Disable Yes
Relay Output	1-ch relay output None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
Allowlist and Blocklist	Up to 100,000 allowlist and blocklist totally
ROI	8 regions respectively for main stream and sub-stream, 6 levels for each region. Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Low profile
H.264 類型	Medium profile High Profile
視頻碼率	32 Kbps to 16 Mbps
Bit Rate Type	Constant, Variable
SVC 分級編碼	MJPEG, H.265 and H.264 encoding
網絡儲存	health detection are supported. TCP/IP, HTTP, SRTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTSP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
API	Open Network Video Interface, ISAPI, SDK, ISUP, OTAP, Guarding Vision Platform
客戶端	Hik-Connect, Hik-Central Pro, PMS Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS,
Sensor Type	1/3" Progressive Scan CMOS
最大解像度	1920 × 1200 Color: 0.04Lux@(F2.0, AGC ON) B/W: 0.02Lux@(F2.0, AGC ON)
Shutter	1/30 s to 1/100,000 s
日夜模式	Supported IR cut filter Blue glass module to reduce ghost phenomenon
Pixel Pitch	P4
解像度	64*32
Screen Type	LED
Display Color	Red,Green,Yellow
Number of Module	1
Viewing Angle	110° (H) / 110° (V)
Color Temperature	3000k to 6000k
Brightness Uniformity	≥95%
Color Uniformity	≥95%
Luminance	1000cd/m²
Scanning Mode	1/8Scan
Communication Mode	RS485, TCP
Audio	1 input (line in), 1 output (line out)
警報輸入	2-ch triggered inputs
警報輸出	1-ch Relayout
網絡接口	1 RJ45 10M/100M self-adaptive Ethernet port Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98%
Vehicle Type Recognition	Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fi
ANPR Supported Country/Region	America: Canada, Mexico, Panama, Costa Rica, El Salvador, Guatemala, Trinidad and Tobago, Dominican Republic, Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Bolivia, Venezuela, Suriname Europe: Italy, Spain, Portugal, Greece, Croatia, Slovenia, Montenegro, Albania, the Republic of North Macedonia, Serbia, Bosnia and Herzegovina, Bulgaria, Romania, Malta, San Marino, Andorra,
Working Temperature &	Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity	Humidity: 90% or less (non-condensing)
供電	AC 110-230V, 50Hz
重量	7.435 kg (16.39 lb.)
Weight (with Package)	15.405 kg (33.96 lb.)
Dimensions (with Package)	835 × 597 × 240 mm (32.87× 23.5 × 9.45 inch) Temperature: -20°C to 70°C (-4°F to 158°F) Humidity: 95% (non-condensing)
Startup and Operating	Temperature: -20°C to 60°C (-4°F to 140°F)
Conditions	Humidity: 95% (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Number of Light Beads	4
Irritation Angle	60°
