| 按鈕 | 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button |
|---|
| External Power Supply | 12VDC/2.5A |
|---|
| Dimensions (W X D X H) | 9.0 x 6.3 x 1.5 in. (229 x 160 x 37mm) |
|---|

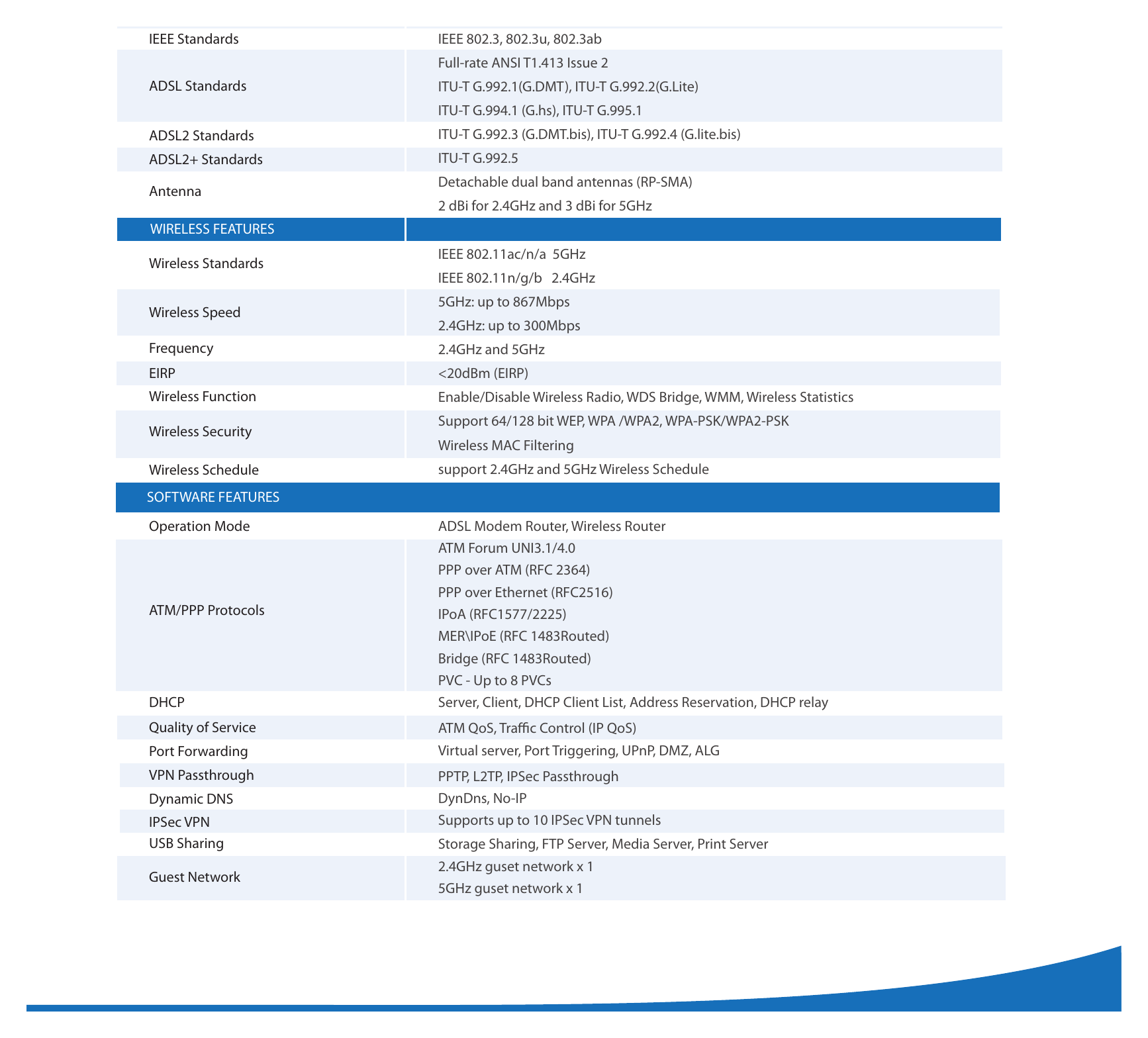

| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab Full-rate ANSI T1.413 Issue 2 |
|---|
| ADSL Standards | ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
|---|
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
|---|
| ADSL2+ Standards | ITU-T G.992.5 Detachable dual band antennas (RP-SMA) Antenna 2 dBi for 2.4GHz and 3 dBi for 5GHz WIRELESS FEATURES IEEE 802.11ac/n/a 5GHz Wireless Standards IEEE 802.11n/g/b 2.4GHz 5GHz: up to 867Mbps Wireless Speed 2.4GHz: up to 300Mbps |
|---|
| Frequency | 2.4GHz and 5GHz |
|---|
| EIRP | <20dBm (EIRP) |
|---|
| Wireless Function | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless Security Wireless MAC Filtering |
|---|
| Wireless Schedule | support 2.4GHz and 5GHz Wireless Schedule SOFTWARE FEATURES |
|---|
| Operation Mode | ADSL Modem Router, Wireless Router ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) |
|---|
| ATM/PPP Protocols | IPoA (RFC1577/2225) MER\IPoE (RFC 1483Routed) Bridge (RFC 1483Routed) PVC - Up to 8 PVCs |
|---|
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP relay |
|---|
| Quality of Service | ATM QoS, Traffic Control (IP QoS) |
|---|
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, ALG |
|---|
| VPN Passthrough | PPTP, L2TP, IPSec Passthrough |
|---|
| Dynamic DNS | DynDns, No-IP |
|---|
| IPSec VPN | Supports up to 10 IPSec VPN tunnels |
|---|
| USB Sharing | Storage Sharing, FTP Server, Media Server, Print Server 2.4GHz guset network x 1 Guest Network 5GHz guset network x 1 www.tp-link.com Specifications： NAT Firewall, Access Control, MAC/IP/URL Filtering, Denial of Service (DoS), Security SYN Flooding, Ping of Death, IP and MAC Address Binding Web Based Configuration(HTTP), Remote management, Command Line Interface, Management SSL for TR-069, SNMP v1 |
|---|
| IPv6 | IPv6 and IPv4 dual stack Parental Control Network Address Translation (NAT); Advanced Features Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP V1/V2/V3 OTHERS |
|---|
| Certification | CE, FCC, RCM, RoHS AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router External Splitter RJ-11 Telephone Cable |
|---|
| Package Content | RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
|---|
| System Requirements | Windows 8/7/Vista/XP, Mac OS or Linux-based operating system Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing www.tp-link.com Diagram: 2.4GHz 5GHz TV SET |
|---|
| AC1200 Wireless Dual Band | Set-Top Box & IPTV Gigabit ADSL2+ Modem Router Archer D5 USB PORT SHARING |
|---|
| Printing or scanning files | Printer or Hard drive Sharing files / photos / music / videos /Flash disk connection |
|---|
| Package: | Related Products: - AC1200 Wireless Dual Band Gigabit ADSL2+ Modem Router - AC1200 Wireless Dual Band USB Adapter |
|---|
| Archer D5 | Archer T4U |
|---|
| - External splitter (Optional) | - N900 Wireless Dual Band PCI Express Adapter |
|---|
| - RJ-11 Telephone Cable | TL-WDN4800 - RJ-45 Ethernet Cable - Power Adapter - Resource CD - Quick Installation Guide Some USB hard drive that works at a high power without using any external power adapter might not be supported. www.tp-link.com |
|---|
