| www.tp-link.com | names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd. |
|---|
| Standards | EAP Controller Software |
|---|
| IEEE 802.11b/g/n | – simple and scalable business Wi-Fi management The EAP Controller Software enables administrators to manage hundreds of EAPs easily |
|---|
| Functionality | from any PC on the network. Includes such administrative features as centralized |
|---|
| Multi-SSID | configuration, real-time monitoring, and graphical analysis of network traffic. Load Balance Wireless Schedule QoS (WMM) Automatic Channel Assignment Transmission Power Adjustment Captive Portal Authentication Wireless MAC Address Filtering Isolation between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA/WPA2-PSK, WPA/WPA2- Enterprise Encryption - Free controller software, |
|---|
| Hardware | - Easy-to-use, no special training necessary 1 Fast Ethernet Port - Upload floor plans for a more intuitive Wi-Fi management 2*3dBi Internal Antennas - Advanced security features including Captive Portal, Rogue AP Detection Dimensions: 7.1*7.1*1.9 in. (180*180*47.5mm) 24 / 7 Global technical support |
|---|
| Details:http://www.tplink.com/en/ | Real-time monitoring of your wireless network Support/ German/Austrian/Swiss users are - Directly view traffic on any individual AP on the network |
|---|
| not included | - Graphical activity of clients connected to the network - Visual analytics of overall network usage and traffic distribution Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product |
|---|
| EAP | EAP |
|---|
| Switch | Switch EAP EAP |
|---|
| CAMPUS | OFFICE HOTEL MALL Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product |
|---|
| Gigabit Access Point | Access Point MAIN DESIGN |
|---|
| LAN Interface | Gigabit Ethernet (RJ-45) Port *1 10/100Mbps Ethernet (RJ-45) Port *1 |
|---|
| Wireless Frequency | 2.4GHz |
|---|
| Wi-Fi Standards | IEEE 802.11b/g/n |
|---|
| Maximum Data Rate | Up to 300 Mbps |
|---|
| Internal Antennas | 2* 4dBi 2* 3dBi |
|---|
| Max Rf Transmit Power | 26dBm |
|---|
| Power over Ethernet (PoE) | IEEE 802.3af 24V Passive PoE CENTRALIZED MANAGEMENT |
|---|
| Cluster | - |
|---|
| Max APs in One Cluster | 24 - EAP Controller Softaware SECURITY Captive Portal Authentication Wireless MAC Address Filtering Wireless Isolation between Clients SSID to VLAN Mapping Rogue AP Detection |
|---|
| WEP Encryption | 64/128/152-bit WPA/WPA2-Personal Encryption WPA/WPA2-Enterprise Encryption 802.1X Support WIRELESS FUNCTION |
|---|
| Multiple SSIDs | 8 Enable/Disable Wireless Radio Automatic Channel Assignment |
|---|
| Transmit Power Control | Adjust Transmit Power on dBm QoS(WMM) Load Balance Wireless Schedule |
|---|
| Wireless Statistics | Based on SSID/AP/Client SUPPORTED DATA RATES 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps Maximum transmit power is limited by local regulatory settings Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product |
|---|
| Web-based Management | HTTP/HTTPS Telnet |
|---|
| CLI (Command Line Interface) | - |
|---|
| SNMP | v1,v2c |
|---|
| System Logging | Local/Remote Syslog Email Alerts PHYSICAL & ENVIRONMENT |
|---|
| 供電 | PoE or External 12VDC / 1A Power Supply 24VDC / 1.0A Passive PoE Supply |
|---|
| Maximum Power Consumption | 4.4 watts 7.7 watts |
|---|
| Console Port | RJ45*1 - |
|---|
| Physical Security Lock | Kensington Lock Slot |
|---|
| 按鈕 | Reset Button, Power On/Off Button Reset Button Watch Dog |
|---|
| Dimensions (W * D * H) | 7.1 x 7.1 x 1.9 in. (180*180*47.5mm) |
|---|

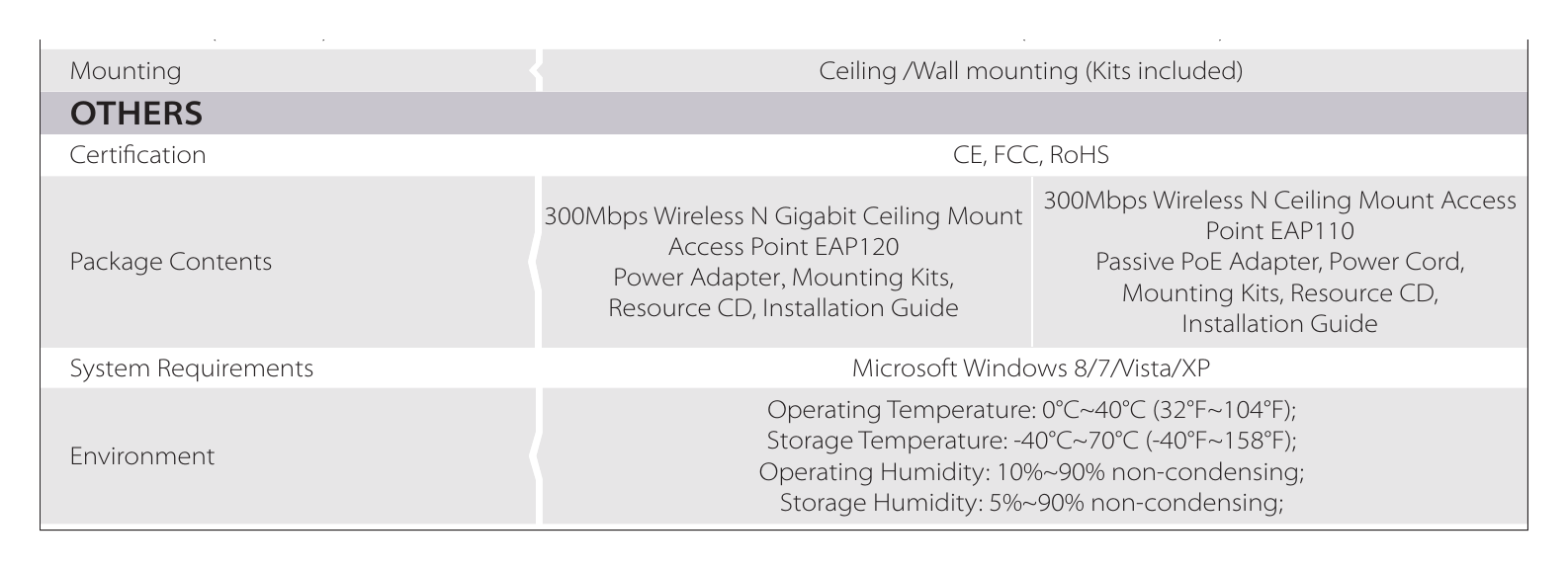

| Mounting | Ceiling /Wall mounting (Kits included) OTHERS |
|---|
| Certification | CE, FCC, RoHS 300Mbps Wireless N Ceiling Mount Access 300Mbps Wireless N Gigabit Ceiling Mount Point EAP110 Access Point EAP120 |
|---|
| Package Contents | Passive PoE Adapter, Power Cord, Power Adapter, Mounting Kits, Mounting Kits, Resource CD, Resource CD, Installation Guide Installation Guide |
|---|
| System Requirements | Microsoft Windows 8/7/Vista/XP Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~70°C (-40°F~158°F); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing; Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product |
|---|
