tp-link MC112CS-V2.0 為Media Converters & Chassis，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 MC112CS-V2.0 香港價格連安裝報價。
| 工作溫度 | 0°C~40°C (32°F~104°F) |
|---|---|
| 儲存溫度 | -40°C~70°C (-40°F~158°F) |
| 工作濕度 | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing 19.0 x 14.1 x 3.4 in. (482 x 358 x 86 mm) Dimensions (WX DX H) Standard 19-Inch, 2U height |
| 重量 | 8Kg |
| Page 2 | www.tp-link.com Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports Auto MDI/MDIX for TX port Provides switch configuration of Force /Auto transfer mode for FX port Extends fiber distance up to 0.55km Easy-to-view LED indicators provide status to monitor network activity easily |
| Standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x Full Duplex Flow Control (IEEE 802.3x) |
| Basic Function | Extends fiber distance up to 0.55km using 50/125um fiber, 0.22km using 62.5/125um fiber |
| Wave Length | 850nm 1 1000Mbps SC port 1 1000Mbps RJ45 port (Auto MDI/MDIX) 1000BASE-T: UTP category 5, 5e cable (maximum 100m) |
| Network Media | EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-FX: Multi-mode Fiber |
| LED Indicators | PWR, LINK, RX |
| Certifications | FCC, CE |
| Dimensions (W x D x H) | 3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm) |
| Environment | Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: | 5%~90% non-condensing |
| 供電 | External Power Adapter, 9V/0.6A or 5V/1A |
| Page 3 | www.tp-link.com Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports Auto MDI/MDIX for TX port Provides switch configuration of Force /Auto transfer mode for FX port Extends fiber distance up to 15km Easy-to-view LED indicators provide status to monitor network activity easily |
| Page 4 | www.tp-link.com Works at 1000Mbps in Full-Duplex mode for both TX port and FX port Supports Auto MDI/MDIX for TX port Provides switch configuration of Force /Auto transfer mode for FX port FX port support hot-swappable Extends fiber distance up to 0.55 km for multi-mode fiber and 10 km for single-mode fiber Easy-to-view LED indicators provide status to monitor network activity easily |
| Page 5 | www.tp-link.com Auto-negotiation of 10/100Mbps and Auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely Extend fiber distance up to 2km Easy-to-view LED indicators provide status to monitor network activity easily |
| Page 6 | www.tp-link.com Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely Extend fiber distance up to 20km Easy-to-view LED indicators provide status to monitor network activity easily |
| Page 7 | www.tp-link.com Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely Adopts WDM technology, transmitting and receiving data on one single fiber Extend fiber distance up to 20km Easy-to-view LED indicators provide statu |
| TX: | 1550nm |
| Page 8 | www.tp-link.com Auto negotiation of 10/100Mbps and Auto MDI/MDIX for TX port Provide switch configuration of Half-Duplex / Full-Duplex transfer mode for TX port Link Fault Pass Through and Far End Fault minimize the loss caused by link failure timely Adopts WDM technology, transmitting and receiving data on one single fiber Extend fiber distance up to 20km Easy-to-view LED indicators provide statu |
| Page 9 | www.tp-link.com |
| 類型 | Connector Transmission Distance Transmission Media Wave Length |
| MC100CM | RJ45--SC 2km Multi-mode Fiber,TP 850nm |
| MC110CS | RJ45--SC 20km Single-mode Fiber,TP 1310nm |
| MC111CS | RJ45--SC 20km Single-mode Fiber,TP 1550nmTX/1310nmRX |
| MC112CS | RJ45--SC 20km Single-mode Fiber,TP 1310nmTX/1550nmRX More information of the 1000Mbps series Media Converter |
| Model NO. | Interface Transmission Distance Transmission Media Wave Length 0.55km(50/125um), |
| MC200CM | RJ45--SC Multi-mode Fiber,TP 850nm 0.22km(62.5/125um) |
| MC210CS | RJ45--SC 15km Single-mode Fiber,TP 1310nm |
| MC220L | RJ45--SFP 0.55km /10km Multi/Single-mode Fiber, TP Depend on used SFP module |
| Page 10 | www.tp-link.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

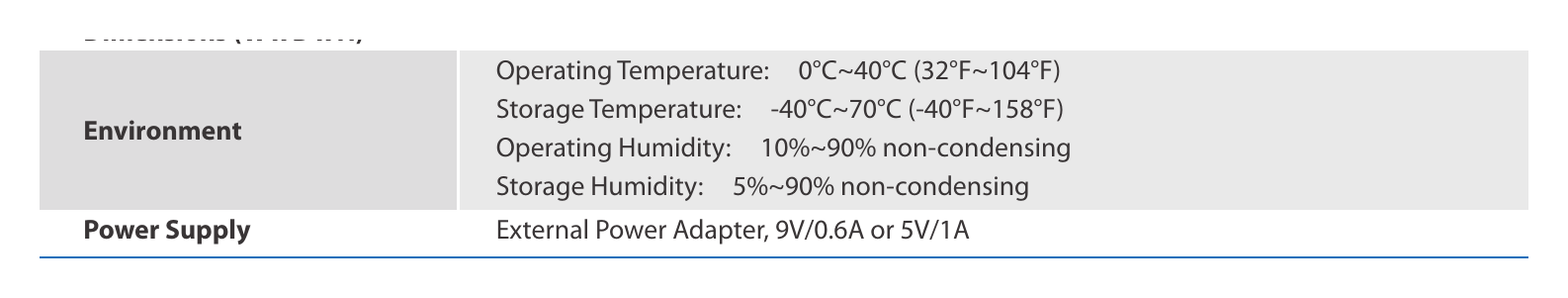

詳見圖示｜Unit: mm
MC112CS-V2.0 tp-link Media Converters & Chassis亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，MC112CS-V2.0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 官方 App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：儲存溫度方面，MC112CS-V2.0 係 -40°C~70°C (-40°F~158°F)，TAPO-D230S1 係 -40℃ ~60℃；工作濕度方面，MC112CS-V2.0 係 10%~90% non-condensing，TAPO-D230S1 係 10%~90% RH, Non-condensing。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 TAPO-D230S1 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 MC112CS-V2.0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
