| 影像感測器 | 1/3” Progressive Scan CMOS Sensor Focal Length: 3.99 mm±5% |
|---|
| 鏡頭 | Aperture: F2.2±10% Field of View: 85.5° (Diagonal), 73.5° (Horizontal), 41° (Vertical) 850 nm IR LED (98 ft / 29.9 m) Night Vision Color Night Vision |
|---|
| 日夜模式 | IR-Cut Filter with Auto-Switching |
|---|
| Lighting | / 1× RESET Button Interface & Button 1× microSD Card Slot (Up to 512 GB) |
|---|
| Hub Compatibility | / |
|---|
| Maximum Resolution | 2304×1296 px |
|---|
| Frame Rate | 30 fps |
|---|
| Video & Audio | Digital Zoom None |
|---|
| 視頻壓縮 | H.264 |
|---|
| Live View | Yes 3DNR Image Enhancement WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 90 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Camera (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
|---|
| Sensor | / Motion Detection |
|---|
| AI Detection | Person Detection Camera Tampering Yes Activity Zones *Only works with Motion Detection. System Notification Output Notification System Notification with Snapshot (Tapo Care Services) |
|---|
| Network Connectivity | Connect via Wi-Fi |
|---|
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|---|
| Network | 11b: 11 Mbps |
|---|
| Transmission Rate | 11g: 54 Mbps 11n: 72.2 Mbps |
|---|
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP Max. Distance Between Hub and Camera/Doorbell |
|---|
| Ethernet Port | / |
|---|
| RTSP | Yes |
|---|
| ONVIF | Yes On-Device Machine Learning |
|---|
| 安全 | Security 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3 |
|---|
| Power Source | 9 V DC Power Adapter |
|---|
| Input Voltage | 100-240 V, 50/60 Hz |
|---|
| Output Voltage | 9 V, 0.85 A (DC Power) Inside Ø: 2.1 mm |
|---|
| 供電 | DC Power Connector Size Outside Ø: 5.5 mm 3 m* Power Cord Length *Power cord length may vary from region. |
|---|
| Typical Power Consumption | 2.3 W Maximum Power Consumption 7.2 W |
|---|
| Certifications | CE, FCC, RoHS, RCM, JRF, VCCI, KC, IC, NCC, BSMI, WWA, NTRA |
|---|
| General | Smart Integration Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP65 Ceiling-Mounted |
|---|
| Mounting Options | Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
|---|
| 工作溫度 | -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F ) |
|---|
| 儲存溫度 | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F) |
|---|
| 工作濕度 | 10% ~ 90% RH, Non-condensing |
|---|
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
|---|
| Charging Temperature | \ Mounting Screw Size Bracket Screw Size |
|---|

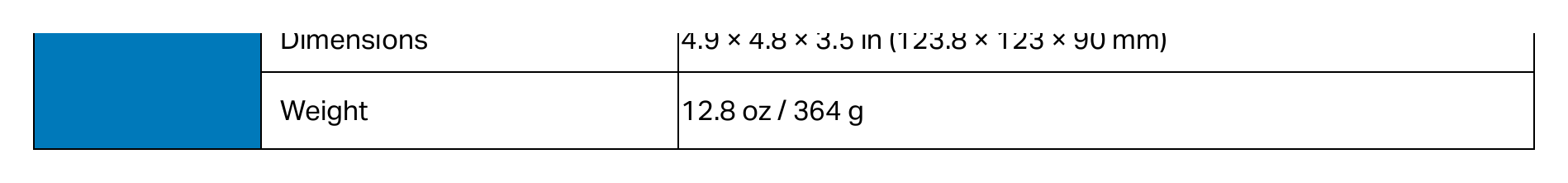

| 尺寸 | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
|---|
| 重量 | 12.8 oz / 364 g Tapo C510W Camera/Tapo C51A Camera Power Adapter Mounting Anchors Mounting Screws |
|---|
