| 影像感測器 | 1/3” Progressive Scan CMOS Starlight Sensor Focal Length: 3.2 mm |
|---|
| 鏡頭 | Aperture: F1.6 Field of View: 112° (Diagonal), 95° (Horizontal), 53° (Vertical) 850 nm IR LED (98 ft / 29.9 m) Night Vision Starlight Color Night Vision |
|---|
| 日夜模式 | IR-Cut Filter with Auto-Switching |
|---|
| Lighting | 2× Built-in Spotlights 1× Ethernet Port |
|---|
| Interface & Button | 1× RESET Button 1× microSD Card Slot (Up to 512 GB) |
|---|
| Hub Compatibility | / |
|---|
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
|---|
| Frame Rate | 15/20/25/30 fps (Default 15fps) |
|---|
| Video & Audio | Digital Zoom 12x |
|---|
| 視頻壓縮 | H.264 |
|---|
| Live View | Yes 3DNR Image Enhancement WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 93 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Camera (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
|---|
| Sensor | / Motion Detection Person Detection Pet Detection AI Detection |
|---|
| Detection & | Vehicle Detection |
|---|
| Notification | Line-Crossing Detection Camera Tampering Yes Activity Zones *Only works with Motion Detection. System Notification Output Notification System Notification with Snapshot (Tapo Care Services) |
|---|
| Network Connectivity | Connect via Wi-Fi or Ethernet |
|---|
| Network | Wireless Connectivity IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
|---|
| Wireless Communication | Bluetooth (for setup only) |
|---|
| Technology | Wi-Fi 11b: 11 Mbps 11g: 54 Mbps Transmission Rate 11n: 72.2 Mbps 11ax: 143.4 Mbps |
|---|
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP Max. Distance Between Hub |
|---|
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
|---|
| RTSP | Yes |
|---|
| ONVIF | Yes On-Device Machine Learning |
|---|
| 安全 | Security 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK/WPA3 |
|---|
| Power Source | 9V DC Power Adapter |
|---|
| Input Voltage | 100-240 V, 50/60 Hz |
|---|
| Output Voltage | 9 V, 0.85 A (DC Power) Inside Ø: 2.1 mm |
|---|
| 供電 | DC Power Connector Size Outside Ø: 5.5 mm |
|---|
| Power Cord Length | 3m |
|---|
| Typical Power Consumption | 3.75 W Maximum Power Consumption 7.65 W |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP66 Ceiling-Mounted |
|---|
| Mounting Options | Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
|---|
| 工作溫度 | -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F ) |
|---|
| 儲存溫度 | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F) |
|---|
| 工作濕度 | 10% ~ 90% RH, Non-condensing |
|---|
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
|---|
| Charging Temperature | / Mounting Screw Size Bracket Screw Size |
|---|
| 尺寸 | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
|---|

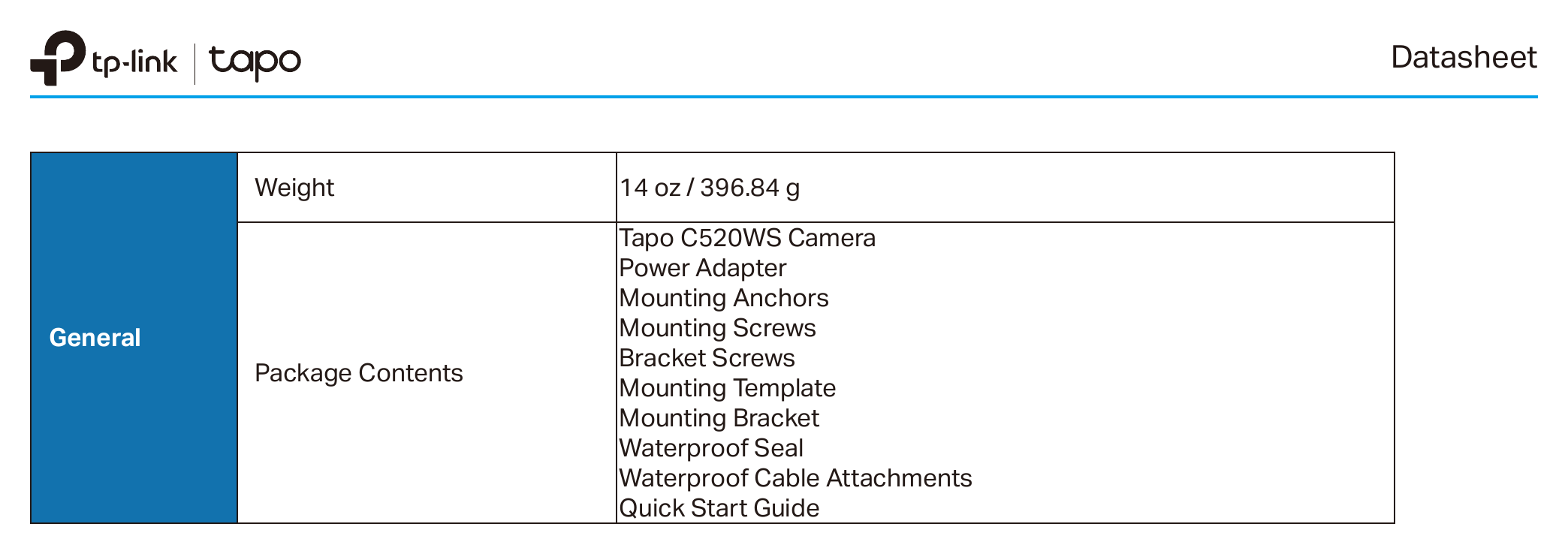

| 重量 | 14 oz / 396.84 g Tapo C520WS Camera Power Adapter Mounting Anchors |
|---|
| General | Mounting Screws Bracket Screws Package Contents Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide |
|---|
