TP-LINK TD-W8950ND-V2 CCTV攝影機安裝・保養

Name: TP-LINK TD-W8950ND-V2 Modem Router
Brand: tp-link
SKU: TD-W8950ND-V2

產品簡介

tp-link TD-W8950ND-V2 為Modem Router，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 TD-W8950ND-V2 香港價格連安裝報價。

接口：3 10/100Mbps RJ45 LAN Ports 1 RJ11 Port 1 Power On/Off Switc
按鈕：1 WPS Button 1 Wi-Fi On/Off Button
External Power Supply：9VDC/0.85A
IEEE Standards：IEEE 802.3, 802.3u Full-rate ANSI T1.413 Issue 2 ITU-T G.992
ADSL2+ Standards：ITU-T G.992.5

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

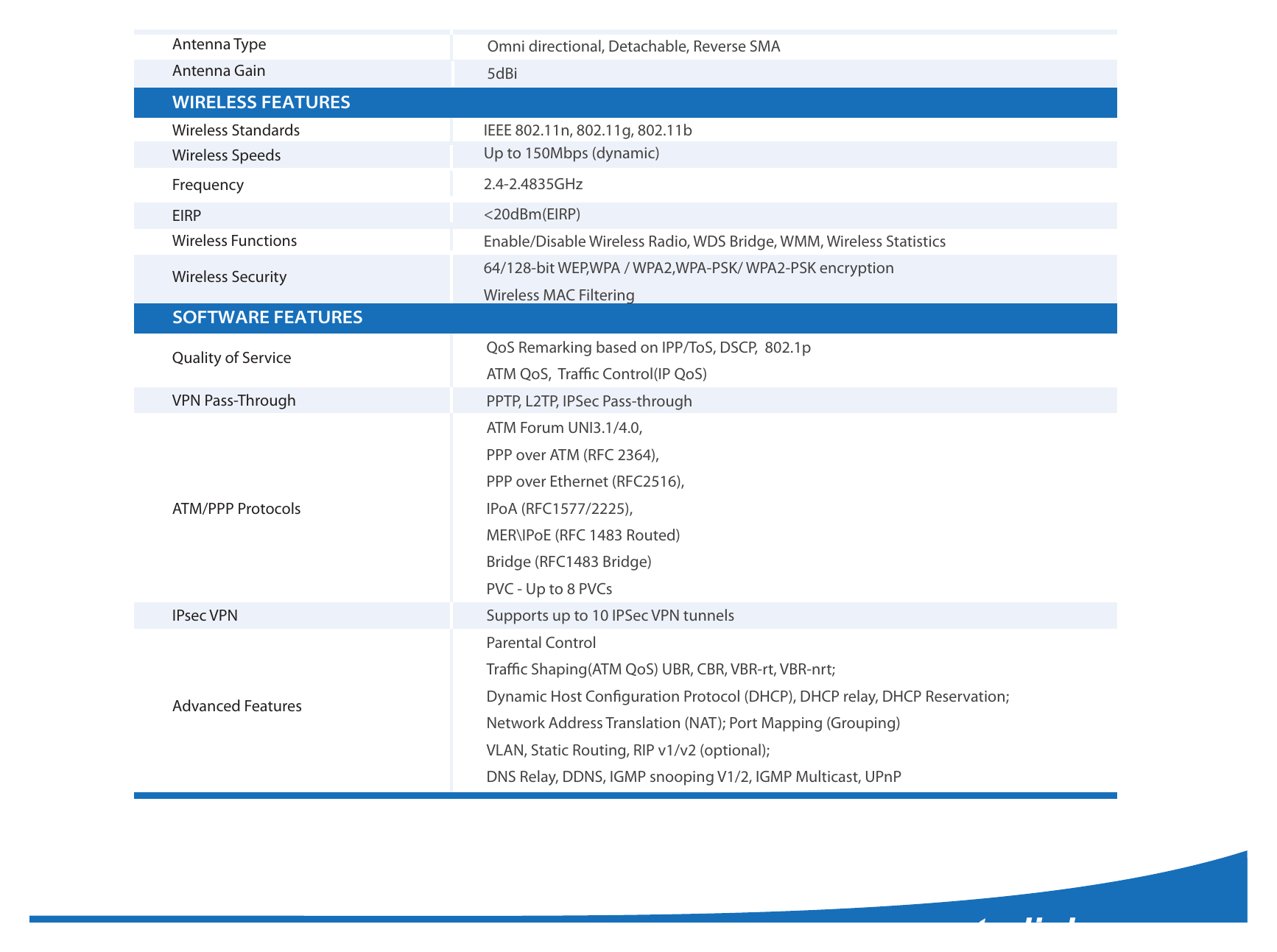

詳細規格

接口	3 10/100Mbps RJ45 LAN Ports 1 RJ11 Port 1 Power On/Off Switch
按鈕	1 WPS Button 1 Wi-Fi On/Off Button
External Power Supply	9VDC/0.85A
IEEE Standards	IEEE 802.3, 802.3u Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ADSL Standards ITU-T G.992.2(G.Lite) ITU-T G.994.1 ITU-T G.992.3 (G.dmt.bis) ADSL2 Standards ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	7.1 x 4.9 x 1.4 in. (181 x 125 x 36mm)
Antenna Type	Omni directional, Detachable, Reverse SMA
天線增益	5dBi WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, 802.11g, 802.11b
Wireless Speeds	Up to 150Mbps (dynamic)
Frequency	2.4-2.4835GHz
EIRP	<20dBm(EIRP)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption Wireless Security Wireless MAC Filtering SOFTWARE FEATURES QoS Remarking based on IPP/ToS, DSCP, 802.1p Quality of Service ATM QoS, Traffic Control(IP QoS)
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516),
ATM/PPP Protocols	IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC - Up to 8 PVCs
IPsec VPN	Supports up to 10 IPSec VPN tunnels Parental Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay, DHCP Reservation; Advanced Features Network Address Translation (NAT); Port Mapping (Grouping) VLAN, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP www.tp-link.com Specifications： SOFTWARE F
IPv6	IPv6 and IPv4 dual stack NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Security Service(DoS), SYN Flooding, Ping of Death Web Based Configuration(HTTP), Remote management, Telnet management, Command
Management	Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools OTHERS
Certification	CE, FCC, RoHS Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7, Windows 8, MAC® OS, System Requirements NetWare®, UNIX® or Linux. Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram:
HOME	BRANCH OFFICE Encrypted IPSec VPN Tunnel
TD-W8950ND	TD-W8950ND 300Mbps Wireless N 3 300Mbps Wireless N
ADSL2+ Modem Router	ADSL2+ Modem Router Internet cry ted IPS ted ryp
TL-WN721N	TL-WN751ND TL-WN723N TL-WN781ND 300Mbps Wireless 300Mbps Wireless 300Mbps Mini Wireless 300Mbps Wireless
N USB Adapter	N PCI Adapter N USB Adapter N PCI Adapter TL-ER6120 VPN GATEWAY CORPORATE HEADQUARTER www.tp-link.com Diagram:
Package:	Related Products:
- 150Mbps Wireless N ADSL2+ Modem Router	-150Mbps Wireless N USB Adapter
- External Splitter	- 150Mbps Mini Wireless N USB Adapter
- RJ-11 Telephone Cable	TL-WN723N
- RJ-45 Ethernet Cable	-150Mbps Wireless N PCI Adapter
- Quick Installation Guide	TL-WN751ND - Resource CD - Power Adapter www.tp-link.com
