| 接口 | 3 10/100Mbps RJ45 LAN Ports 1 RJ11 Port 1 Power On/Off Switch |
|---|
| 按鈕 | 1 WPS Button 1 Wi-Fi On/Off Button |
|---|
| External Power Supply | 12VDC/1A |
|---|
| IEEE Standards | IEEE 802.3, 802.3u Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) |
|---|
| ADSL Standards | ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) ITU-T G.995.1 ITU-T G.992.3 (G.dmt.bis) ADSL2 Standards ITU-T G.992.4 (G.lite.bis) |
|---|
| ADSL2+ Standards | ITU-T G.992.5 |
|---|
| Dimensions ( W x D x H ) | 7.7 x 5.3 x 1.5 in. (195 x 135 x 39 mm) |
|---|

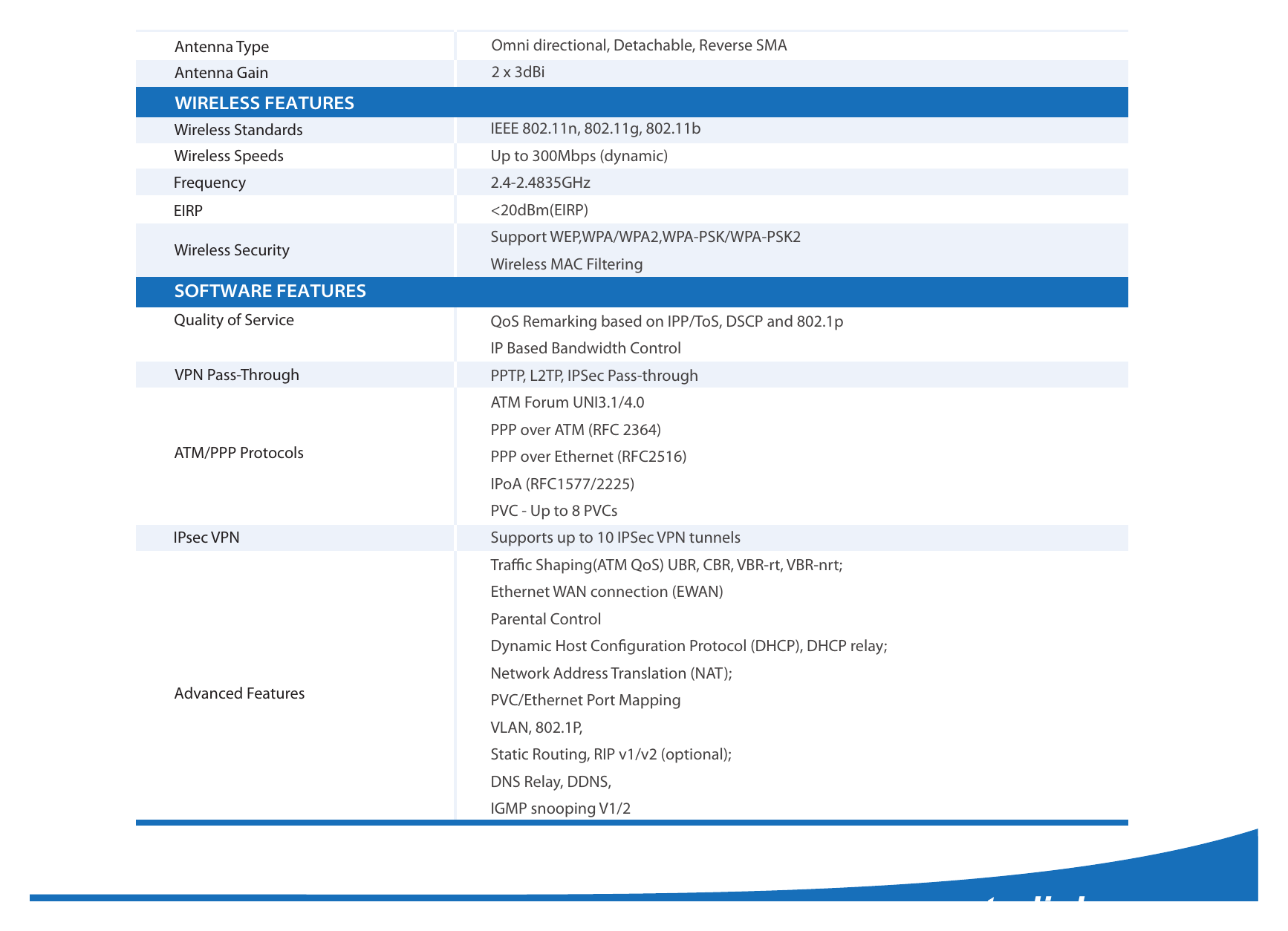

| Antenna Type | Omni directional, Detachable, Reverse SMA |
|---|
| 天線增益 | 2 x 3dBi WIRELESS FEATURES |
|---|
| Wireless Standards | IEEE 802.11n, 802.11g, 802.11b |
|---|
| Wireless Speeds | Up to 300Mbps (dynamic) |
|---|
| Frequency | 2.4-2.4835GHz |
|---|
| EIRP | <20dBm(EIRP) Support WEP,WPA/WPA2,WPA-PSK/WPA-PSK2 Wireless Security Wireless MAC Filtering SOFTWARE FEATURES |
|---|
| Quality of Service | QoS Remarking based on IPP/ToS, DSCP and 802.1p IP Based Bandwidth Control |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) |
|---|
| ATM/PPP Protocols | PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
|---|
| IPsec VPN | Supports up to 10 IPSec VPN tunnels Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Ethernet WAN connection (EWAN) Parental Control Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); |
|---|
| Advanced Features | PVC/Ethernet Port Mapping VLAN, 802.1P, Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 www.tp-link.com Specifications： SOFTWARE FEATURES IGMP Multicast, Advanced Features UPnP NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Security Service(DoS), SYN Flooding, Ping of Death Web Based Configuration(HTTP), Remote management, Telnet ma |
|---|
| Management | Line Interface, SSL for TR-069, SNMP v1/2c, SNMP over EOC, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools OTHERS |
|---|
| Certification | CE, FCC, RoHS Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® System Requirements or Linux. Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram: |
|---|
| HOME | BRANCH OFFICE Encrypted IPSec VPN Tunnel |
|---|
| TD-W8960N | TD-W8960N 300Mbps Wireless N 3 300Mbps Wireless N |
|---|
| ADSL2+ Modem Router | ADSL2+ Modem Router Internet cry ted IPS ted ryp |
|---|
| TL-WN821N | TL-WN851ND TL-WN823N TL-WN851ND 300Mbps Wireless 300Mbps Wireless 300Mbps Mini Wireless 300Mbps Wireless |
|---|
| N USB Adapter | N PCI Adapter N USB Adapter N PCI Adapter TL-ER6120 VPN GATEWAY CORPORATE HEADQUARTER www.tp-link.com Diagram: |
|---|
| Package: | Related Products: |
|---|
| - 300Mbps Wireless N ADSL2+ Modem Router | -300Mbps Wireless N USB Adapter |
|---|
| - External Splitter | - 300Mbps Mini Wireless N USB Adapter |
|---|
| - RJ-11 Telephone Cable | TL-WN823N |
|---|
| - RJ-45 Ethernet Cable | -300Mbps Wireless N PCI Adapter |
|---|
| - Quick Installation Guide | TL-WN851ND - Resource CD - Power Adapter www.tp-link.com |
|---|
