ZKTeco DS-854F32T-S3-MI-S-HL 為4 MP Smart Hybrid Light Fixed Lens Dome IP Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-854F32T-S3-MI-S-HL 香港價格連安裝報價。
| 影像感測器 | 1/3” 4 MP CMOS Sensor |
|---|---|
| 最大解像度 | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5 s to 1/100,000 s 0.001 Lux @ F1.3 (AGC on, Color) Min. Illumination 0 lux (IR on, B & W) |
| S/N Ratio | > 52 dB |
| IR Range | 40 m |
| 白光距離 | 30 m |
| Illuminator On / Off Control | Auto / Manual |
| Illuminator Number | 2 × IR / White Light integrated LED |
| Smart IR | Support Pan: 0° to 360° Angle Adjustment for Tilt: 0° to 90° Installation Rotation: 0° to 360° |
| TV System | PAL / NTSC Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Image Settings Gamma, Backlight mode, adjustable by platform software or web browser |
| Software Reset Default | Support |
| 一般功能 | Heartbeat, Mirror, Privacy mask, Log, Password reset |
| 鏡頭類型 | Fixed Lens |
| 鏡頭接口 | M22 |
| Mount Type | Board-in |
| 焦距 | 3.6 mm |
| Max. Aperture | F1.3 |
| Optical Zoom | N/A www.zkteco.com FOV: 90° Horizontal: 88° Field of View Vertical: 45° Diagonal: 105° |
| Iris Control Type | Fixed |
| Close Focus Distance | 2m |
| 鏡頭 | Detect Observe Recognize Identify DORI Distance 3.6mm 50.0m 19.6m 10.0m 4.3m |
| 視頻壓縮 | H.265 / H.264 |
| 解像度 | 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720) 50 Hz (PAL): 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Main stream: 60 Hz (NTSC): 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360) |
| Max Video Frame Rate | Sub stream: 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360) 50 Hz (PAL): 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Third stream: 60 Hz (NTSC): 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Video Stream Capability | Triple streams |
| 碼率控制 | CBR / VBR H.264: 192 Kbps to 8 Mbps Video Bit Rate H.265: 224 Kbps to 8 Mbps |
| Day / Night | Auto (ICR) / Color / B&W |
| BLC | Support |
| HLC | Support |
| WDR | 120 dB True WDR |
| Scene Self-adaptation | Support Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent White Balance lamp |
| Gain Control | Low, Mid low, Mid, Mid high, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart /Ordinary (4 areas) |
| 感興趣區域 ROI | Support (4 areas, Level 1 to 6) |
| 除霧 | N/A |
| Mirror | Support |
| Image Rotation | 0° / 90° / 180° / 270° / Horizontal / Vertical |
| Privacy Masking | 4 areas |
| Corridor Mode | Support |
| Digital Zoom | Support |
| Anti-flicker | N/A |
| 內置麥克風 | Support |
| Speaker | N/A |
| 音訊壓縮 | G.711 ulaw |
| 環境噪音過濾 | Support |
| 音訊取樣率 | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
| 音訊碼率 | 64 Kbps (G.711 ulaw) www.zkteco.com Intelligent Video Analytics Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets IVA (Perimeter Protection) classification) |
| Intelligent Search | Support fast retrieval by human and vehicle targets classification Support fast retrieval by human and vehicle targets classification, playback and Intelligent Video backup Face Detection |
| Face Templates | N/A |
| Face Quality Filtering | N/A |
| Face Detected Per Frame | N/A |
| Detection Area | N/A |
| Detected Face Size | N/A |
| Capture Response | N/A Alarm SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Basic Alarm Event Video tampering, External alarm Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets Smart Alarm Event classification) Upload to memory card / FTP, notify surveillance center, trigger recording, trigger Alarm Linkage Actions capture, send email |
| 同時取流 | Up to 15 channels |
| Network | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| SDK and API | Support SDK, API and ONVIF Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; Cyber Security password protection; complicated password; basic and digest authentication for HTTP/HTTPS; TLS; IP address filter; Security Audit Log TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMT |
| Interoperability | ONVIF Profile S / T / G |
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest |
| 網絡儲存 | FTP |
| 瀏覽器 | IE / Edge / Firefox / Chrome / Safari AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio Management Software CVAccess |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| 機身儲存 | Micro-SD card slot (support max. 256 GB) |
| 操作系統 | Windows |
| P2P Cloud Service | Support Port |
| 音訊輸入 | N/A |
| 音訊輸出 | N/A |
| 警報輸入 | N/A |
| 警報輸出 | N/A |
| Reset Button | N/A |
| ANR | N/A |
| USB | N/A |
| RS485 | N/A www.zkteco.com Power |
| 供電 | PoE (IEEE802.3af, Class 3), DC 12 V ± 10% reverse polarity protection |
| 功耗 | Basic ≤3 W (12 VDC); 4.5 W (PoE) |
| 電源接口 | Ø 5.5 mm coaxial power plug Structure |
| Casing Material | Aluminium Alloy |
| 尺寸 | Ø117 * 94.2 (mm) |
| 淨重 | 0.54 KG |
| 毛重 | 0.625 KG |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| 儲存環境 | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| Ingress Protection Rating | IP67 (water and dust proof ); IK10 (vandal resistance) Certifications |
| Certificate | ISO9001, ISO14001, CE, FCC |
| 類型 | Model Descripton 4 MP Smart Hybrid Light Fixed Lens 4 MP IP Camera DS-854F32T-S3-MI-S-HL Dome IP Camera 94.20 Ø 117.00 |
| Junction Box with Junction Box with | Corner Mount Pole Mount |
| Optional Bracket | Junction Box |
| Straight Bracke | Bent Bracket Bracket Bracket Picture V1.1 01/15/2025 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco.com Copyright © 2025 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

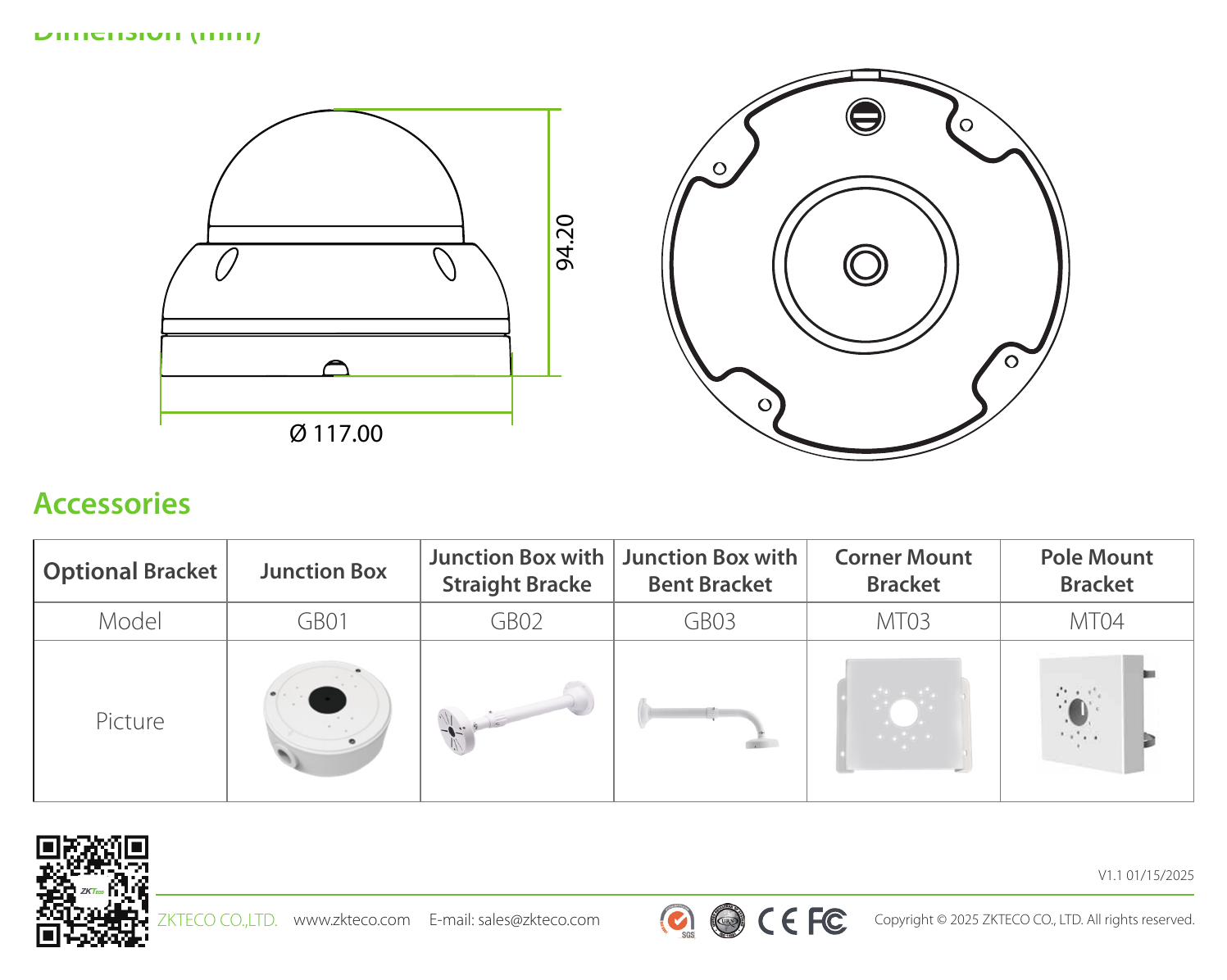

Ø117 * 94.2 (mm)｜Unit: mm
