ZKTeco E-LPRC500 為License Plate，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 E-LPRC500 香港價格連安裝報價。
| Category | Item Detail |
|---|---|
| License plate capture rate | 95% |
| Recognize rate | ≥99.9% (Typical Scene + Typical License Plate) |
| Car speeds | 0~25KM/h |
| Recognize speed | Less than 100ms |
| Plate type | Over 130 country and region Algorithm |
| Target features | Number\ Color\ Type\ Size Abnormal license plate (mobile phone photo and License plate anticounterfeiting printing) alarm is supported |
| Unlicensed vehicles | Support unlicensed vehicles Support accurate and intelligent fuzzy matching License plate allow list of allow list license Built-in intelligent ISP algorithm, intelligent |
| Image | Basic configuration optimization and dimming, intelligent adaptation to complex scenes |
| Video compression standards | H.264/ H.265/ MJPEG |
| 解像度 | 640*360/ 704*576/ 1280*720/ 1920*1080 |
| Video/Audio | Video bitrate 512Kbps~5000Kbps |
| Frame rate | 1~25FPS |
| Audio coding | G.711/AAC |
| 網絡協議 | Protocols NTP/ VPN/ FTP/ UPNP No need for a host computer or server, automatic Local networking operational networking between cameras Supports the creation of multiple parking lots and Parking lot scenario management of multiple cameras Work with strategy to meet vehicle hierarchy Block list and allow list management Networking Up to 4 auxiliary cameras can be added to the same Complementary came |
| Sensor | 5MP CIS |
| Low light | 0.1LUX color (with fill light) |
| Lens interface | M12 |
| Image configuration | Brightness, contrast, saturation, image flip, exposure time, etc. Image Parameters |
| Noise reduction | Support 2D/ 3D noise reduction |
| WDR | Support 1 * 10/1000Mbps Adaptive RJ45 port 1 * 10/100Mbps Adaptive RJ45 port |
| IO input | 4 channels |
| RS485 | 2 channels |
| TF-card | 1 TF card slot, supports up to 256GB Ports/Button |
| 藍牙 | Support |
| LCD driver | Optional |
| Voice intercom | Optional |
| 重設 | 1* RESET Button |
| Status light | Support |
| Storage | Storage 32G |
| Temperature | -30°C ~70°C 12V DC 2A for basic configurations (without speakers, screens and other high power consuming components) Power supply 12V DC 5A for extended configurations (with speakers, screens and |
| Reliability | other high-power components) |
| Parameters | Power consumption ≤ 8W (basic set, including fill light, excluding speakers, screen and other high power consumption components) Power consumption Power consumption ≤ 55W (extended set with speakers, screen and other high power consumption components) |
| 防護等級 | IP65 ... |
| Structural Parameters | Dimensions(L*W*H) 440mm *144mm*103mm 109mm*149mm *72mm The integrated machine shroud appearance size reference diagram Dimension reference drawing of integrated machine housing with sunshade Fixed focus module size diagram |
| Applications | Accessory Products LPR-Supplement Light |
| Intelligent | Intelligent buildings Communities LPR-Display Screen (Optional) |
| Office Buildings | Enterprise Factories LPR-Fixed Column V2. 0 24.10.2025 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright©2025 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

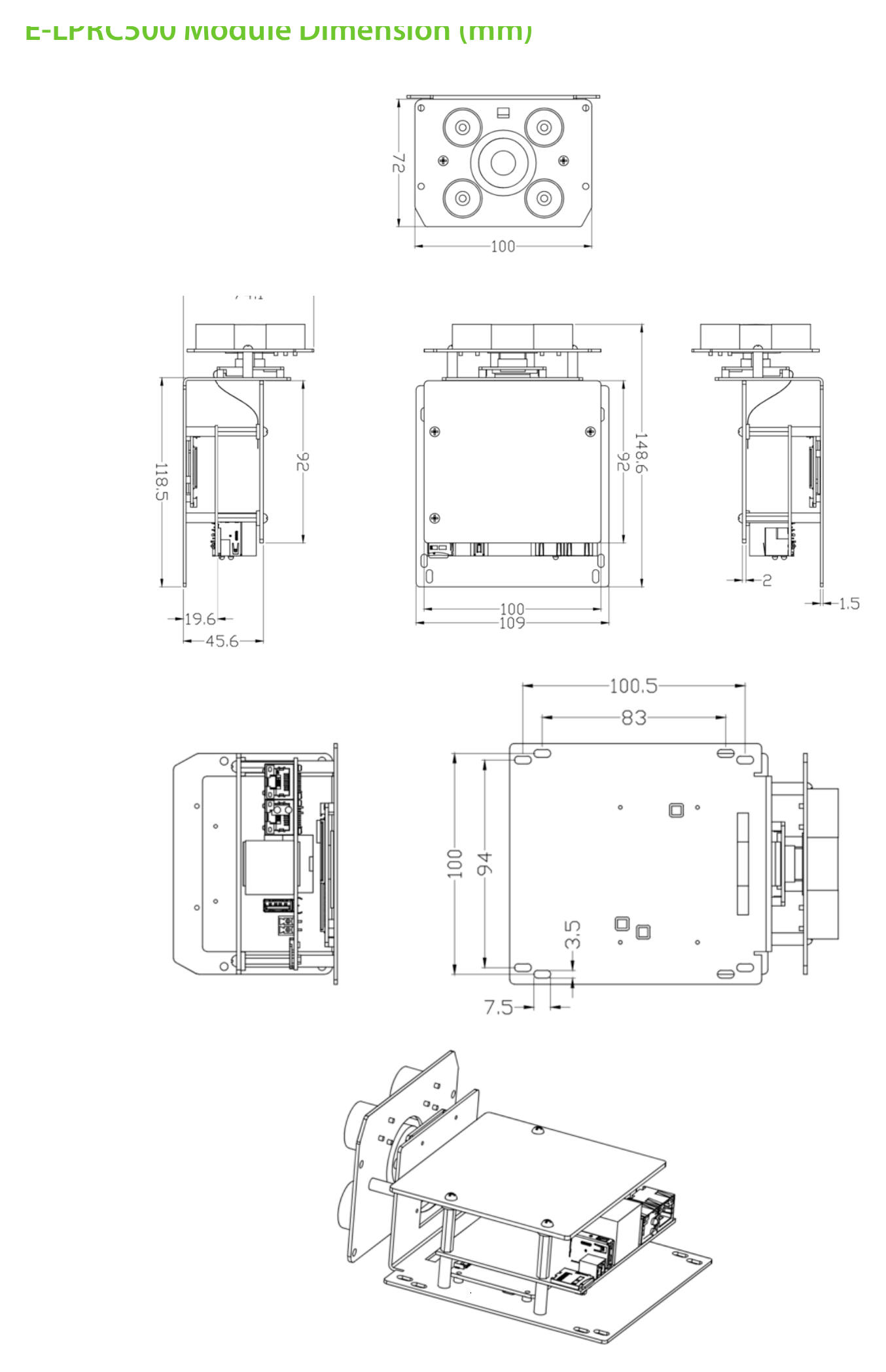

詳見圖示｜Unit: mm
E-LPRC500 ZKTeco License Plate亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，E-LPRC500 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 E-LPRC500 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
E-LPRC500 ZKTeco License Plate適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
