ZKTeco ES-852T22T-S6-MI-S 為2MP BioSense Fixed Lens Eyeball IP Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 ES-852T22T-S6-MI-S 香港價格連安裝報價。
| 影像感測器 | 1/2.8” 2MP Sony STARVIS CMOS |
|---|---|
| Max.Resolution | 1920(H)*1080(V) |
| ROM | 128MB |
| RAM | 256MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5 s to1/100,000 s |
| 最低照度 | 0.0001Lux@F1.6 (AGC on, Color) 0 lux (IR on, B&W) |
| S/N Ratio | >52dB |
| IR Range | 30 m |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2*IR LED |
| Smart IR | Support Pan: 0°–360° |
| Angle Adjustment for Installation | Tilt: 0°–90° Rotation: 0°–360° |
| TV System | PAL/NTSC |
| 圖像設定 | Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
| Software Reset Default | Support |
| 一般功能 | Heartbeat, Mirror, Privacy mask, Log, Password reset |
| 鏡頭類型 | Fixed Lens |
| 鏡頭接口 | M12 |
| Mount Type | Board-in |
| 焦距 | 3.6mm |
| Max. Aperture | F1.6 |
| Optical Zoom | N/A FOV: 90° Horizontal: 88° |
| Field of View | Vertical: 45° Diagonal: 105° |
| 光圈類型 | Fixed |
| Close Focus Distance | 1.5 m |
| 鏡頭 | Detect Observe Recognize Identify |
| DORI Distance | 3.6mm 50 m 19.2 m 10m 4.3 m |
| 視頻壓縮 | H.265 / H.264 |
| 解像度 | 1080P (1920*1080) / 1.3MP (1280*960) / 720P (1280*720) / D1 (704*576) / VGA (640*480) / Q720 (640*360) |
| 主碼流 | 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720) 60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720) |
| Max Video Frame Rate | Sub stream 50Hz (PAL): 25fps (704*576, 640*480, 640*360) 60Hz (NTSC): 30fps (704*576, 640*480, 640*360) |
| 第三碼流 | 50Hz (PAL): 25fps (1920*1080, 1280*960, 1280*720, 704*576) 60Hz (NTSC): 30fps (1920*1080, 1280*960, 1280*720, 704*576) www.zkteco.com |
| Video Stream Capability | Triple streams |
| 碼率控制 | CBR / VBR H.264: 896kbps–6Mbps Video Bit Rate H.265: 1024Kbps ~ 6Mbps |
| Day/Night | Auto (ICR) / Color / B&W |
| BLC | Support |
| HLC | Support |
| WDR | True WDR |
| Scene Self-adaptation | Support |
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
| Gain Control | Low, Mid low, Mid, Mid high, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart /Ordinary (4 areas) |
| 感興趣區域 ROI | Support (4 areas, Level 1~6) |
| 除霧 | N/A |
| Mirror | Support |
| Image Rotation | 0°/90°/180°/270°/Horizontal/Vertical |
| Privacy Masking | 4 areas |
| Corridor Mode | Support |
| Digital Zoom | Support |
| Anti-flicker | N/A |
| Built-in MIC | Support |
| 音訊壓縮 | G.711ulaw |
| 環境噪音過濾 | Support |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| 音訊碼率 | 64 Kbps (G.711ulaw) Intelligent Video Analytics Target Count, Object Lost/Left, |
| IVA (Perimeter Protection) | Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
| Intelligent Search | Embedded intelligent classification algorithm based on computer vision technology |
| Intelligent Video | Support fast retrieval by human & vehicle targets classification, playback and backup Face Detection |
| Face Templates | N/A |
| Face Quality Filtering | N/A |
| Face Detected Per Frame | N/A |
| Detection Area | N/A |
| Detected Face Size | N/A |
| Capture Response | N/A Alarm |
| Basic Alarm Event | SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
| Smart Alarm Event | Target Count, Object Lost/Left, Line Crossing, Area detection, Smart Motion Detection (human and vehicle targets classification) |
| Alarm Linkage Actions | Upload to memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email www.zkteco.com |
| 同時取流 | Up to 15 channels |
| Network | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| SDK and API | Support SDK, API and ONVIF Video encryption; firmware encryption; configuration encryption; account lockout; securitylogs; lP |
| Cyber Security | filtering; trusted boot; trusted execution; trusted upgrade; password protection;complicated password; basic and digest authentication for HTTP/HTTPS, TLS; IP address filter; Security Audit Log TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket |
| Interoperability | ONVIF Proflie S/T/G |
| 用戶管理 | Up to 256 users can be added. 3 user levels: admin, operator and guest |
| 網絡儲存 | FTP, Micro SD card, auto network replenishment (ANR) |
| 瀏覽器 | IE / Edge /Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0/ZKBioSecurity IVS/ZKBioAccess IVS/ZKBio CVSecurity/ZKBio CVAccess |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| 機身儲存 | Micro-SD card slot (support max. 256GB) |
| 操作系統 | Windows |
| P2P Cloud Service | Support Port |
| 音訊輸入 | N/A |
| 音訊輸出 | N/A |
| 警報輸入 | N/A |
| 警報輸出 | N/A |
| Reset Button | Support |
| ANR | Support |
| USB | N/A |
| RS485 | N/A Power |
| 供電 | PoE (IEEE802.3af,Class 3), DC 12V±10% reverse polarity protection |
| 功耗 | Basic ≦3W (12 VDC); 4.5 W (PoE) |
| 電源接口 | Ø 5.5 mm coaxial power plug Structure |
| Casing Material | Aluminium Alloy |
| 尺寸 | 97.00 x 88.50 (mm) |
| 淨重 | 0.42kg |
| 毛重 | 0.60kg |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F)/ Humidity 95% or less (non-condensing) |
| 儲存環境 | –30 °C to +60 °C (–22 °F to +140 °F) /Humidity 95% or less (non-condensing) |
| Ingress Protection Rating | IP67 Certifications |
| Certificates | ISO9001, ISO14001, CE, FCC www.zkteco.com Ordering Information |
| 類型 | Model Descripton 2MP IP Camera ES-852T22T-S6-MI-S 2MP BioSense Fixed Lens Eyeball IP Camera Dimension (mm) 88.50 97.00 |
| Side view | Bottom view Accessories |
| Junction Box with | Junction Box with Corner Mount Pole Mount |
| Optional | Junction Box |
| Straight Bracket | Bent Bracket Bracket Bracket Picture |
| V2. 0 | 03.03.2023 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright©2023 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

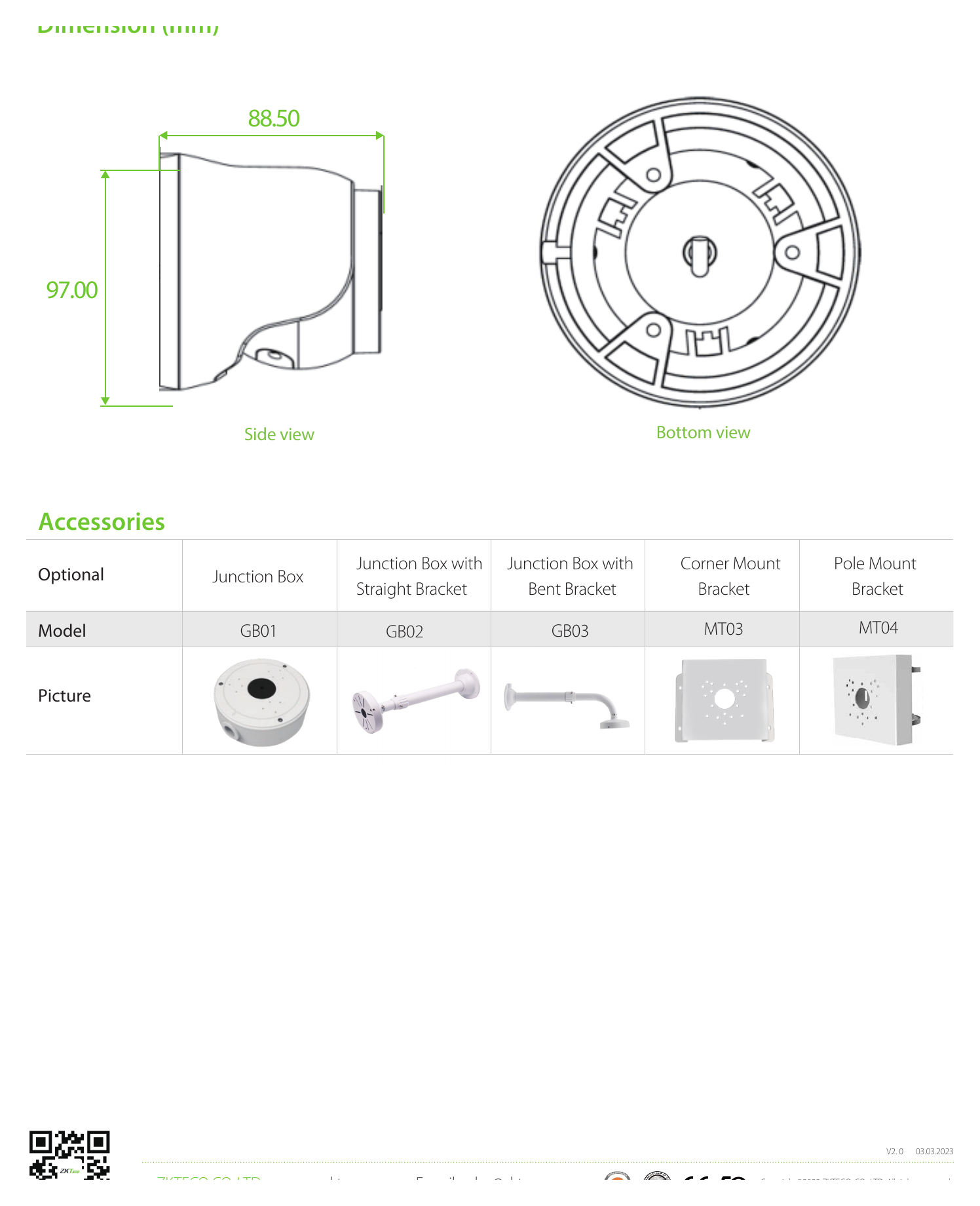

97.00 x 88.50 (mm)｜Unit: mm
ES-852T22T-S6-MI-S ZKTeco 2MP BioSense Fixed Lens Eyeball IP Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，ES-852T22T-S6-MI-S 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 ES-852T22T-S6-MI-S 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
