ZKTeco LOCKERPAD-G4PRO 為Reliable and Secure Solution for Your Storage，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 LOCKERPAD-G4PRO 香港價格連安裝報價。
| Cabinet Capacity | 96 ( *support connection with up to 8pcs Lock Control Board through RS485 connection) |
|---|---|
| Face | 10,000 (1 : N) |
| Card | 10,000 |
| Transactions | 100,000 |
| CPU | 64bit Octa-core Customized Computer Vision 1.8GHz CPU |
| Memory | 2G RAM / 16G ROM |
| 操作系統 | Android 9.0 |
| Algorithms | ZKFace 5.6.2 TCP/IP, USB Host, RS232, RS485, Wiegand Input, Wiegand Output, Wi-Fi, WLAN: 2.4GHz, 4G(Optional) |
| Software | ZKBio CVSecurity Function Parameters Multiple people and one cabinet setting, Standard Firmware Functions Temporary takeout settings Facial Recognition Speed: Within 1s Facial Recognition Facial Recognition Distance: 20cm to 50 cm ID Card@125 kHz (Standard) Card Types IC Card@13.56 MHz (Optional) Operating Environment |
| 工作溫度 | -20°C to 55°C (-4°F to 131°F) |
| 工作濕度 | 10% to 90% |
| 儲存溫度 | -15°C to 55°C (5°F to 131°F) |
| Storage Humidity | <90% Interface Parameters USB*1, Network Port*1, RS485*1, TXD*2, RXD*2, INWD*1, WD*1, Peripheral interface AUX*1, SEN*1, BUT*1, NO*1, NC*1, COM*1, AL*1 Other Parameters |
| Screen | 7-inch LCD Touch Screen (720*1280 pixels) |
| Camera | 2MP Binocular Camera |
| 供電 | DC 12V 3A |
| 尺寸 | 264mm*120mm*51mm (9.69in*4.72in*2in) |
| Terminal Bond | 485 seat of the lock control board 5.08mm 1*4pin |
| Communication | RS485 |
| Outputs | 12* Relay |
| Supported Terminal | LockerPad-G4 Pro |
| Input | 90~264 VAC |
| Output | 12V 5A |
| MaxPower | 60W |
| 材質 | ABS Plastic |
| Side Panel Width | 22mm (±2mm) |
| Double Side Panel Width | 44mm (±2mm) |
| Upper And Lower Panels Height | 30mm (±2mm) |
| Door Panel Thickness | 26mm (±2mm) with decorative section of 36mm (±2mm) |
| Base Height | 80mm (±2mm) |
| Top Plate Height | 40mm (±2mm) |
| Electrical Parameters | DC 12V 2A |
| Suction Time | ≤ 200ms |
| Mechanical Life | ≥ 500,000 Times |
| Electromagnet Life | ≥ 1 Million Times |
| Surface Treatment | Electrophoretic Paint |

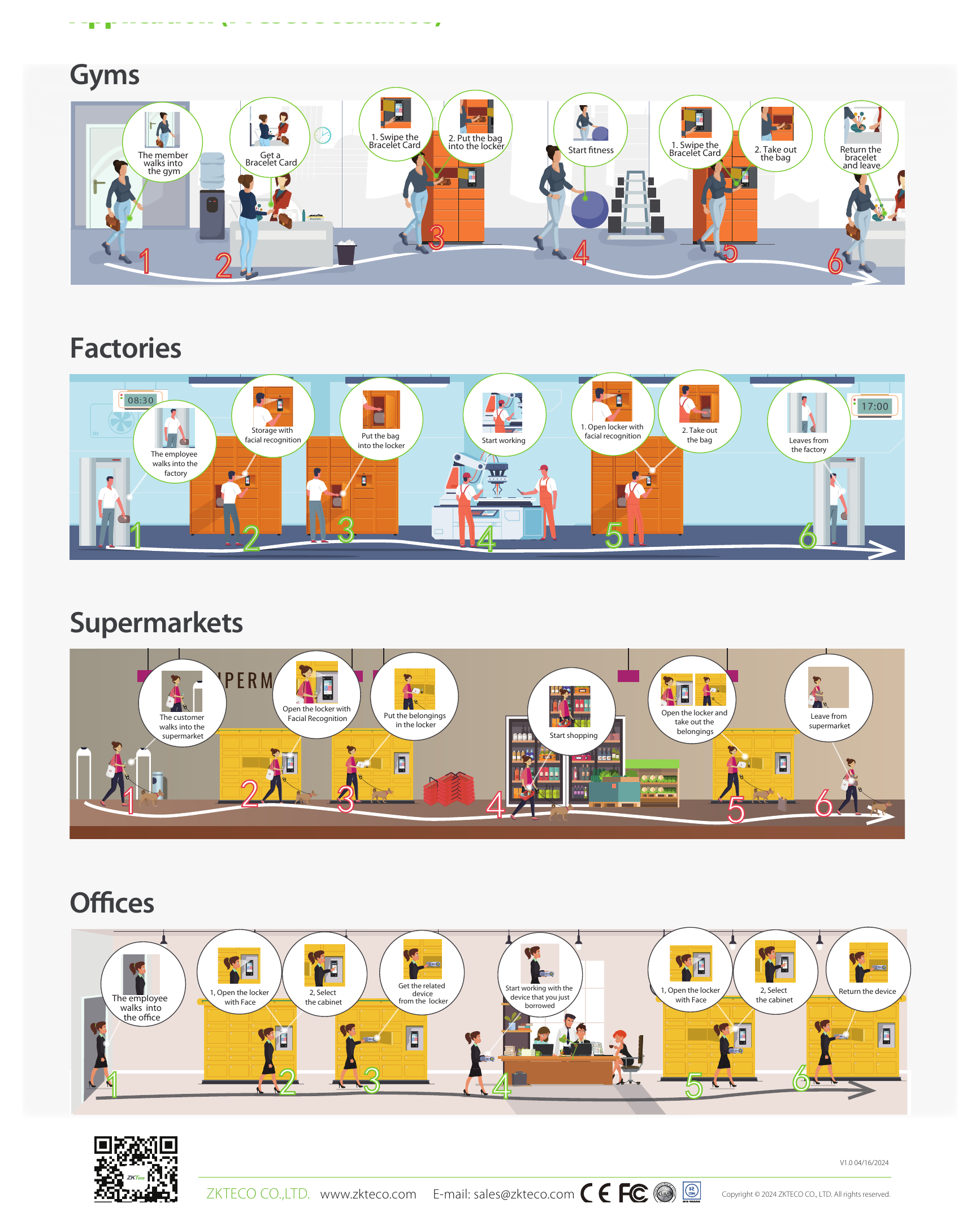

| Bracelets | 1. Swipe the 2. Put the bag |
| Bracelet Card | into the locker 1. Swipe the 2. Take out Return the |
| Start fitness | Bracelet Card |
| The member | Get a the bag bracelet |
| walks into | Bracelet Card and leave the gym Bracelets 3 4 5 1 2 6 |
| Storage with | 1. Open locker with 2. Take out |
| facial recognition | Put the bag facial recognition the bag |
| Start working | Leaves from into the locker the factory The employee walks into the factory 1 2 3 4 5 6 |
| Open the locker with | Open the locker and |
| The customer | Facial Recognition Put the belongings Leave from |
| in the locker | take out the supermarket walks into the belongings |
| supermarket | Start shopping 1 2 3 4 5 6 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 5 6 7 5 6 7 5 6 7 5 6 7 5 6 7 5 6 7 8 9 10 8 9 10 8 9 10 Key 8 9 10 8 9 10 8 9 7 8 9 10 Key 10 1 2 3 17 18 19 4 5 6 20 21 7 8 9 10 12 13 14 15 16 17 18 19 20 21 11 12 13 11 12 13 11 12 13 11 12 13 11 12 13 11 12 13 14 15 16 17 Get the related 14 15 16 17 Start working with the 14 15 16 17 14 15 16 17 14 15 16 17 1, Open the |
| from the locker | with Face the cabinet |
| borrowed | 1 2 3 4 1 2 3 4 |
| the office | 5 6 7 5 6 7 5 6 7 5 6 7 8 9 10 8 9 10 8 9 10 8 9 10 11 12 13 11 12 13 11 12 13 11 12 13 14 15 16 17 14 15 16 17 14 15 16 17 14 15 16 17 3 6 18 19 20 18 19 20 21 21 18 19 20 21 18 19 20 21 4 5 V1.0 04/16/2024 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco.com ISO 20000 Copyright © 2024 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。
264mm*120mm*51mm (9.69in*4.72in*2in)｜Unit: mm
LOCKERPAD-G4PRO ZKTeco Reliable and Secure Solution for Your Storage亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，LOCKERPAD-G4PRO 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 LOCKERPAD-G4PRO 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
LOCKERPAD-G4PRO ZKTeco Reliable and Secure Solution for Your Storage適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
