ZKTeco PE484S-400-M-G 為48-Port L3 Managed Gigabit PoE Switch with 4*10Gigabit SFP+ Uplinks，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PE484S-400-M-G 香港價格連安裝報價。
| 供電 | Input: AC 100-240V, 50-60Hz 48*10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply) 4*10G SFP+ Ports Ethernet 1*RJ45 Console Port 1*USB Serial Port Performance |
|---|---|
| Bandwidth | 176Gbps |
| 包轉發率 | 131Mpps |
| DDR SDRAM | 512MByte |
| Flash Memory | 32MByte |
| Buffer Memory | 16Mbit |
| MAC Address | 32K |
| Jumbo Frame | 12Kbytes |
| VLANs | 4096 |
| MTBF | 100,000 hours Standard IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE802.3x, IEEE 802.3az, IEEE |
| 網絡協議 | 802.3ad, IEEE 802.1, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X |
| PoE Protocol | IEEE802.3af (15.4W), IEEE802.3at (30W), IEEE802.3bt (90W) EMI: FCC Part 15 CISPR (EN55032) class A, EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) 10Base-T: Cat3, 4, 5 or above UTP(≤100m) |
| Network Medium | 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m) |
| Security Certificate | CE, FCC, RoHS Operating Temperature: -10~50°C Storage Temperature: -40~70°C Operating Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
| 指示燈 | PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
| PWR | On: Powered On, Off: Powered Off |
| SYS | On: System On, Flashing: System Off or Failed |
| Link/ACT | On: Link Connecting, Flashing: Data Transmitting, Off: Link Off Product Dimensions: 440*360*44.5mm Package Dimensions: 580*440*120mm Product N.W: 5.49KG Product G.W: 6.85KG |
| Power Voltage | Operating Voltage: AC100-240V 50-60Hz, Power Supply: 52V 7.69A |
| 功耗 | POE: POE Total Power<400W, Power Consumption: Machine<67.5W Switch: 1 set, instruction manual: 1 set, certificate of quality: 1 set, power cord: 1 set, serial cable: 1 set, mounting ear: 1 pair |
| IPv4 | IPv4 VLAN Interface, IPv4 Static Routes, ARP |
| IPv6 | IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND |
| RIP | V1/V2 |
| OSPF | Router-ID, Authentication Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to 10K), Support 10G/2.5G (2023.3.2), Fiber Module(DDM) Supports load balance policy, Base on MAC and IP-MAC, Static and Dynamic Group, Supports LACP, Up to 8 groups |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| Port Mirroring | One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups |
| Port Security | MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094, Max. 4K static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP |
| Spnning Tree Protocol | STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port |
| LLDP | LLDP, LLDP MED IGMP Snnoping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups filtering, Querier, MLD Snooping, MVR Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking PoE Temperature, PoE Type/Level/Power/Voltage/Current, PoE Switch, PoE Watchdog, PoE power |
| DHCP | DHCP Server, IP Pool, Static Binding, DHCP Relay, Option 43 HTTP, HTTPS, Telnet, SSHv2, Manager ACL, Session Timeout, Password Retry Count, Silent Time |
| AAA | RADIUS, TACACS+, 802.1X, Base on port/MAC/local/WEB |
| DHCP Snooping | Global/VLAN, Option 82, Circuit ID |
| ACL | MAC ACL, IPv4 ACL, IPv6 ACL |
| Syslog | Logging Message, Remote Server |
| Manager Access | Console, HTTP/HTTPS, Telnet, SSH, SNMP |
| Manager IP | Static Address, DHCP Client, Supports IPv4 and IPv6 address, Manager VLAN, DNS |
| Time Synchronization | SNTP, Manual Time |
| SNMP | V1/V2C/V3, Community, V3 User, Group, Trap Host |
| Product Type | Part Number Description 52 Ports L3 Managed |
| Layer 3 Managed PoE Switch | PE484S-400-M-G Gigabit POE Switch V1.0 02/08/2024 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco. Copyright © 2024 ZKTECO CO., LTD. All rights reserved. RoHS |
* 規格以原廠最新 Datasheet 為準。

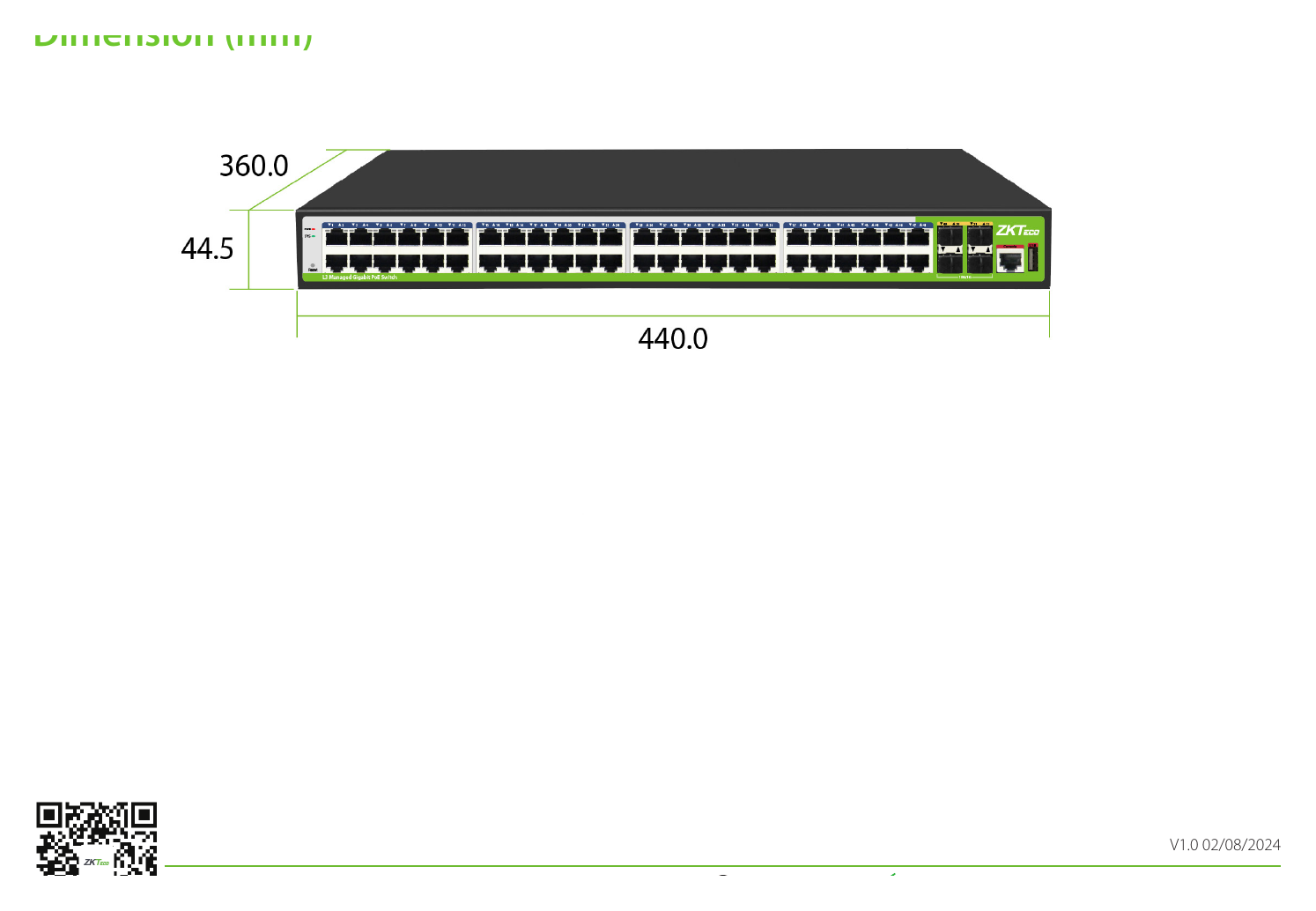

詳見圖示｜Unit: mm
PE484S-400-M-G ZKTeco 48-Port L3 Managed Gigabit PoE Switch with 4*10Gigabit SFP+ Uplinks亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，PE484S-400-M-G 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 PE484S-400-M-G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
PE484S-400-M-G ZKTeco 48-Port L3 Managed Gigabit PoE Switch with 4*10Gigabit SFP+ Uplinks適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
酒店客房裝門禁系統，房卡感應電子鎖、退房自動失效、樓層電梯權限聯動，提升住客體驗與保安。專業團隊上門評估，旺角、觀塘場地歡迎洽談報價。
WhatsApp 查詢 →學生宿舍裝門禁系統，學生證刷卡進出、宵禁時段管控、訪客登記聯動，保障住宿安全與管理。一站式勘測安裝，中環、尖沙咀各區即日約見報價。
WhatsApp 查詢 →展覽館展廳裝門禁系統，分區票證核驗、VIP通道權限、人流計數聯動，管控大型展覽出入。免費評估方案、即時報價，佐敦、油麻地一帶歡迎查詢。
WhatsApp 查詢 →體育館場館裝門禁系統，會員閘機刷卡、賽事分區管控、更衣室權限分級，應對人潮快速通行。免費上門勘察、明碼實價報價，荃灣、沙田一帶即日約期。
WhatsApp 查詢 →圖書館裝門禁系統，讀者證感應進出、館藏區分級權限、閉館自動鎖定，保障館藏與秩序。全港覆蓋上門安裝，屯門、元朗各區歡迎致電查詢。
WhatsApp 查詢 →貨櫃碼頭閘口裝門禁系統，車牌識別道閘、司機身份核驗、貨運記錄聯動，管控重型車輛進出。免費上門度尺、按規模報價，將軍澳、銅鑼灣項目即約勘察。
WhatsApp 查詢 →查看更多門禁系統適用場景，請參閱 門禁系統安裝工程。
如需整套門禁系統方案，請參閱 門禁系統安裝工程。
