ZKTeco SATURN-F1000 為Maximize Security with Seamless Flow，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SATURN-F1000 香港價格連安裝報價。
| Audio Indicator | Speaker LED Indicators |
|---|---|
| Visual Indicator | Steady blue = Standby, Steady green = Normal use Steady red = Barrier close |
| Display | N/A Dual flap barriers for additional |
| Lane Type | Single Lane lane (with Saturn-F1000) |
| Lane width | 550mm |
| Lane Height | 1020mm |
| Barrier Movement Type | Retractable flap barrier (Polycarbonate) |
| Motor | DC brushless motor |
| Movement Speed | Less than 1s per movement (open/close timing) |
| Movement Accuracy | N/A |
| Clutch | N/A |
| Cabinet Lid Material | Cold-rolled SPCC Steel (GB700) |
| Lid Material | Polycarbonate+2.5D tempered glass |
| IR Sensors | 5 pairs System configuration, access mode configuration, anti-pinch Motherboard Function configuration, anti-tailgate configuration etc. |
| Motherboard Communication | Fire alarm Port(Relay)*1, RS485 Port*1, Streamlined under mount options: RFID / QR Code Lid Options Top mount options with mounting pole: Facial Recognition Authentication Methods (compatible with ProFace X / SpeedFace V5L / Elite Pass) |
| Chassis Material | Cold-rolled SPCC Steel (GB700) |
| Chassis Colour | White |
| Controller | C3, InBio series or or third-party devices Under mount RFID reader: (support model: ProID Series) |
| Credential Options | Under mount QR Code Reader: QR500 Top mount facial recogntion terminal: ProFaceX/ Elite Pass/ SpeedFace V5L RFID: 30 passengers per minute |
| Flow Rate | QR Code: 30 passengers per minute Facial Recognition: 15 passengers per minute |
| Accessibility | Standard lane (550mm): Adult and children |
| 供電 | 110V / 220VAC @ 50-60 Hz |
| Power Rating | 10VA (Standby), 40VA (Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60minutes |
| MCBF | 5 million |
| Gross weight (60kg) | Gross weight (35kg) Weight |
| Net weight (50kg) | Net weight (30kg) |
| Dimensions (L*W*H) | 1200*306*1020mm 1345*360*1100mm (L*W*H) |
| 工作溫度 | -20°C to 70°C |
| 工作濕度 | 20% to 85% RH (non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | IPX4 ZKBio CVAccess / ZKBio CVSecurity Supported Software (Depends on equipped access controller) IR sensor safety detection Logic voltage 24V DC Safety Features Voltage free contact input for fire alarm fail state Auto opening on power off |
| Security Features | Anti-intrusion, anti-tailgating, wrong way enter alarm, automatically close door when no one pass |
| Product Delivery | Pre-assembled |
| 使用環境 | Indoor/ Outdoor |
| Site Preparation | Flat & level finished floor (base plate in options for unfinished floor) |
| Security Level | Middle |
| Emergency Mode | Support (door unlock automatically) |
| Packing Material | Carton box 1154 1200 306 550 1050 927 1020 Saturn-F1000 1200 306 250 250 1050 927 1020 Saturn-F1200 |
| School | Museum Factory Gym V2.2 08.21.2025 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright © 2025 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

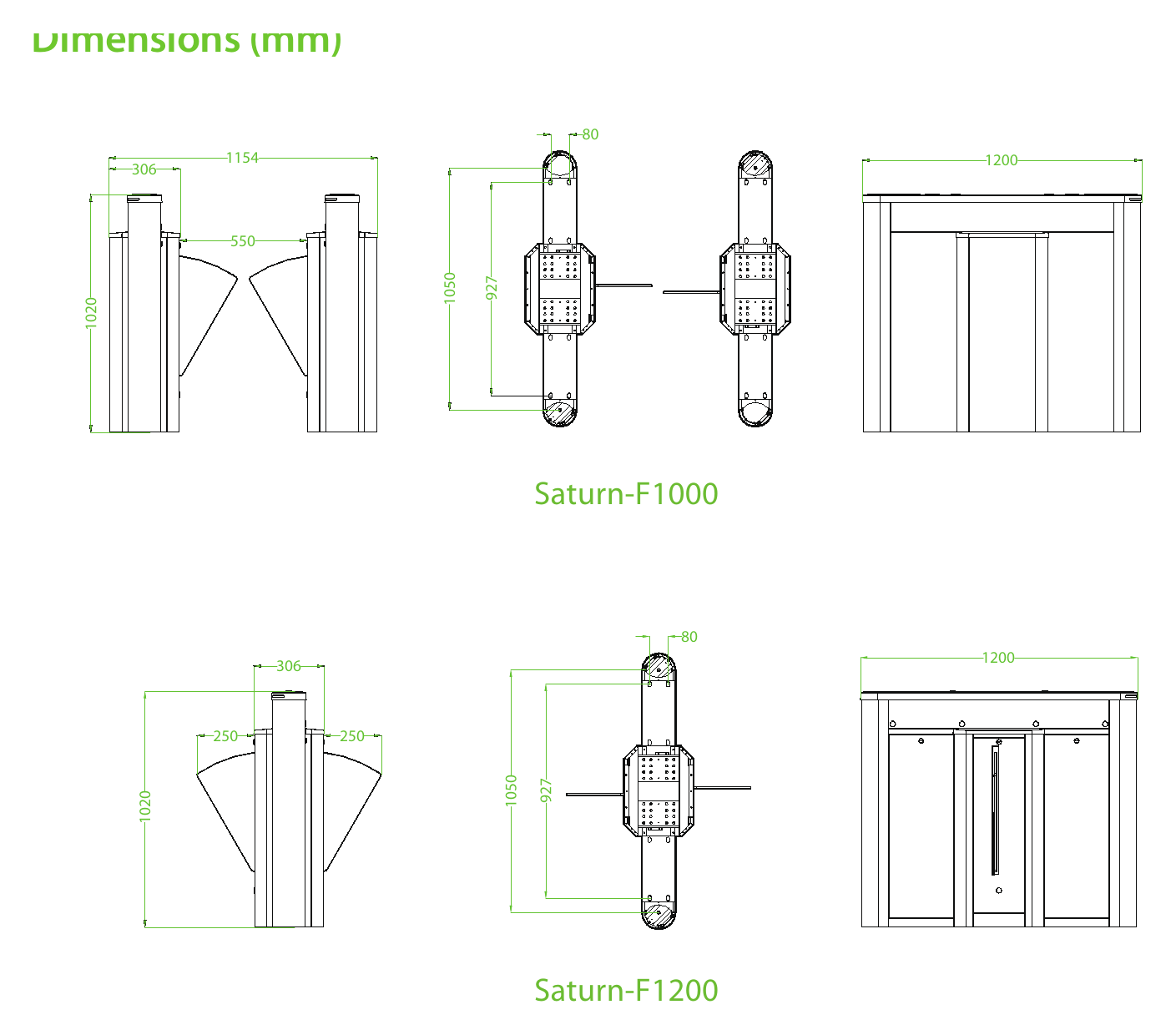

詳見圖示｜Unit: mm
SATURN-F1000 ZKTeco Maximize Security with Seamless Flow亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，SATURN-F1000 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 SATURN-F1000 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
SATURN-F1000 ZKTeco Maximize Security with Seamless Flow適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
