| Display | 5"@ ISP Color LCD Touch Screen (720*1280) |
|---|
| Camera | WDR Low Light Camera @ 2MP |
|---|
| 操作系統 | Linux CPU: 1GHz Dual Core |
|---|
| Hardware | RAM: 1G; ROM: 8G Supplement Light: Yes Steady Green LED: Normal Status Steady White LED: Authentication in Progress Visual Indicator Steady Red LED: Error/ Fault Steady Orange LED: Object nearby detected |
|---|
| Authentication Method | Face / Palm / Card / Password (Virtual Keypad) |
|---|
| Face Template Capacity | 10,000 (1:N) |
|---|
| Palm Template Capacity | 15,000 (1:N) |
|---|
| 卡容量 | 20,000 (1:N) |
|---|
| Transaction Capacity | 200,000 |
|---|
| Biometric Authentication | less than 1 sec (Facial Authentication) |
|---|
| Speed | less than 0.35 sec (Palm Authentication) |
|---|
| Touchless Biometric | 30cm to 100cm (Facial Authentication) |
|---|
| Authentication Distance | 5cm to 15cm (Palm Authentication) FAR ≤ 0.01% (Visible Light Facial Authentication) False Acceptance Rate (FAR)% FAR ≤ 0.01% (Palm Authentication) FRR ≤ 0.02% ( Visible Light Facial Authentication) False Rejection Rate (FRR)% FRR ≤ 0.17% (Palm Authentication) |
|---|
| Biometric Algorithm | ZKFace V3.9 & PalmElite3.3.3 ID Card@125 kHz (Standard) Card Type IC Card@13.56 MHz (Optional) TCP/IP*1 Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz |
|---|
| Communication | Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1 ADMS, T9 Input, 14-digit User ID, Access Levels, Groups, Holidays, Antipassback, Record Query, Schedule Bell, Tamper Switch Alarm, Mask Standard Functions Detection ,Multiple Verification Methods, SIP 2.0 Protocol, AC Push and TA Push Protocol Switch |
|---|
| Optional Functions | IC Card, ZSmart APP |
|---|
| 供電 | 12V DC 3A |
|---|
| 工作溫度 | -10°C to 45°C (14°F to 113°F) |
|---|
| 工作濕度 | 10% to 90% RH (Non-condensing) |
|---|

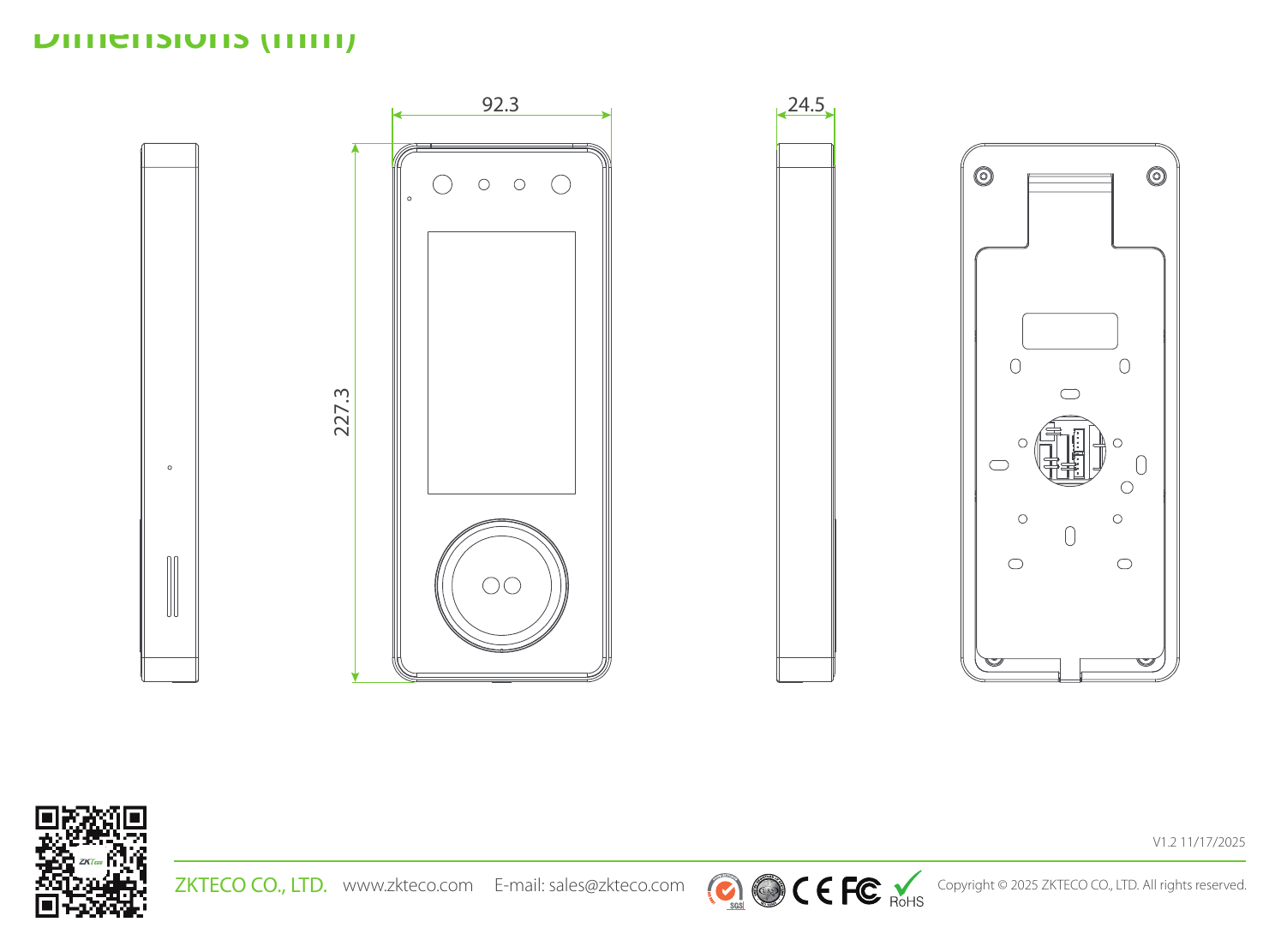

| 尺寸 | 227.3 *92.3 * 24.5 (mm) (L*W*D) |
|---|
| 毛重 | 1.3 Kg |
|---|
| 淨重 | 0.62 Kg Software: ZKBio CVAccess / ZKBio Time / ZKBio CVSecurity Supported Software Mobile App: ZSmart |
|---|
| 安裝 | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
|---|
| Housing Material | Aluminium Alloy |
|---|
| Ingress Protection Rating | / |
|---|
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS Switch Bio CVSecurity |
|---|
| TCP/IP | Switch SIP Wi-Fi Indoor Monitor (SIP Ready) Wiegand Output Door Sensor No Touch EXIT |
|---|
| Electric Lock | Smoke |
|---|
| 出門按鈕 | Detector |
|---|
| Card Reader | Alarm SpeedPalm-V5L 92.3 24.5 227.3 V1.2 11/17/2025 ZKTECO CO., LTD. www.zkteco.com E-mail: sales@zkteco.com Copyright © 2025 ZKTECO CO., LTD. All rights reserved. |
|---|
