ZKTeco Z8516NFR-16P-S 為H.265+ 16 Channels BioSense Network Video Recorder with 16 PoE，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 Z8516NFR-16P-S 香港價格連安裝報價。
| Main Processor | Multi-core embedded processor |
|---|---|
| 操作系統 | Embedded LINUX |
| Operation Interface | Web browser & Local GUI |
| Max IPC Video Input | 16CH |
| Two-way Talk | Support |
| 音訊壓縮 | G.711u |
| Max Audio Input | 16CH by IPC |
| Third Party Camera Access | ONVIF & RTSP |
| Display Split | 1/4/6/9/16 CH 8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) / 1.3MP(1280*1024) / 1Mp(1280*720) / D1(1024*768) |
| Live View Capability | 16CH@5MP(25/30fps) |
| 視頻壓縮 | H.265+ /H.265 / H.264 |
| 錄影解像度 | 8MP/5MP/4MP/3MP/1080P/960P/720P/D1 |
| Max. Decoding Capability | 4CH@5MP(25/30fps)/16CH@D1(25/30fps) |
| 入口頻寬 | 80 Mbps |
| 出口頻寬 | 80 Mbps |
| 碼流類型 | Video, Video & Audio Main Stream: 256Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps |
| Storage Method | Local hard drive and network |
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Playback Channel | 16CH synchronously playback |
| Search Mode | Time/ Date, Alarm Types, IVA Search Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left Up to IPC www.zkteco.com Line Crossing, Area Detection, Smart Motion Detection (base on |
| Regular Detection | Motion Detection / Video Shelter / Video Loss |
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
| Alarm Linkage | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
| Smart Search | Support smart search out target video by human and vehicle classification filtering TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P |
| Max. Online User | 5 |
| 瀏覽器 | Google Chrome/Microsoft Edge/Firefox/Safari/Opera |
| Management Platform | ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0 |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S/G, SDK, CGI, API |
| SATA Ports | 2 SATA Port, up to 8 TB capacity each |
| eSATA | N/A |
| Raid 0/1/5/6/10 | N/A |
| HDMI | 1*HDMI (4K) |
| VGA | 1*VGA(1920*1080/60Hz, 1280*1024/60Hz) |
| 網絡接口 | 1 RJ-45 Port (10/100/1000Mbps) |
| PoE Ports | 16 PoE, 10/100 Mbps self adaptive |
| 標準 | IEEE802.3af/at sefl adaptive |
| USB | 3*USB 2.0 |
| Audio Input/Output | 1/1 |
| Alarm Input/Output | N/A |
| RS-485 | Support |
| RS-232 | N/A |
| 供電 | DC 52V/4.6A NVR: 20W (without HDD) PoE ports: 15W for each output up to 250m transmission |
| Casing | 1.5U |
| 工作溫度 | -10°C to 55°C / 14°F to 131°F |
| 工作濕度 | 0% to 90% RH (Non-condensing) |
| Storage Humidity | 30% to 80% RH (Non-condensing) |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| 安裝 | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 325 * 246 * 50 (mm) |
| 淨重 | 3kg (without HDD) |
| 毛重 | 3.5kg (without HDD) |
| Certification | ISO9001, ISO14001, CE, FCC www.zkteco.com |
| Name | Model Description |
| BioSense Smart NVR | Z8516NFR-16P-S 16CH H.265+ PoE NVR, 2SATA V3. 0 06/16/2023 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright©2023 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

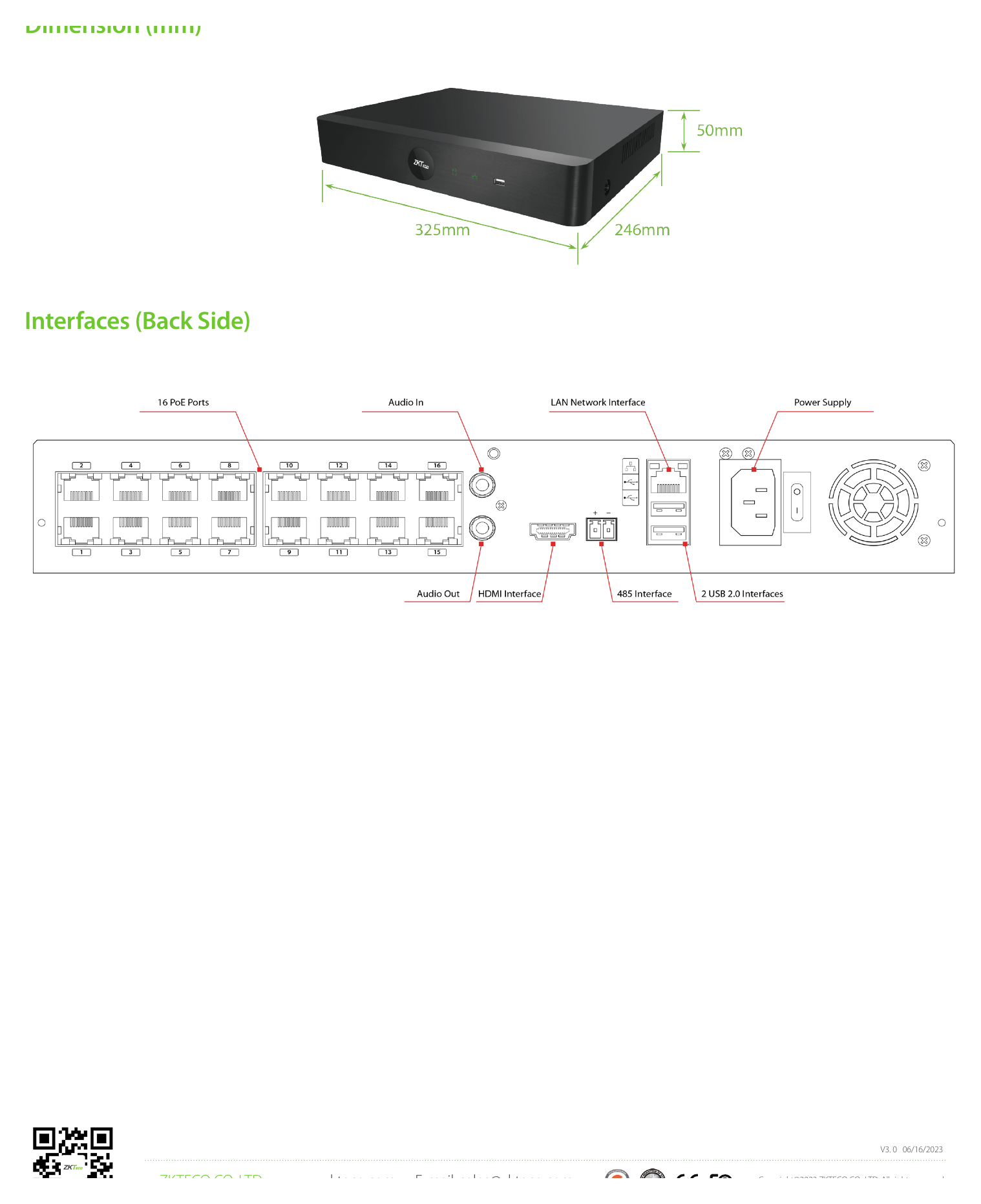

詳見圖示｜Unit: mm
