ZKTeco Z8636NMR-S 為H.265+ 36 Channels ZKBio Sense Smart Network Video Recorder，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 Z8636NMR-S 香港價格連安裝報價。
| Main Processor | Multi-core embedded processor |
|---|---|
| 操作系統 | Embedded LINUX |
| Operation Interface | Web browser & Local GUI |
| Max IPC Video Input | 36CH |
| Two-way Talk | Support |
| 音訊壓縮 | G.711u |
| Max Audio Input | 36CH by IPC |
| Third Party Camera Access | ONVIF & RTSP Live View |
| Display Split | 1/4/6/8/9/13/16/25/36CH 12MP(4000*3000)/8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) /1.3MP(1280*1024) / Resolution 1MP(1280*720) / D1(1024*768) Local AI OFF:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1(25/30fps) Live View Capability Local AI ON:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1(25/30fps) Recording |
| 視頻壓縮 | H.265+ / H.265 / H.264 |
| 錄影解像度 | 12MP/8MP/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF Local AI OFF:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1(25/30fps) Max. Decoding Capability Local AI ON:2CH@12MP, 4CH@8MP, 9CH@3MP, 13CH@2MP, 16CH@2MP, 36CH@D1(25/30fps) Local AI OFF:340Mbps Incoming Bandwidth Local AI ON:320Mbps Local AI OFF:256Mbps Outgoing Bandwidth Local AI ON:256Mbps |
| 碼流類型 | Video, Video & Audio Main Stream: 16Kbps ~ 12288Kbps Bit Rate Sub Stream: 50Kbps ~ 4096Kbps |
| Storage Method | Local hard drive and network |
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 1~ 10 min Playback and Backup |
| Playback Channel | 16CH synchronously playback |
| Search Mode | Time / Date, Alarm Types, IVA Search Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Playback Function Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote Intelligent Video Analytics Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle IVA by Camera classification), Target Counting, Object Lost/Left Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle Local IVA Functions classification), Target Counting, Object Lost/Left |
| IVA by Device(Number of Channels) | 4 |
| IVA by Camera (Number of Channels) | 36 IVA Alarm Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle Smart IVA Alarm classification), Target Counting, Object Lost/Left |
| Regular Detection | Motion Detection / Video Shelter / Video Loss www.zkteco.com |
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
| Alarm Linkage | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
| Smart Search | Support smart search out target video by human and vehicle classification filtering TCP/IP, HTTP,HTTPS, ONVIF, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4/IPv6, UDP, SSL/ Network Protocol TLS, PPPoE, WebSocket, ICMP, IGMP, RTP, RTCP, ARP |
| Max. Online User | 30 |
| 瀏覽器 | Google Chrome/Microsoft Edge/Firefox/Safari |
| Management Platform | ZKBio CVSecurity / CVAccess / AntarVis 2.0 |
| Mobile Application | AntarView Pro+ (iOS & Android) or AntarView Plus (iOS & Android) [depends on firmware version] |
| P2P Cloud Service | Support |
| Interoperability | ONVIF Profile S/T/G, SDK, CGI, API Storage & Auxiliary Interface |
| SATA Ports | 4 SATA Port, up to 16 TB capacity each (support Hot Swap) |
| eSATA | Support |
| Raid 0/1/5 | Support |
| HDMI | 1*HDMI (3840*2160@30Hz, 1920*1080/60Hz, 1280*1024/60Hz) |
| VGA | 1*VGA(1920*1080/60Hz, 1280*1024/60Hz) (support independent output) |
| 網絡接口 | 1*RJ-45 Port (10/100/1000 Mbps self adaptive ) |
| PoE Ports | N/A |
| 標準 | N/A |
| USB | 2*USB 2.0,1 * USB 3.0 |
| Audio Input/Output | 1 In / 1 Out |
| Alarm Input/Output | 16 In / 8 Out |
| RS-485 | Support |
| RS-232 | N/A Power |
| 供電 | AC220~240V, 50Hz~60Hz |
| 功耗 | ≤72W (without HDD) |
| Casing | 1.5U |
| 工作溫度 | -10°C ~ 55°C / 14°F ~ 131°F |
| 工作濕度 | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| 安裝 | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 439.6*376*75.7(mm) |
| 淨重 | 5.15KG |
| Certifications | CE-LVD; CE-EMC; FCC certification |
| Environment | CE-RoHS, WEEE, Reach self-declaration |
| Name | Model Description |
| ZKBio Sense Smart NVR | Z8636NMR-S 16CH H.265+ 4K NVR, 4SATA www.zkteco.com |

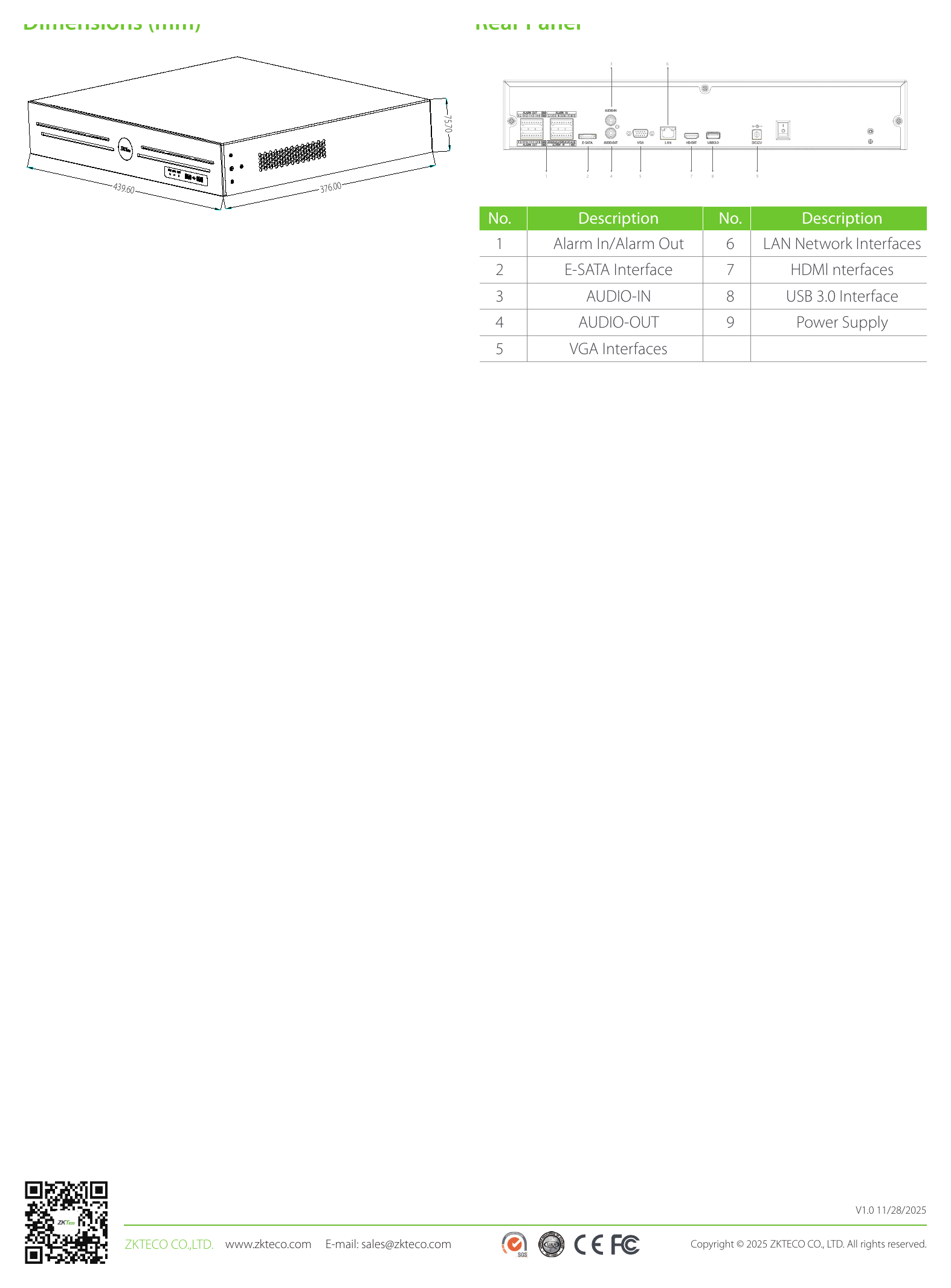

| Dimensions (mm) | Rear Panel 3 6 75.70 1 2 4 5 7 8 9 439.60 376.00 |
| No. | Description No. Description 1 Alarm In/Alarm Out 6 LAN Network Interfaces 2 E-SATA Interface 7 HDMl nterfaces 3 AUDIO-IN 8 USB 3.0 Interface 4 AUDIO-OUT 9 Power Supply 5 VGA Interfaces V1.0 11/28/2025 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco.com Copyright © 2025 ZKTECO CO., LTD. All rights reserved. www.zkteco.com |
* 規格以原廠最新 Datasheet 為準。
詳見圖示｜Unit: mm
