| watches, jewellery, coins and buttons. | 18 64 41 17 63 40 16 62 39 It can accurately detect multiple metal objects 15 61 38 simultaneously, from the shoe to the crossbeam. 14 60 37 13 59 36 12 58 45 |
|---|
| Clear threat indication with synchronous | 11 57 34 |
|---|
| sound alert and LED indicator, 4 sets of | 10 56 33 LEDs (red) are evenly distributed on the left 9 55 32 |
|---|
| and right door panels. | 8 54 31 7 53 30 6 52 29 |
|---|
| It is harmless to the human body, heart | 5 51 28 pacemakers, pregnant women, magnetic floppy 4 50 27 |
|---|
| disks and recording tapes. | 3 49 26 2 48 25 1 47 24 Detection area Main Interface |
|---|
| Device ID | Date/Time Working Channel Entry entering the Walk Through Metal Detector. |
|---|
| Exit | Signal Strength |
|---|
| leaving the Walk Through | Display Metal Detector. Alarm Touch Area |
|---|
| Alarm Rate | Total |
|---|
| Percentage of the number | Count the total number of |
|---|
| number of people entering | of alarms to the total. people entering and exiting. and the number of exiting. |
|---|
| Display | 7-inch touch screen |
|---|
| Physical Keypad | 5 keys |
|---|
| Detection Zone | 12/24/33/46/69 zones mode adjustable |
|---|
| Sensitivity Level | 500 levels |
|---|
| Channel | 100 |
|---|
| Smallest Metal Objects Detected | Φ22.25*T1.85 mm(Steel-nickel alloy) |
|---|
| Maximum Detection Distance | Vertical 20-2000mm 16 types of alarm tones (adjustable) 0-100 levels of volume adjustable (Maximum volume 80 dB) 4 sets of LEDs (red) are evenly distributed on the left and right door panels LED (Steady red= metal contraband detected) LED (Steady green = passing status) |
|---|
| Traffic Indicator | LED (Steady red = alarming status) LED (Steady yellow = non-passing status) |
|---|
| Throughput | > 40 persons per minute |
|---|
| Self-diagnosis Program | Yes |
|---|
| Detection Mode | Automatic Detection Mode/ Infrared Detection Mode (default) |
|---|
| Number of IR Groups | 2 |
|---|
| Detected Contraband | Ferrous and non-ferrous metal weapons |
|---|
| Enclosure Material | Flame Retardant ABS Polymer, Three-ply Board, PVC |
|---|
| 供電 | AC100V to 240V (DC15V/4.8A) |
|---|
| Input Voltage | DC15V, POE (optional) |
|---|
| Operating Current | 1.3A |
|---|
| Operating Power | 20W |
|---|
| Operating Time (Estimated) | 24/7 operation capability (continuous operation) |
|---|
| Operating Frequency | 5.7KHz ~ 9.6KHz |
|---|
| 工作溫度 | -20°C ~ 55°C |
|---|
| 儲存溫度 | -25°C ~ 60°C |
|---|
| 工作濕度 | < 95% RH (non-condensing) N/A (waterproof and dustproof) N/A (vandal resistant) |
|---|
| 使用環境 | Indoor, Semi-outdoor (optional) |
|---|

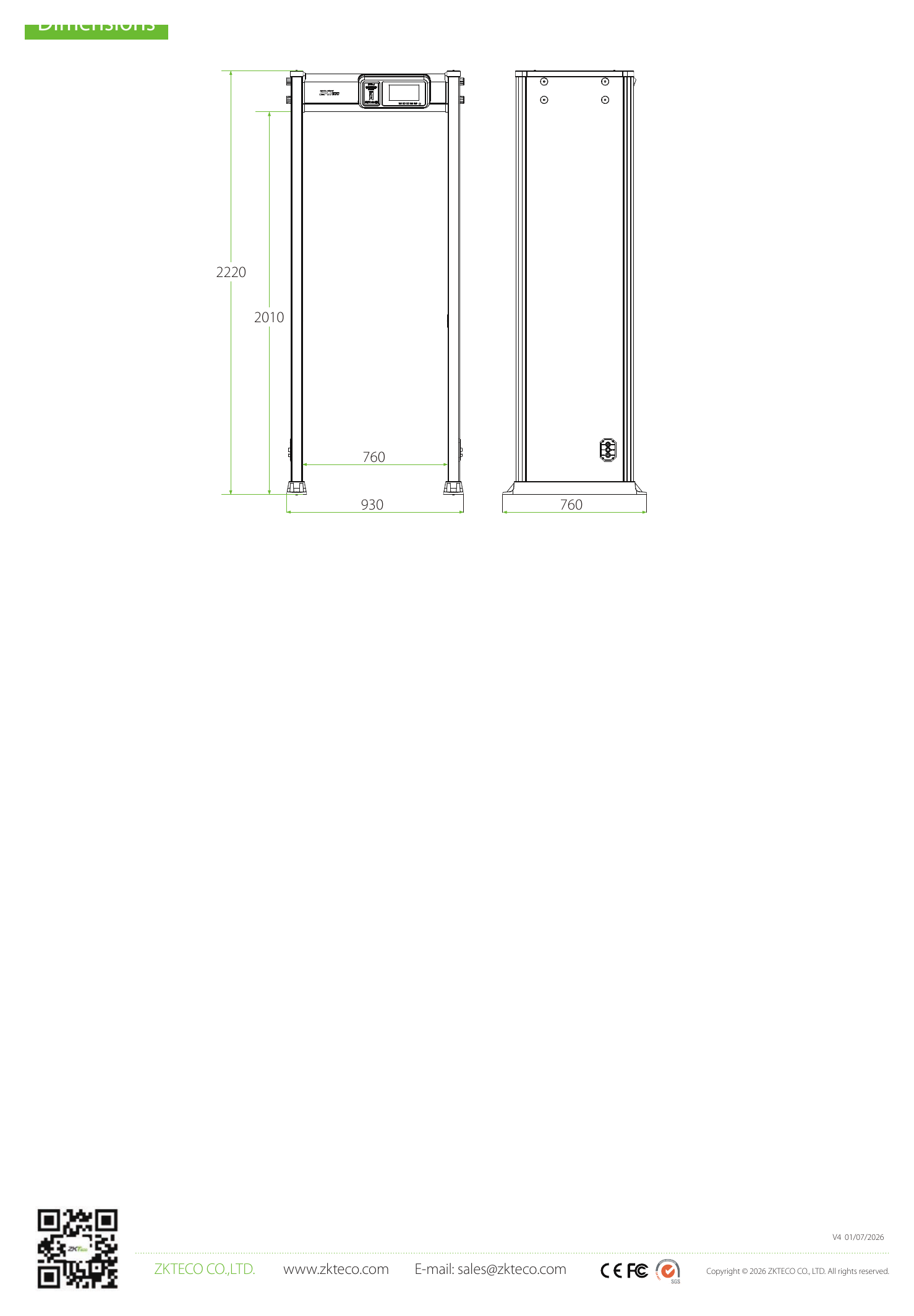

| Dimensions (L*W*H) | 2220 * 930 * 760 (mm) |
|---|
| Lane Size (L*W*H) | 2010 * 760 * 760 (mm) |
|---|
| Dimensions with Packaging (L*W*H) | 2300 * 335 *800 (mm) Gross Weight: 70kg Net Weight: 60kg Relay Output: YES Network Interface: YES |
|---|
| Remote Control | YES |
|---|
| Certifications | CE-EMC, CE-LVD, FCC sDOC 2220 2010 760 930 760 V4 01/07/2026 |
|---|
