ZKTeco ZKIVA-EDGEX1 為8/16-Channel Video Analytics with Advanced Edge Computing，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 ZKIVA-EDGEX1 香港價格連安裝報價。
| Main Processor | Embedded Quad-core Cortex 1.3GHz high performance microprocessor |
|---|---|
| NPU | 28.8Tops@INT4 |
| 操作系統 | Embedded LINUX |
| Memory | 8GB DDR4 |
| Onboard Storage | 32GB eMMC |
| Compression | H.265 / H.264 |
| Max IPC Video Input | 8 CH 16 CH |
| Display Split | 1/4/9 CH |
| 視頻壓縮 | H.265 / H.264 |
| Input Resolution | 8MP(3840*2160) / 4MP(2560*1440) / 2MP(1920*1080) |
| Max. Channel Decoding Capability | 4CH*8MP or 8CH*4MP or 8CH*2MP IPC @25fps 4CH*8MP or 8CH*4MP or 16CH*2MP IPC @25fps |
| Max. Video Analytics Capability | 8CH*2MP(1080P)@25fps 16CH*2MP(1080P)@25fps |
| JPEG Capturing Capability | 3840*2160 @80FPS |
| Stream Connecting Protocol | RTSP |
| Platform Software | ZKBio CVSecurity V6.4.0_R & above |
| Face | Face Template Capture, Facial Authentication, Face Attribute Template Capture |
| Face Template | Up to 300,000 |
| Person | Human Capture Template, Body Attribute Template |
| Vehicle | Motor Vehicle Capture, Motor Vehicle Plate Capture, Non-Motor Vehicle Capture Face-to Human Relevant Binding, Human-to-Non Vehicle Relevant Binding, Vehicle-to-Plate Relevant Binding Perimeter Alert: wander, scaled the fence, intrusion, tripwire, climbing, parking prohibited, vehicle exit. Behavior Alert: running, falling, smoking, phone call, watch phone, sleeping on duty, leaving post duty, pers |
| Advance Algorithms | Kitchen Scenario Surveillance Algorithms: mice detection, garbage can uncovered detection, chef's cloth detection, chef's hat detection, chef's respirator detection, rubber glove detection Petrol Station Scenario: static wire detection, discharge oil pipe detection, oil pipe break detection, oil machine side cover openning detection, oil tank truck detection |
| Algorithm Categories | Default Standard Algorithms |
| Face & Person & Vehicle | 8(CH)*1(CAT) 16(CH)*1(CAT) |
| Video Structure | 8(CH)*1(CAT) 16(CH)*1(CAT) Basic Algorithms |
| Perimeter Alert | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| Behavior Alert | 8(CH)*4(CAT) 12(CH)*4(CAT) www.zkteco.com |
| Object Detection | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| People Counting | 8(CH)*2(CAT) 16(CH)*2(CAT) Advance Algorithms |
| Production Safety Scenario | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| Kitchen Scenario Surveillance | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| Smart Community | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| Petrol Station Scenario | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| City Management Scenario | 8(CH)*4(CAT) 16(CH)*4(CAT) |
| Smart Site | 8(CH)*3(CAT) 16(CH)*3(CAT) |
| Algorithm Category Combination | maximum 4 categories (each category no more than 4 types) |
| HDMI | 1*HDMI (max. 1080P) |
| 網絡接口 | 2 RJ-45 Port (10/100/1000Mbps self-adaptive) |
| USB | 1*USB 2.0; 1*USB 3.0 |
| Audio Input/Output | 1/1 |
| Alarm Input/Output | 2/2 |
| RS-485 | 1 |
| RS-232 | 1 |
| Reset Button | Support Power |
| Power Indicator(RUN) | 1 (red+green dual color) |
| 供電 | DC 12V ± 10% / 2A |
| 功耗 | 8W±10% |
| 工作溫度 | -20°C ~ +60°C |
| 工作濕度 | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 10% ~ 90% RH (non-condensing) |
| 安裝 | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 232 x 217 x 75 (mm) |
| 淨重 | 1.95 kg |
| 毛重 | 2.54 kg |
| Certifications | ISO 14001, ISO 9001, CE, FCC |
| Name | Model Description 8-channel intelligent video analytics edge ZKIVA-EDGE X1 8-channel computing server Edge Computing Server 16-channel intelligent video analytics edge ZKIVA-EDGE X1 16-channel computing server www.zkteco.com |
| Dimension (mm) | Ports Description Remarks |
| 音訊輸入 | pink 3.5mm jack For audio input |
| Audio OUT | green 3.5mm jack For audio output |
| ALARM & RS485 | 12pin 3.96mm See below |
| & RS232 | accessory Support |
| WAN (main) | RJ45 75 10/100/1000Mbps Support |
| LAN | RJ45 10/100/1000Mbps |
| 重設 | For reset to factory default 1 B Alarm in 1, 2; |
| ALARM IN | 2 RS485 RS485 GND for ground connect |
| GND | A |
| On-off 1 | TX |
| ALARM OUT | Alarm out On-off 1, 2 RS232 RS232 |
| On-off 2 | RX RS232 1 TX RX 2 RESET ALARM OUT ALARM IN 2 A B 1 |
| LINE IN LINE OUT | RS485 WAN LAN HDMI USB DC12V |
| Commercial Building | Smart Campus Smart Community Bank |
| Factory | Gym and Fitness Bus Station Museum V3. 2 05/22/2025 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright©2025 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

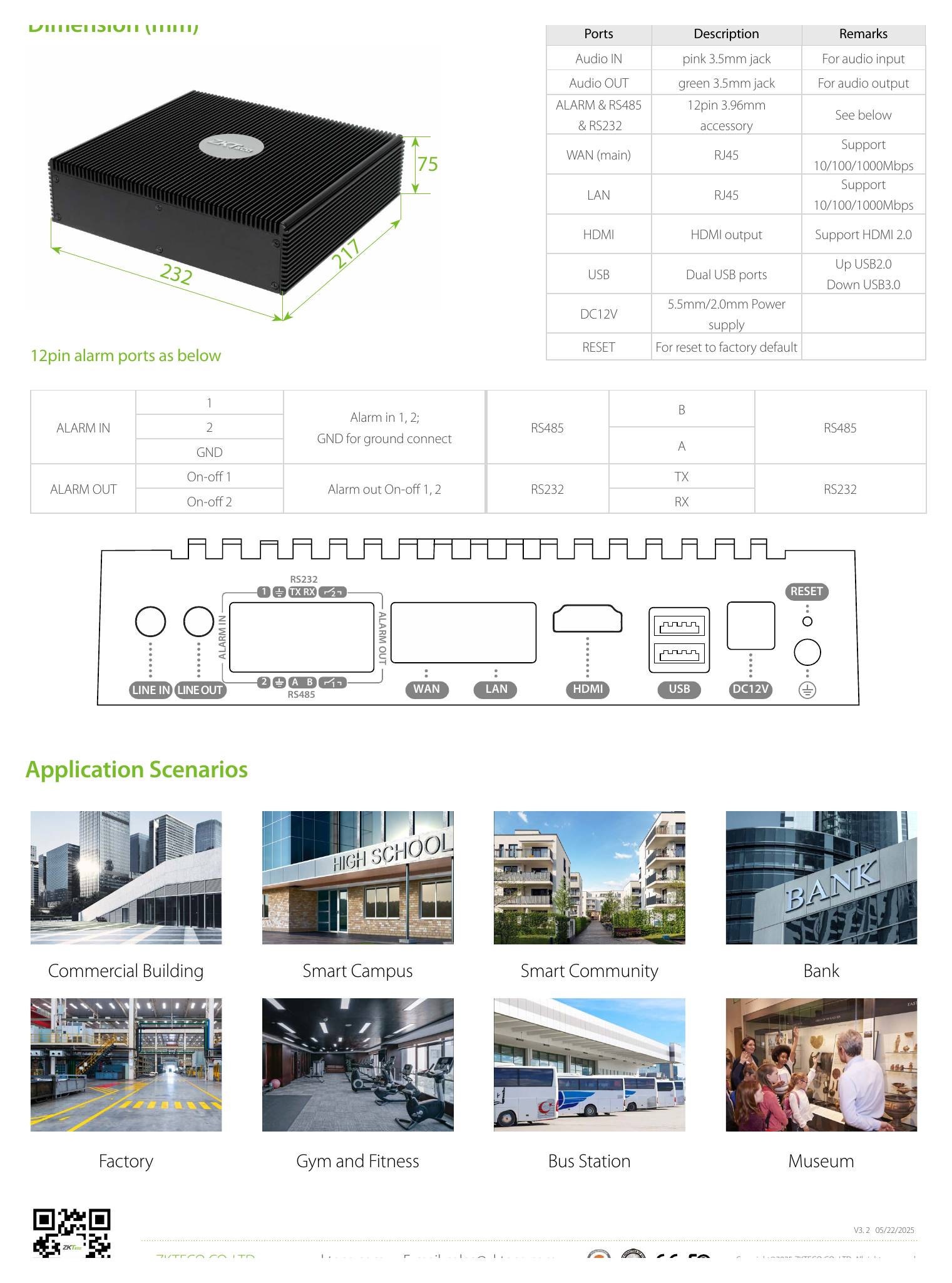

詳見圖示｜Unit: mm
ZKIVA-EDGEX1 ZKTeco 8/16-Channel Video Analytics with Advanced Edge Computing亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，ZKIVA-EDGEX1 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 ZKIVA-EDGEX1 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
ZKIVA-EDGEX1 ZKTeco 8/16-Channel Video Analytics with Advanced Edge Computing適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
學校、補習社、校園裝門禁系統，校門人臉識別出入、課室權限管理、家長接送通知、訪客登記，師生考勤對接、安全管控，門禁系統安裝上門報價。免費上門度尺、按規模報價，旺角、觀塘項目即約勘察。
WhatsApp 查詢 →診所、醫療中心、化驗所裝門禁系統，藥房、病歷室、儀器房分區權限管控，刷卡指紋出入記錄追溯、員工考勤，安全合規門禁系統安裝上門報價。專業團隊上門評估，中環、尖沙咀場地歡迎洽談報價。
WhatsApp 查詢 →大廈、商業大廈裝門禁系統，大堂閘機、升降機樓層控制聯動、人臉識別通行，多租戶分區權限、訪客登記、保安中央管理，門禁系統安裝一條龍上門報價。一站式勘測安裝，佐敦、油麻地各區即日約見報價。
WhatsApp 查詢 →銀行、財務、找換店裝門禁系統，金庫、後勤、機房雙重認證門禁，分區權限、出入記錄追溯、防尾隨，高保安等級門禁系統安裝上門報價。免費評估方案、即時報價，荃灣、沙田一帶歡迎查詢。
WhatsApp 查詢 →村屋、獨立屋、丁屋裝門禁系統，智能門鎖、可視對講、人臉識別、手機 App 遠程開門，圍欄閘門電鎖、訪客臨時碼，門禁系統安裝上門報價。免費上門勘察、明碼實價報價，屯門、元朗一帶即日約期。
WhatsApp 查詢 →連鎖店、連鎖品牌裝門禁系統，多分店聯網集中權限管理、人臉識別出入、員工考勤統一後台，跨店數據對接，門禁系統安裝上門報價。全港覆蓋上門安裝，將軍澳、銅鑼灣各區歡迎致電查詢。
WhatsApp 查詢 →查看更多門禁系統適用場景，請參閱 門禁系統安裝工程。
如需整套門禁系統方案，請參閱 門禁系統安裝工程。
