ARUBA DS-AP103H 網絡設備安裝・保養

Name: ARUBA DS-AP103H ARUBA AP-103H
Brand: aruba
SKU: DS-AP103H

產品簡介

aruba DS-AP103H 為ARUBA AP-103H，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-AP103H 香港價格連安裝報價。

Back：• Operating: --Temperature: 0° C to +40° C (+32° F to +104°
or 8.3 watts DC：• EMC Directive 2014/30/EU • Maximum (worst-case) power cons
MOUNTING：operating temperature • Included with AP: --Mount plate for
WARRANTY：PRODUCT SHIPS WITH
• Aruba limited lifetime warranty：• AP-103H Hospitality AP • Single-gang universal mount plate

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

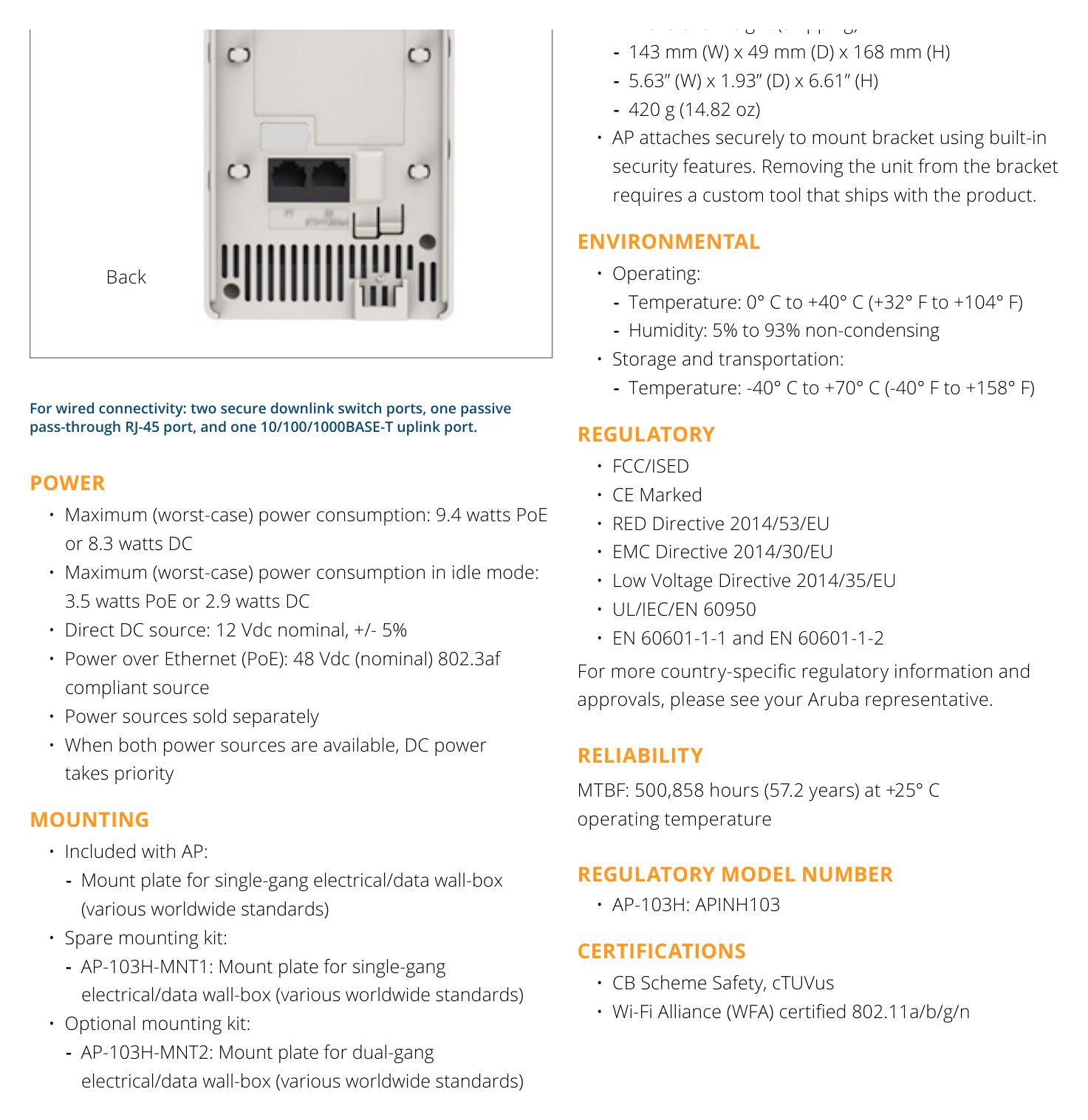

詳細規格

Back	• Operating: --Temperature: 0° C to +40° C (+32° F to +104° F) --Humidity: 5% to 93% non-condensing • Storage and transportation: --Temperature: -40° C to +70° C (-40° F to +158° F) REGULATORY • FCC/ISED • CE Marked • Maximum (worst-case) power consumption: 9.4 watts PoE • RED Directive 2014/53/EU
or 8.3 watts DC	• EMC Directive 2014/30/EU • Maximum (worst-case) power consumption in idle mode: • Low Voltage Directive 2014/35/EU 3.5 watts PoE or 2.9 watts DC • UL/IEC/EN 60950 • Direct DC source: 12 Vdc nominal, +/- 5% • EN 60601-1-1 and EN 60601-1-2 • Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af For more country-specific regulatory information and compliant source approvals, please see your Aruba rep
MOUNTING	operating temperature • Included with AP: --Mount plate for single-gang electrical/data wall-box REGULATORY MODEL NUMBER (various worldwide standards) • AP-103H: APINH103 • Spare mounting kit: CERTIFICATIONS --AP-103H-MNT1: Mount plate for single-gang • CB Scheme Safety, cTUVus electrical/data wall-box (various worldwide standards) • Wi-Fi Alliance (WFA) certified 802.11a/b/g/n • Optional mounting
WARRANTY	PRODUCT SHIPS WITH
• Aruba limited lifetime warranty	• AP-103H Hospitality AP • Single-gang universal mount plate • Two mount screws (#6-32 x 1” machine screw)
• ArubaOS 6.4.1.0	• Tool for secure mount mechanism • Installation guide RF PERFORMANCE TABLE
Maximum transmit power (dBm)	Receiver sensitivity (dBm)
per transmit chain	per receive chain 2.4 GHz 802.11b 1 Mbps 18.0 -92.0 11 Mbps 18.0 -89.0 802.11g 6 Mbps 18.0 -88.0 54 Mbps 16.0 -75.0 802.11n HT20
MCS0/8	18.0 -88.0
MCS7/15	14.0 -71.0 802.11n HT40
Part Number	Description
JW157A	Aruba AP-103H Hospitality 802.11n Dual 2x2:2 Radio Integrated Antenna AP
JW036A	AP-103H-MNT1 AP Mount Kit for AP-103H Single Gang Wall Box Mount Adapter
JW037A	AP-103H-MNT2 AP Mount Kit for AP-103H Dual Gang Wall Box Mount Adapter
JX989A	AP-AC-12V30A 12V/30W AC/DC Desktop Style 1.7/4.0/9.5mm Circular 90 Deg Plug DoE Level VI Adapter
JW627A	PD-3510G-AC 15.4W 802.3af PoE 10/100/1000Base-T Ethernet Midspan Injector
JW071A	AP-CBL-SER AP Proprietary DB9 Female Serial Adapter Cable
JW072A	AP-CBL-ETH10 10-pk Short Ethernet Cable 3333 SCOTT BLVD \| SANTA CLARA, CA 95054 1.844.473.2782 \| T: 1.408.227.4500 \| FAX: 1.408.227.4550 \| INFO@ARUBANETWORKS.COM
www.arubanetworks.com	DS_AP103H_120717
