ARUBA DS-SPEC-SHEET-EDGECONNECT-10104 網絡設備安裝・保養

Name: ARUBA DS-SPEC-SHEET-EDGECONNECT-10104 ARUBA EDGECONNECT
Brand: aruba
SKU: DS-SPEC-SHEET-EDGECONNECT-10104

產品簡介

aruba DS-SPEC-SHEET-EDGECONNECT-10104 為ARUBA EDGECONNECT，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-SPEC-SHEET-EDGECONNECT-10104 香港價格連安裝報價。

Simultaneous connections：256,000 Resiliency
Drives：Single
Power supplies：Single
Network：4 ports supporting any combination of WAN and LAN including
Routing：BGP and OSPF support

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-SPEC-SHEET-EDGECONNECT-10104 aruba ARUBA EDGECONNECT 產品圖片

詳細規格

Simultaneous connections	256,000 Resiliency
Drives	Single
Power supplies	Single
Network	4 ports supporting any combination of WAN and LAN including support for up to 64 802.1q VLANs. WAN link redundancy supported via business intent overlays with multiple link bonding options. LAN-side protection includes VRRP and BGP. Multiple IPSLA options included.
Routing	BGP and OSPF support
RAM	ECC memory
MTBF	63 years Security
Disk encryption	128-bit AES
Network encryption	IPsec (256-bit AES) Connectivity
LAN/WAN ethernet	4 x 10/100/1000 LAN/WAN (2 LAN/2 WAN) as per IEEE 802.3i, 802.3u, 802.3ab, 802.1Q
Management	Console port (RJ45, microUSB)
USB	1 x USB 3.0 WAN Optimization
Recommended Boost up to	200 Mbps ARUBA EDGECONNECT SD-WAN 10104 In-line as next-hop gateway at site perimeter, connected to a broadband internet modem for zero touch provisioning, with WAN hardening or zone-based stateful firewall
AC Requirement	100-240VAC / 50-60Hz / 48 W / 163.78 BTU

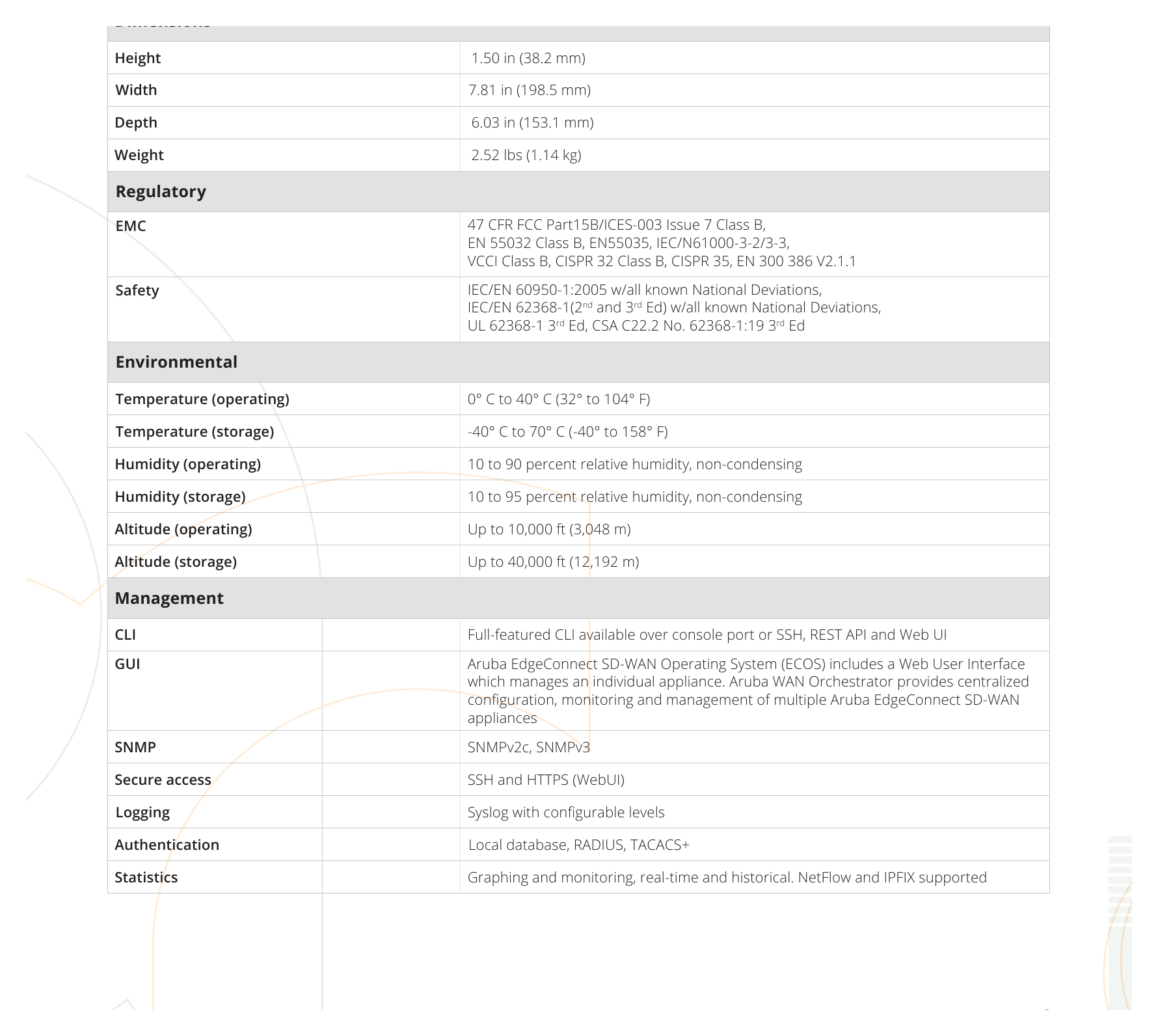

Height	1.50 in (38.2 mm)
Width	7.81 in (198.5 mm)
Depth	6.03 in (153.1 mm)
重量	2.52 lbs (1.14 kg)
EMC	47 CFR FCC Part15B/ICES-003 Issue 7 Class B, EN 55032 Class B, EN55035, IEC/N61000-3-2/3-3, VCCI Class B, CISPR 32 Class B, CISPR 35, EN 300 386 V2.1.1
Safety	IEC/EN 60950-1:2005 w/all known National Deviations, IEC/EN 62368-1(2nd and 3rd Ed) w/all known National Deviations, UL 62368-1 3rd Ed, CSA C22.2 No. 62368-1:19 3rd Ed
Temperature (operating)	0° C to 40° C (32° to 104° F)
Temperature (storage)	-40° C to 70° C (-40° to 158° F)
Humidity (operating)	10 to 90 percent relative humidity, non-condensing
Humidity (storage)	10 to 95 percent relative humidity, non-condensing
Altitude (operating)	Up to 10,000 ft (3,048 m)
Altitude (storage)	Up to 40,000 ft (12,192 m)
CLI	Full-featured CLI available over console port or SSH, REST API and Web UI
GUI	Aruba EdgeConnect SD-WAN Operating System (ECOS) includes a Web User Interface which manages an individual appliance. Aruba WAN Orchestrator provides centralized configuration, monitoring and management of multiple Aruba EdgeConnect SD-WAN appliances
SNMP	SNMPv2c, SNMPv3
Secure access	SSH and HTTPS (WebUI)
Logging	Syslog with configurable levels
Authentication	Local database, RADIUS, TACACS+
Statistics	Graphing and monitoring, real-time and historical. NetFlow and IPFIX supported ARUBA EDGECONNECT SD-WAN 10104
Product Type	Aruba SKU Description
R9D72A	Aruba EC-10104 SD-WAN Gateway
R9Y08A	Aruba EC-10104 Accessory Kit
R9Y46A	Aruba EC-10104 Power Adapter
R9H42A	Aruba EC-10104 Rack Mount Kit © Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. He
