| SMD Plus | need to invest in a new camera. |
|---|
| effective and accurate alarm. | and UTP, max. 700 m for 4K/4MP, 800 m for 1080p and 1200 m for 720p. |
|---|
| Smart Dual Illuminators | Audio over Coax www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback 1/4/9 |
|---|
| System | Backup Method USB device and network |
|---|
| Main Processor | Industrial-grade processor Instant playback, general playback, event playback, tag Playback Mode playback |
|---|
| 操作系統 | Embedded Linux Alarm |
|---|
| Operating Interface | Web; Local GUI |
|---|
| General Alarm | Motion detection, video loss, tampering |
|---|
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and Record, snapshot (panoramic), IPC external alarm output, |
|---|
| lighting condition change | Alarm Linkage access controller, voice prompt, buzzer, log, preset, email |
|---|
| Audio and Video | Ports 8 channels, BNC: adaptive access by default; HDCVI, AHD, 1-channel RCA |
|---|
| Analog Camera Input | Audio Input |
|---|
| TVI and CVBS access can be configured. | 8-channel BNC (Coaxial Audio) 1. CVI: 1080p@ 25/30 fps, 720p@25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@25/30 fps |
|---|
| 音訊輸出 | 1-channel RCA 3. AHD: 1080p@ 25/30 fps, 720p@25/30 fps 4. CVBS: PAL/NTSC Two-way Talk Yes (share the same audio input with the first channel) |
|---|
| Up to 10 channels of IPC access | 1 SATA port, up to 16 TB. The maximum HDD capacity HDD Interface 2 IP channels by default + 8 channels (analog channels varies with environment temperature. are converted to IP channels) |
|---|
| IP Camera Input | incoming bandwidth: 32 Mbps, recording bandwidth: 32 RS-485 1 port, for PTZ control Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing USB 2 USB ports (USB 2.0) channels, the AI Function (SMD) will be disabled. |
|---|
| HDMI | 1 Main Stream: |
|---|
| the 1st channel 1080N/720p(1 fps–25/30 | VGA 1 fps), others 1080N/720p(1 fps–15fps); 960H/D1/CIF/(1 fps–25/30 fps) |
|---|
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) Sub stream: CIF (1fps–7 fps) |
|---|
| Dual-stream | Yes |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| 視頻碼率 | 32 kbps–6144 kbps |
|---|
| 功耗 | <7 W |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 淨重 | 0.89 kg (1.96 lb) |
|---|
| 音訊碼率 | 64 kbps |
|---|
| 毛重 | 1.40 kg (3.09 lb) 1 HDMI, 1 VGA |
|---|
| Video Output | 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × HDMI/VGA : 1920 × 1080, 1280 × 1024, 1280 × 720 Product Dimensions 1.87'') (W × D × H) When IP extension mode not enabled: 1/4/8/9 |
|---|
| Multi-screen Display | 333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40" × When IP extension mode enabled: 1/4/8/9/16 Packaging Dimensions 3.50") (W × D × H) |
|---|
| Third-party Camera | ONVIF; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; |
|---|
| Access | Canon; Samsung Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) |
|---|
| Compression Standard | Operating Humidity 0%–90% (RH) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 Installation Desktop |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 Certifications CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; |
|---|
| Network | EN50130; EN 55024 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
|---|
| Mobile Phone Access | iOS, Android Ordering Information |
|---|
| Interoperability | ONVIF 21.06; CGI Conformant Type Model Description Chrome 8 Channels Compact 1U WizSense Digital Video |
|---|
| Browser | IE9 or later DH-XVR4108HS-I |
|---|
| Firefox | WizSense XVR Recorder |
|---|
| Network Mode | Single-address mode |
|---|
| Record Mode | General, motion detection, alarm www.dahuasecurity.com |
|---|

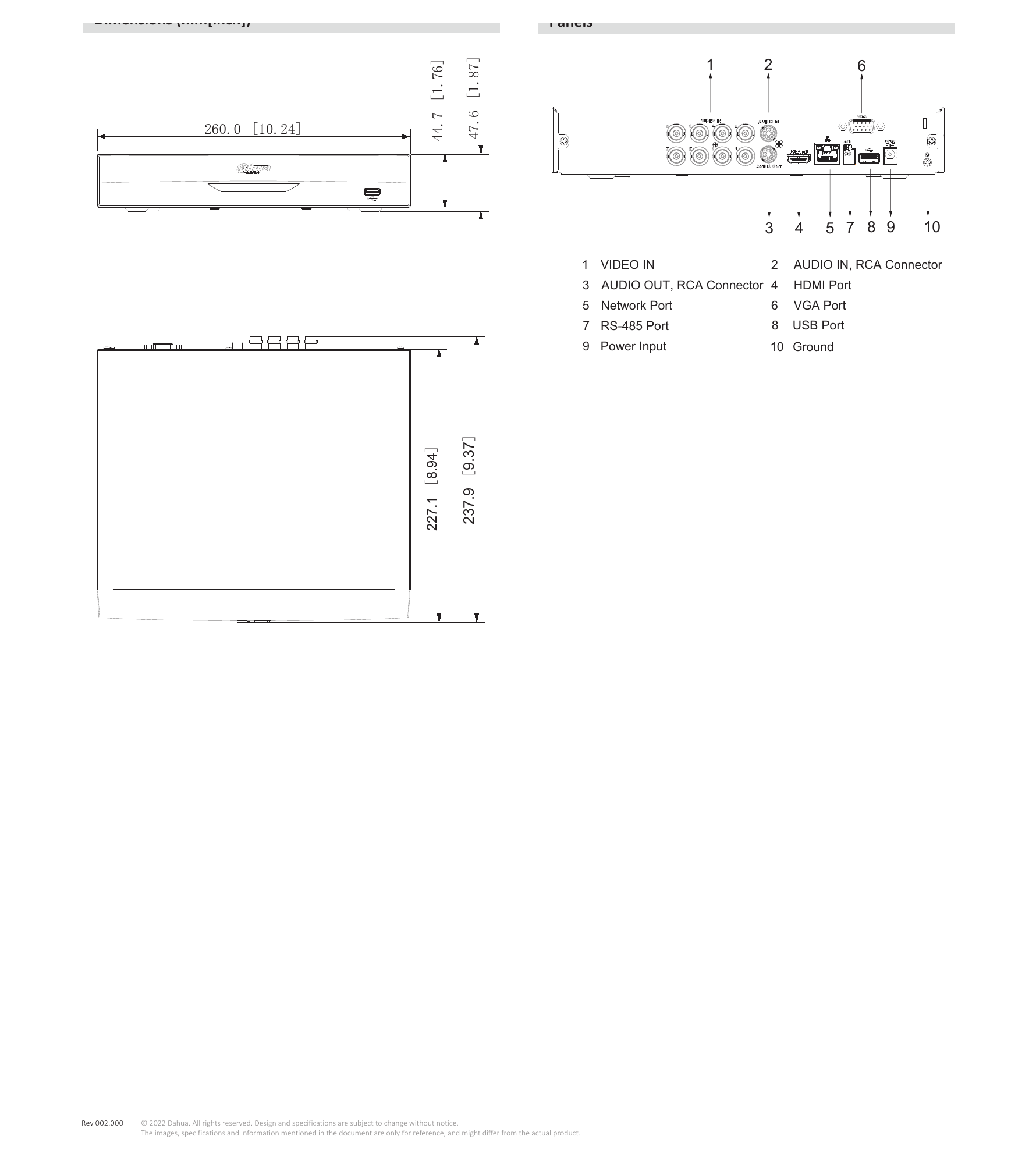

| Dimensions (mm[inch]) | Panels 1 2 6 >@ >@ mm[inch] >@ 3 4 5 7 8 9 10 1 VIDEO IN 2 AUDIO IN, RCA Connector 3 AUDIO OUT, RCA Connector 4 HDMI Port 5 Network Port 6 VGA Port 7 RS-485 Port 8 USB Port 9 Power Input 10 Ground 237.9 >9.37@ 227.1 >8.94@ |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
