| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.8" CMOS WDR 120dB |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP Gain Control AGC |
|---|
| Scanning System | Progressive Noise Reduction 2D / 3D |
|---|
| PAL: 1/3s~1/100000s | White Balance Auto / Manual Electronic Shutter Speed NTSC: 1/4s~1/100000s |
|---|
| Smart IR | Auto / Manual |
|---|
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| S/N Ratio | More than 65dB Certifications |
|---|
| IR Distance | Up to 40m (131feet) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR On/Off Control | Auto / Manual UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 2 |
|---|
| 鏡頭 | Audio Interface N/A |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Eelectrical |
|---|
| Mount Type | Board-in Power Supply POC/12V DC ±30% |
|---|
| 焦距 | 2.7-13.5mm Power Consumption Max. 6.7W (12V DC, IR on) |
|---|
| Max Aperture | F1.6 Power Output 12V DC, Max.2W |
|---|
| Angle of View | H: 108.7°~28.7° Environmental |
|---|
| Focus Control | Auto / Manual -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH * -30°C ~ +45°C (-22°F ~ +113°F) With 2W power Operating Conditions 200mm output. Close Focus Distance 7.87'' * Start up should be done at above -30°C (-22°F) |
|---|
| DORI Distance | Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH Ingress Protection & Vandal *Note: The DORI distance is a “general proximity” of distance which makes it easy to IP67 & IK10 Resistance pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Construction criteria for Det |
|---|
| Casing | Aluminium |
|---|
| DORI 偵測距離 | Distance |
|---|
| Definition | Dimensions Φ122mm×88.9mm (Φ4.8"×3.5") |
|---|
| Wide | Tele |
|---|
| 淨重 | 0.46kg (1.01lb) |
|---|
| Detect | 25px/m (8px/ft) 44m(144ft) 153m(502ft) |
|---|
| 毛重 | 0.56kg (1.23lb) |
|---|
| Observe | 63px/m (19px/ft) 18m(59ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(16ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P 1-channel BNC high definition video output / CVBS Video Output video output |
|---|
| Day/Night | Auto (ICR) / Manual www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDBW2241RP- | 2MP Starlight HDCVI POC IR Dome |
|---|
| Z-POC | Camera, PAL 2MP Camera |
|---|
| DH-HAC-HDBW2241RN- | 2MP Starlight HDCVI POC IR Dome |
|---|
| PFB203W | PFB203W + PFA152-E |
|---|
| PFB200C | Inceiling mount (For use alone) Junction box (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFA137 PFA152-E junction box) |
|---|
| PFA200W | Rain Shade of Dome Camera Accessories Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| Wall Mount with Rain Shade | Ceiling Mount (Extensible) |
|---|
| Ceiling Mount Bracket of Mini Dome | PFA137+PFA200W PFA106+PFB220C PFB220C & Eyeball Camera |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter |
|---|
| Accessories | Pole Mount with Rain Shade |
|---|
| Optional: | PFA137+PFA200W+PFA152-E |
|---|

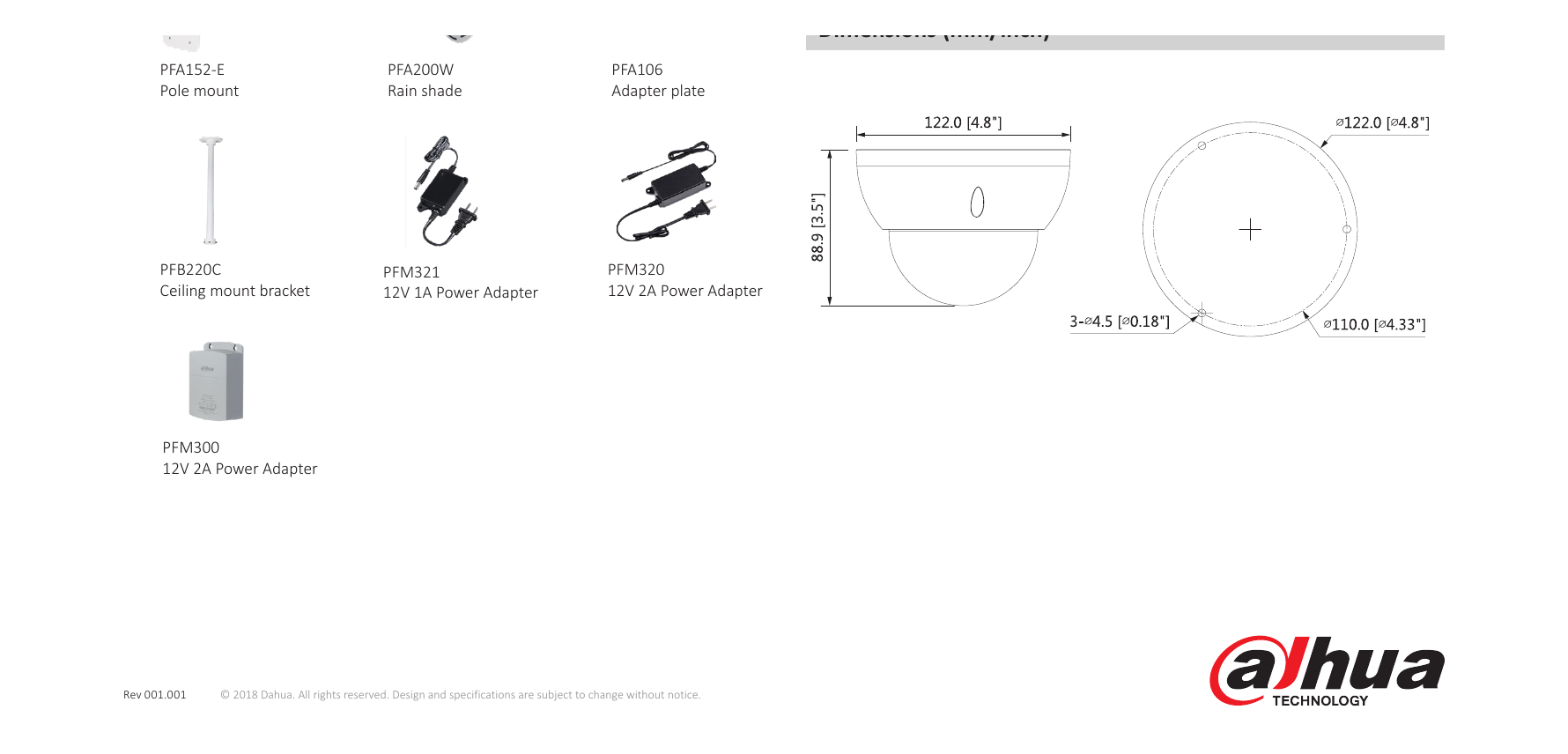

| Junction box | Inceiling mount Junction box Dimensions (mm/inch) |
|---|
| PFA152-E | PFA200W PFA106 |
|---|
| Pole mount | Rain shade Adapter plate |
|---|
| PFB220C | PFM321 PFM320 |
|---|
| Ceiling mount bracket | 12V 1A Power Adapter 12V 2A Power Adapter PFM300 12V 2A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
