| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1937(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1/3s~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.3, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm Power Supply 12V DC ±25% |
|---|
| Max Aperture | F1.3 Power Consumption Max 5.4W (12V DC, IR on) |
|---|
| Angle of View | H: 102°~29° Environmental |
|---|
| Focus Control | Auto / Manual -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 200mm Close Focus Distance 7.87'' Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 & IK10 Resistance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") Distance |
|---|
| 淨重 | 0.47kg (1.04lb) |
|---|
| Wide | Tele |
|---|
| 毛重 | 0.62kg (1.37lb) |
|---|
| Detect | 25px/m (8px/ft) 47m(154ft) 153m(502ft) |
|---|
| Observe | 63px/m (19px/ft) 19m(62ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(16ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|
| 類型 | Part Number Description 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2231RP-Z Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2231RN-Z Camera, NTSC |
|---|
| PFB203W | PFB203W + PFA152-E |
|---|
| PFB200C | Inceiling mount (For use alone) Junction box (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFA137 PFA152-E junction box) |
|---|
| PFA200W | Rain Shade of Dome Camera Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| Wall Mount with Rain Shade | Ceiling Mount (Extensible) |
|---|
| Ceiling Mount Bracket of Mini Dome | PFA137+PFA200W PFA106+PFB220C PFB220C |
|---|
| Accessories | & Eyeball Camera |
|---|
| PFM820 | UTC Controller |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun with Power 16 Channel Passive HDCVI Balun PFM809-4MP |
|---|
| Receiver | Pole Mount with Rain Shade |
|---|
| PFM321 | 12V 1A Power Adapter PFA137+PFA200W+PFA152-E |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|

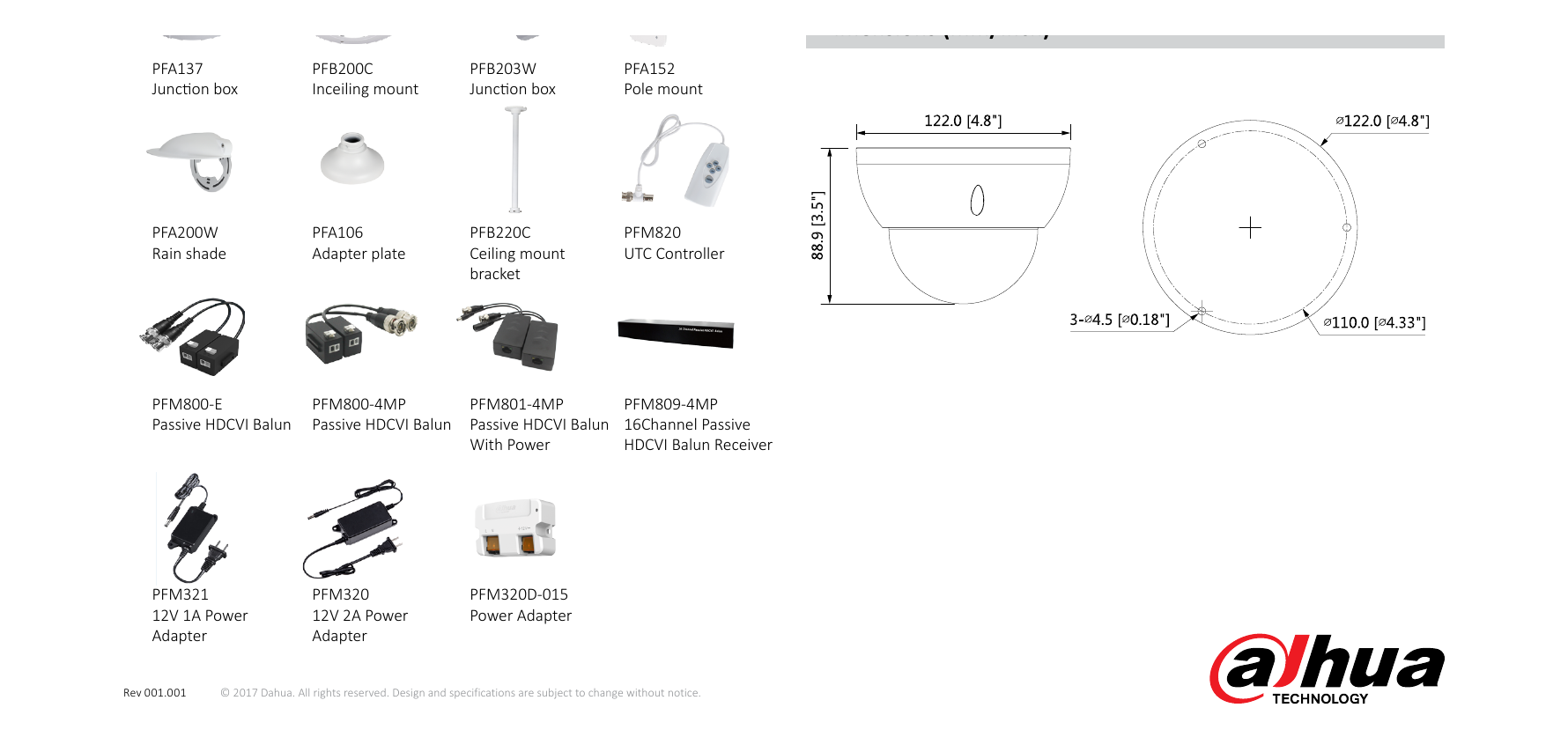

| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: Dimensions (mm/inch) |
|---|
| Junction box | Inceiling mount Junction box Pole mount |
|---|
| Rain shade | Adapter plate Ceiling mount UTC Controller bracket |
|---|
| Passive HDCVI Balun | Passive HDCVI Balun Passive HDCVI Balun 16Channel Passive |
|---|
| With Power | HDCVI Balun Receiver |
|---|
| Adapter | Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
