| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/4s~1/100000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1/3s~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.004Lux/F1.6, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 30m (98feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 2 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Fixed iris Audio Interface 1 |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 2.7-13.5mm Power Supply AC 24V±30%/DC 12V±30% |
|---|
| Max Aperture | F1.6 Power Consumption Max 5.9W (12V DC, IR on) |
|---|
| Angle of View | H: 108.7°~28.7° Environmental |
|---|
| Focus Control | Auto / Manual -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH Operating Conditions * Start up should be done at above -30°C (-22°F) 200mm Close Focus Distance 7.87'' Storage Conditions -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| DORI Distance | Ingress Protection & Vandal IP67 & IK10 Resistance *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Construction sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Casing | Aluminium criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ122mm×88.9mm (Φ4.8"×3.5") |
|---|
| DORI 偵測距離 | Distance |
|---|
| Definition | Net Weight 0.43kg (0.95lb) |
|---|
| Wide | Tele |
|---|
| 毛重 | 0.53kg (1.17lb) |
|---|
| Detect | 25px/m (8px/ft) 44m(144ft) 153m(502ft) |
|---|
| Observe | 63px/m (19px/ft) 18m(59ft) 61m(200ft) |
|---|
| Recognize | 125px/m (38px/ft) 9m(30ft) 31m(102ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(16ft) 15m(49ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 75° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS video Video Output output (DIP switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount In-ceiling Mount |
|---|
| PFA137 | PFB200C |
|---|

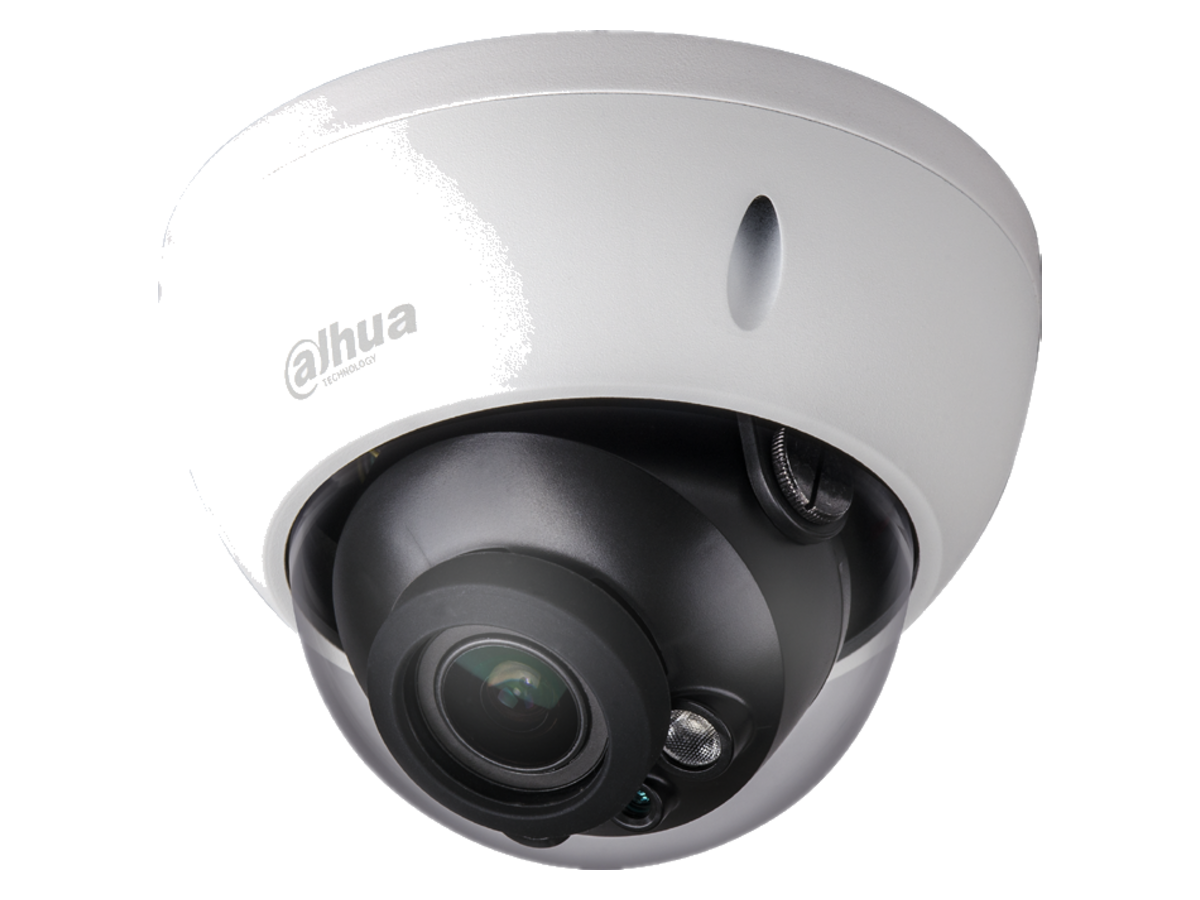

| 類型 | Part Number Description 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2241RP-Z-DP Camera, PAL 2MP Camera 2MP Starlight HDCVI IR Dome DH-HAC-HDBW2241RN-Z-DP Camera, NTSC |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB200C | Inceiling mount (For use alone) PFB203W PFB203W + PFA152-E Junction box (For use alone or PFB203W with PFA152-E pole mount) Pole mount (For use with PFA137 PFA152-E junction box) |
|---|
| PFB200W | Rain Shade of Dome Camera |
|---|
| Accessories | Adapter Plate of Mini Dome & PFA106 Eyeball Camera |
|---|
| Ceiling Mount Bracket of Mini | Wall Mount with Rain Shade Ceiling Mount (Extensible) PFB220C Dome & Eyeball Camera |
|---|
| PFA137+PFA200W | PFA106+PFB220C |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|
| PFM320 | 12V 2A Power Adapter |
|---|
| PFM300 | 12V 2A Power Adapter Accessories Optional: Pole Mount with Rain Shade PFA137+PFA200W+PFA152-E |
|---|
| Junction box | Inceiling mount Junction box |
|---|
| PFA152-E | PFA200W PFA106 |
|---|

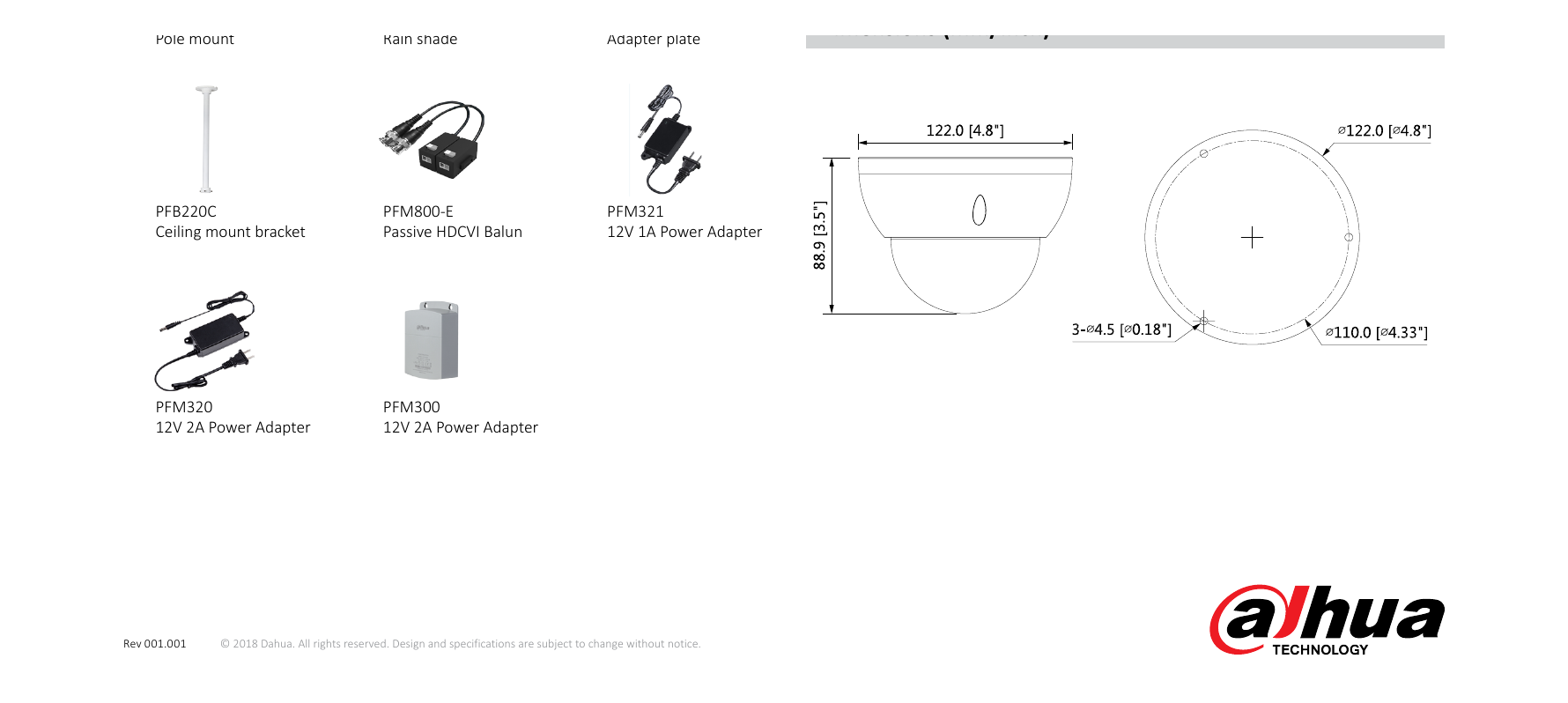

| Pole mount | Rain shade Adapter plate Dimensions (mm/inch) |
|---|
| PFB220C | PFM800-E PFM321 |
|---|
| Ceiling mount bracket | Passive HDCVI Balun 12V 1A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
