| of various indoor and outdoor facilities. | providing clear human and vehicle details. Smart H.265+ Smart H.265+ Codec reduces bit rate and storage requirements by up to |
|---|
| Internal SSD | 90%, outranking standard H.264 video compression and eliminating the and UTP, max. 700 m for 4K/4MP, 800 m for 1080P and 1200 m for 720p. www.dahuasecurity.com |
|---|
| Technical Specification | Recording Playback 1/4 |
|---|
| System | Backup Method USB device and network |
|---|
| Main Processor | Industrial-grade processor Instant playback, general playback, event playback, tag Playback Mode playback, smart playback (motion detection) |
|---|
| 操作系統 | Embedded Linux Alarm |
|---|
| Operating Interface | Web; Local GUI Motion detection; camera external alarm; network General Alarm alarm; PIR alarm Error (no disk, disk error, low space, low quota space; 4-channel: Secondary filtering for human and motor Anomaly Alarm network disconnection; IP conflict; MAC conflict); video |
|---|
| SMD Plus by Recorder | vehicle , reducing false alarms caused by leaves, rain and loss; video tampering; camera offline lighting condition change |
|---|
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); IPC external alarm output; |
|---|
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect Alarm Linkage voice prompt; buzzer; log; preset; email 1. CVI: 1080p@25/30 fps; 720p@25/30/50/60 fps. |
|---|
| Camera Input | 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. Ports 3. AHD: 1080p@25/30fps, 720p@25/30 fps. 1-channel RCA Audio Input |
|---|
| Up to 5 channels of IPC access. | 4-channel BNC (Coaxial Audio) 1 IP channel by default + 4 channels (analog channels are |
|---|
| converted to IP channels) | Audio Output 1-channel RCA |
|---|
| IP Camera Input | incoming bandwidth: 20 Mbps, recording bandwidth: 20 |
|---|
| Mbps and outgoing bandwidth: 20 Mbps | Two-way Talk Yes (share the same audio input with the first channel) *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled. 1 SSD: 1TB (replaceable with 256 GB or 512 GB) HDD Interface Stores for 44 days under default settings. Main stream: All channel 1080N@ (1–25/30 fps);720p@ (1–25/30 fps); 960H@ (1–25/30 fps); D1@ (1–25/30 fps); USB 2 (2 rear USB 2.0 |
|---|
| Sub stream: CIF@ (1–15 fps) | HDMI 1 |
|---|
| Dual-stream | Yes VGA 1 |
|---|
| PAL: 1 fps/s–25 fps/s | Network Port 1 (10/100 Mbps Ethernet port, RJ-45) NTSC: 1 fps/s–30 fps/s |
|---|
| 視頻碼率 | 32 kbps–4096 kbps |
|---|
| 供電 | 12 VDC, 1.5 A |
|---|
| Audio Sampling | 8 kHz, 16 bit |
|---|
| 功耗 | <7 W (with SSD) |
|---|
| 音訊碼率 | 64 kbps 1 HDMI, 1 VGA Net Weight 0.57 kg (1.25 lb) HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|---|
| 毛重 | 1.08 kg (2.38 lb) When IP extension mode not enabled: 1/4 |
|---|
| When IP extension mode enabled: 1/4/6 | 198.3 mm × 202.9 mm × 41.5 mm (7.81'' ×7.99'' × 1.63'') Product Dimensions (W × D × H) ONVIF; Panasonic; Sony; Axis; Arecont; Samsung |
|---|
| Access | 332.0 mm × 64.0 mm × 240.0 mm (13.08'' × 2.52'' × Packaging Dimensions 9.45'') (W × D × H) |
|---|
| 工作溫度 | –10 °C to +45 °C (+14 °F to +113 °F) |
|---|
| 視頻壓縮 | AI Coding; H.265+; H.265; H.264+; H.264 |
|---|
| 工作濕度 | 0%–90% (RH) |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| 安裝 | Desktop |
|---|
| Network | CE: CE-LVD: EN 60950-1/IEC 60950-1 HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN |
|---|
| 網絡協議 | Certifications |
|---|
| DNS; DDNS; P2P | 50130, EN 55024 FCC: Part 15 Subpart B |
|---|
| Mobile Phone Access | iOS; Android |
|---|
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK Ordering Information Chrome |
|---|
| Browser | IE 9 or later Type Model Description Firefox 4 Channels Penta-brid 1080N/720p 4 Channels |
|---|
| Network Mode | Single-address mode DH-XVR1B04-I(1TB) Cooper 1U 1SSD 1TB WizSense Digital |
|---|
| WizSense XVR | Video Recorder |
|---|
| Record Mode | General; motion detection; intelligent; alarm www.dahuasecurity.com |
|---|

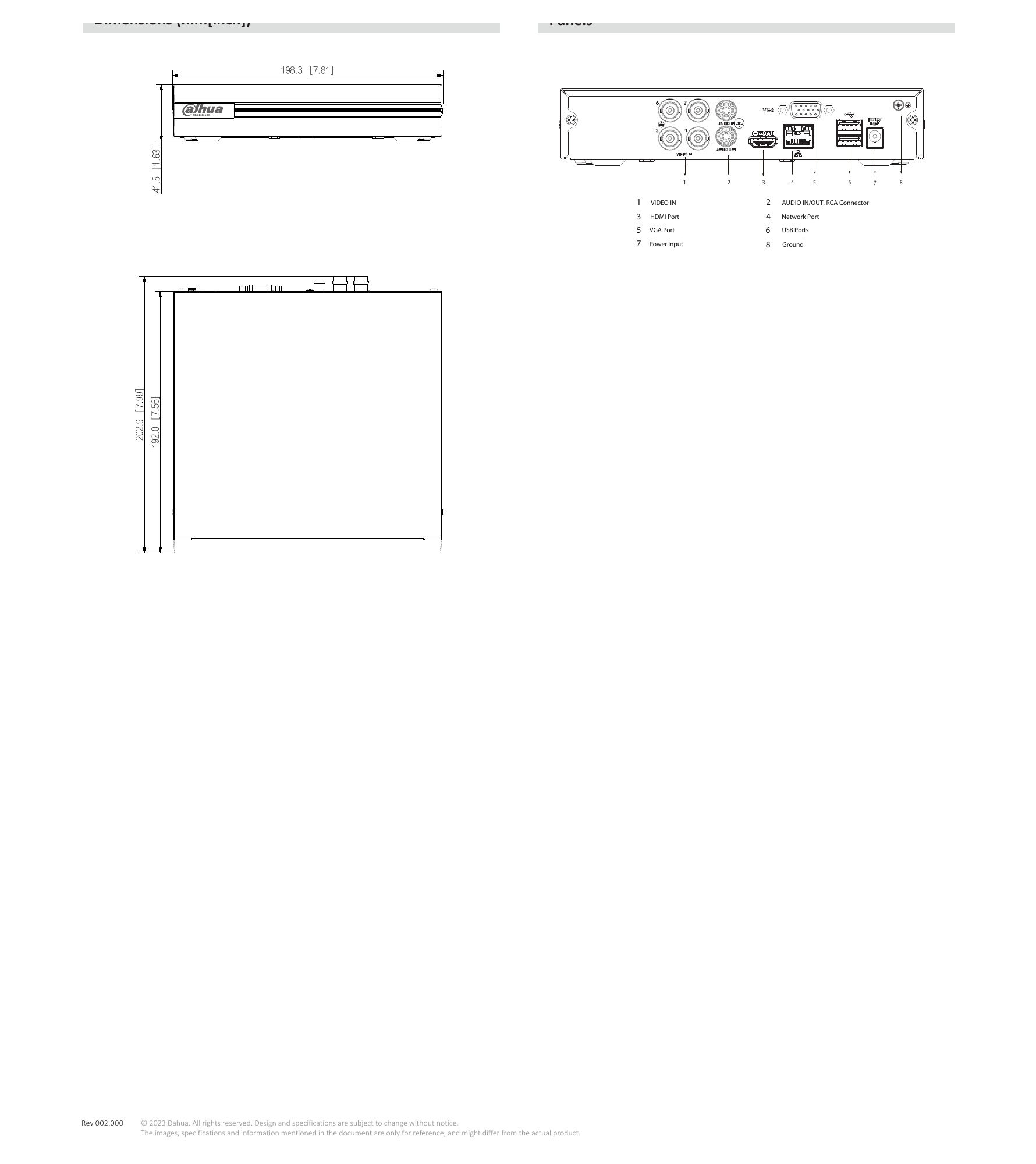

| Dimensions (mm[inch]) | Panels mm[inch] 198.3 [7.81] 41.5 [1.63] 1 2 3 4 5 6 7 8 1 VIDEO IN 2 AUDIO IN/OUT, RCA Connector 3 HDMI Port 4 Network Port 5 VGA Port 6 USB Ports 7 Power Input 8 Ground 202.9 [7.99] 192.0 [7.56] |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
