| System | Playback Mode Instant playback; general playback; event playback; tag playback; smart playback |
|---|
| Main Processor | Industrial-grade processor Alarm |
|---|
| 操作系統 | Embedded Linux Motion detection; HDCVI alarm; camera external alarm; General Alarm |
|---|
| Operating Interface | Web; Local GUI network alarm; PIR alarm |
|---|
| SMD Plus | Error (no disk, disk error, low space, low quota space; |
|---|
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video 4 channels: Secondary filtering for human and vehicle, loss; video tampering; camera offline |
|---|
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting |
|---|
| condition change | Intelligent Alarm SMD Plus |
|---|
| Audio and Video | Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto- |
|---|
| detect | Ports 1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 1-channel RCA Audio Input 720p@25/30 fps. 4-channel BNC (Coaxial Audio) 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. Audio Output 1-channel RCA |
|---|
| Up to 5 channels of IPC access | Two-way Talk Yes (share the same audio input with the first channel) 1 IP channel by default + 4 channels (analog channels 1 SATA port, up to 6 TB. This limit varies depending on |
|---|
| are converted to IP channels) | Disk Interface the environment temperature. |
|---|
| IP Camera Input | Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps USB 2 (2 rear USB 2.0 ports) *After IP extension is enabled, the AI Function (SMD) |
|---|
| will be disabled. | HDMI 1 Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 VGA 1 |
|---|
| Encoding Capacity | fps) |
|---|
| Sub stream: CIF@(1 fps–15 fps) | Network Port 1 (10/100 Mbps Ethernet port, RJ-45) |
|---|
| Dual-stream | Yes General |
|---|
| 視頻碼率 | 32 kbps–4096 kbps Power Supply 12 VDC, 1.5 A |
|---|
| Audio Sampling | 8 kHz, 16 bit Power Consumption <7 W (without HDD) |
|---|
| 音訊碼率 | 64 kbps Net Weight 0.55 kg (1.19 lb) 1 HDMI, 1 VGA Gross Weight 0.97 kg (2.11 lb) |
|---|
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|---|
| VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | 197.0 mm × 203.1 mm × 41.5 mm (7.76" × 8.00" × Product Dimensions 1.63") (W × D × H) When IP extension mode not enabled: 1/4 |
|---|
| Multi-screen Display | 332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × |
|---|
| When IP extension mode enabled: 1/4/6 | Packaging Dimensions 9.45") (W × D × H) |
|---|
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
|---|
| 工作溫度 | –10 °C to +45 °C (+14 °F to +113 °F) |
|---|
| 儲存溫度 | –20 °C to +60 °C (–4 °F to +140 °F) |
|---|
| 視頻壓縮 | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
|---|
| 工作濕度 | 10%–90% (RH), non-condensing |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| 安裝 | Desktop CE-LVD: IEC 62368-1:2014 HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; CE-EMC: EN IEC 61000-3-2:2019, EN DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Certifications 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, Server; P2P; Auto Registration; IP Search (Supports IP EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, |
|---|
| camera, DVR, NVS, etc.) | EN 50130-4:2011+A1:2014 |
|---|
| Mobile Phone Access | iOS; Android |
|---|
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK Ordering Information |
|---|
| Browser | Chrome; IE; Safari; Edge; Firefox |
|---|
| 類型 | Part Number Description 4CH Penta-brid 1080N/ |
|---|
| Record Mode | General; alarm; motion detection DIGITAL VIDEO 720P Cooper 1U 1HDD DH-XVR1B04-I |
|---|
| RECORDER | WizSense Digital Video |
|---|
| Recording Playback | 1/4 Recorder www.dahuasecurity.com |
|---|

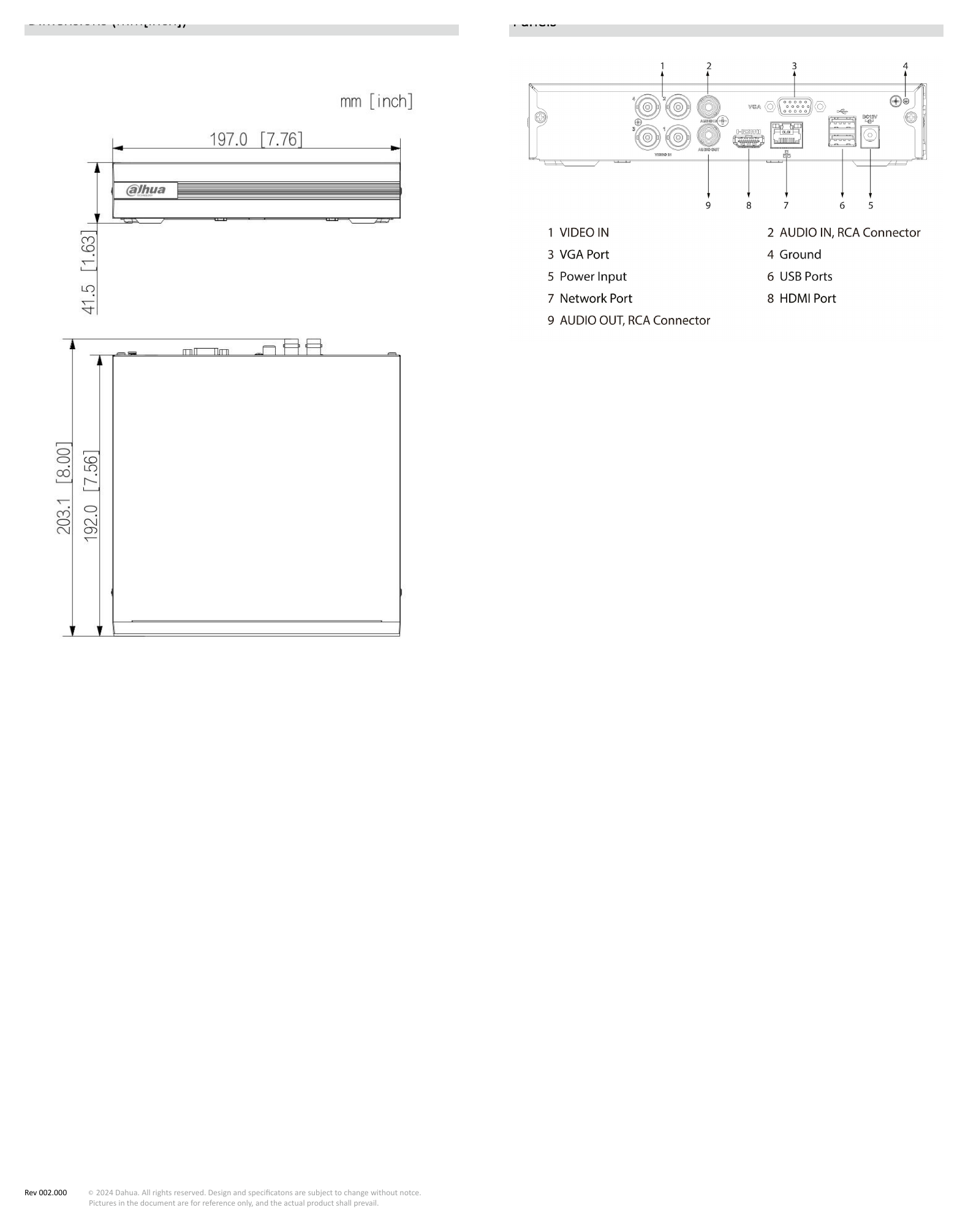

| Dimensions (mm[inch]) | Panels |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
