| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.7" CMOS BLC Mode BLC / HLC / DWDR |
|---|
| Effective Pixels | 1920(H)×1080(V), 2MP WDR DWDR |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1/25~1/100000s | Noise Reduction 2D Electronic Shutter Speed NTSC: 1/30~1/100000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.02Lux/F1.85, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 20m (66feet) Certifications |
|---|
| IR On/Off Control | Auto / Manual CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| IR LEDs | 12 UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Fixed lens / Fixed iris Audio Interface N/A |
|---|
| Mount Type | Board-in Eelectrical |
|---|
| 焦距 | 3.6mm (2.8mm Optional) Power Supply 12V DC ±25% |
|---|
| Max Aperture | F1.85 Power Consumption Max 2.9W (12V DC, IR on) |
|---|
| Angle of View | H: 89.9° (103°) Environmental |
|---|
| Focus Control | N/A -40°C ~ +45°C (-40°F ~ +104°F) / Less than 90% RH Operating Conditions * Start up should be done at above -40°C (-40°F) 900mm(600mm) |
|---|
| Close Focus Distance | Storage Conditions -40°C ~ +45°C (-40°F ~ +104°F) / Less than 90% RH 35.43'' (23.6") Ingress Protection & Vandal |
|---|

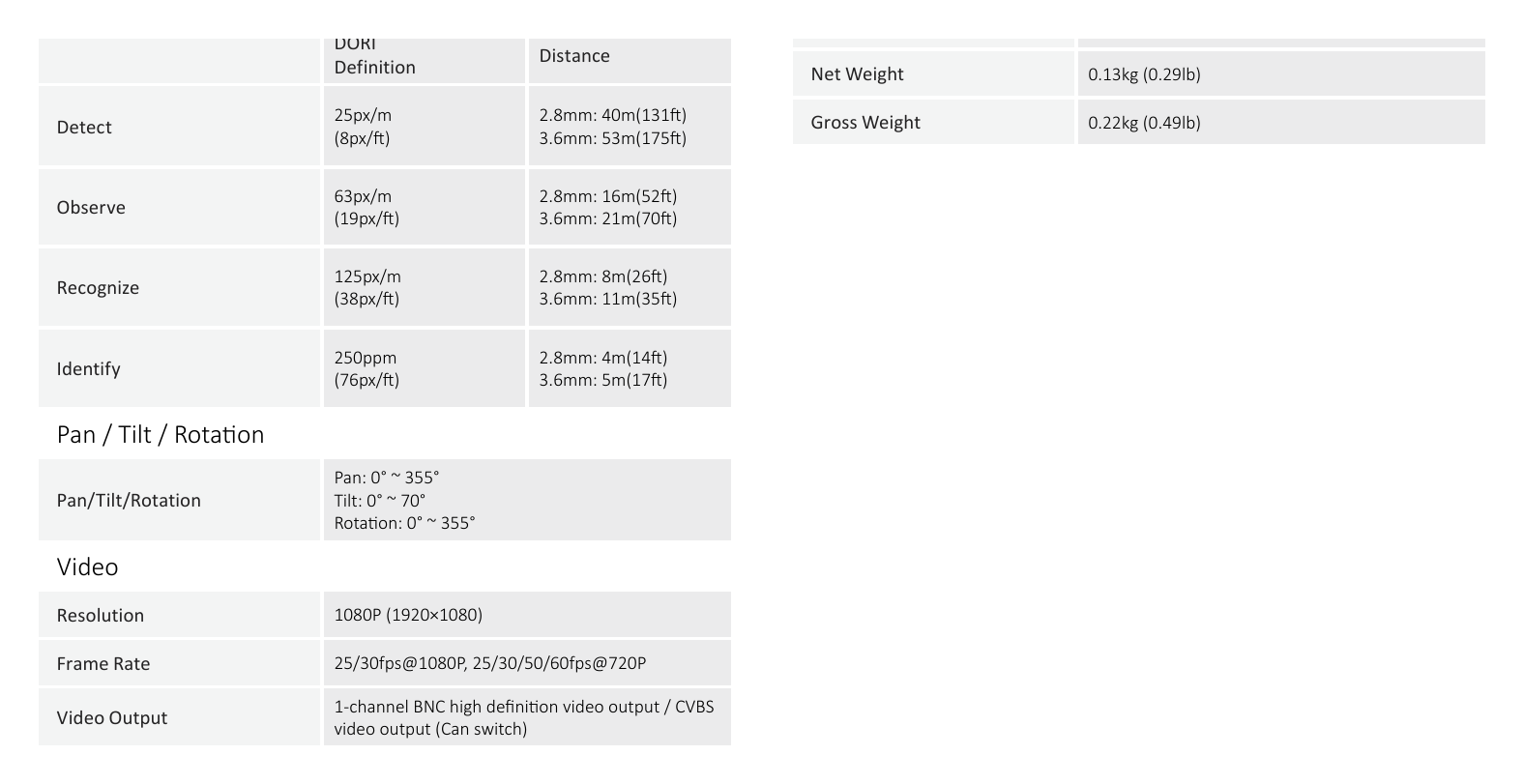

| DORI Distance | Resistance N/A Note: The DORI distance is a “general proximity” of distance which makes it easy to Construction pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Casing Plastic criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| 尺寸 | Φ100mm×74.3mm(Φ3.9"×2.9") Distance |
|---|
| Definition | Net Weight 0.13kg (0.29lb) 25px/m 2.8mm: 40m(131ft) Gross Weight 0.22kg (0.49lb) Detect (8px/ft) 3.6mm: 53m(175ft) 63px/m 2.8mm: 16m(52ft) Observe (19px/ft) 3.6mm: 21m(70ft) 125px/m 2.8mm: 8m(26ft) Recognize (38px/ft) 3.6mm: 11m(35ft) 250ppm 2.8mm: 4m(14ft) Identify (76px/ft) 3.6mm: 5m(17ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 70° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC high definition video output / CVBS Video Output video output (Can switch) www.dahuasecurity.com |
|---|
| Ordering Information | Juncon Mount |
|---|
| PFA130-E | PFA122 |
|---|
| 類型 | Part Number Description DH-HAC-HDPW1200RP 2.8mm 2MP HDCVI IR Dome Camera, PAL DH-HAC-HDPW1200RP 3.6mm 2MP Camera DH-HAC-HDPW1200RN 2.8mm 2MP HDCVI IR Dome Camera, |
|---|
| DH-HAC-HDPW1200RN 3.6mm | NTSC |
|---|
| Wall Mount | Pole Mount |
|---|
| PFB203W | PFB203W + PFA152-E |
|---|
| PFA122 | Junction box (For use alone) Wall mount (For use alone or with PFB203W PFA152-E pole mount) Pole mount (For use with PFA152-E PFB203W wall mount) Rain Shade(For use alone or with PFA200W PFA152-E pole mount) |
|---|
| Wall Mount with Rain Shade | Ceiling Mount (Extensible) |
|---|
| Accessories | PFA106 Adapter Plate PFA200W PFA106+PFB220C |
|---|
| PFM820 | UTC Controller |
|---|
| PFB220C | Ceiling mount bracket |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM800-4MP | Passive HDCVI Balun |
|---|
| PFM801-4MP | Passive HDCVI Balun With Power |
|---|
| PFM321 | 12V 1A Power Adapter Pole Mount with Rain Shade PFA152-E+PFA200W |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Junction box Wall mount Pole mount |
|---|
| PFA200W | PFA106 PFB220C PFM820 |
|---|
| Rain shade | Adapter plate Ceiling mount bracket UTC Controller |
|---|
| Passive HDCVI Balun Passive HDCVI Balun | Passive HDCVI Balun 12V 1A Power |
|---|
| With Power | Adapter PFM320D-015 Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
