| Camera | OSD Menu Multi-language |
|---|
| 影像感測器 | 1/2.8" CMOS BLC Mode BLC / HLC / WDR |
|---|
| Effective Pixels | 1945(H)×1097(V), 2.1MP WDR 120dB |
|---|
| Scanning System | Progressive Gain Control AGC |
|---|
| PAL: 1.3s~1/30000s | Noise Reduction 2D / 3D Electronic Shutter Speed NTSC: 1s~1/30000s |
|---|
| White Balance | Auto / Manual |
|---|
| Minimum Illumination | 0.005Lux/F1.4, 30IRE, 0Lux IR on |
|---|
| Smart IR | Auto / Manual |
|---|
| S/N Ratio | More than 65dB |
|---|
| IR Distance | Up to 50m (164feet) Certifications CE (EN55032, EN55024, EN50130-4) |
|---|
| IR On/Off Control | Auto / Manual |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| IR LEDs | 3 |
|---|
| 鏡頭 | Interface |
|---|
| 鏡頭類型 | Motorized lens / Auto iris Audio Interface 1-channel audio in |
|---|
| Mount Type | Board-in Alarm Interface 1-channel alarm in & 1-channel alarm out |
|---|
| 焦距 | 2.7-12mm Eelectrical |
|---|
| Max Aperture | F1.4 Power Supply AC 24V±25% / DC 12V±25% |
|---|
| Angle of View | H: 95°~36° Power Consumption Max 12.5W (12V DC, IR on) |
|---|
| Focus Control | Auto / Manual Environmental 300mm -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
|---|
| Close Focus Distance | Operating Conditions 11.81'' * Start up should be done at above -30°C (-22°F) |
|---|
| 儲存環境 | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH DORI Distance Ingress Protection & Vandal IP67 & IK10 Note: The DORI distance is a “general proximity” of distance which makes it easy to Resistance pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Construction criteria for Detect, O |
|---|
| Casing | Aluminium |
|---|
| DORI 偵測距離 | Distance |
|---|

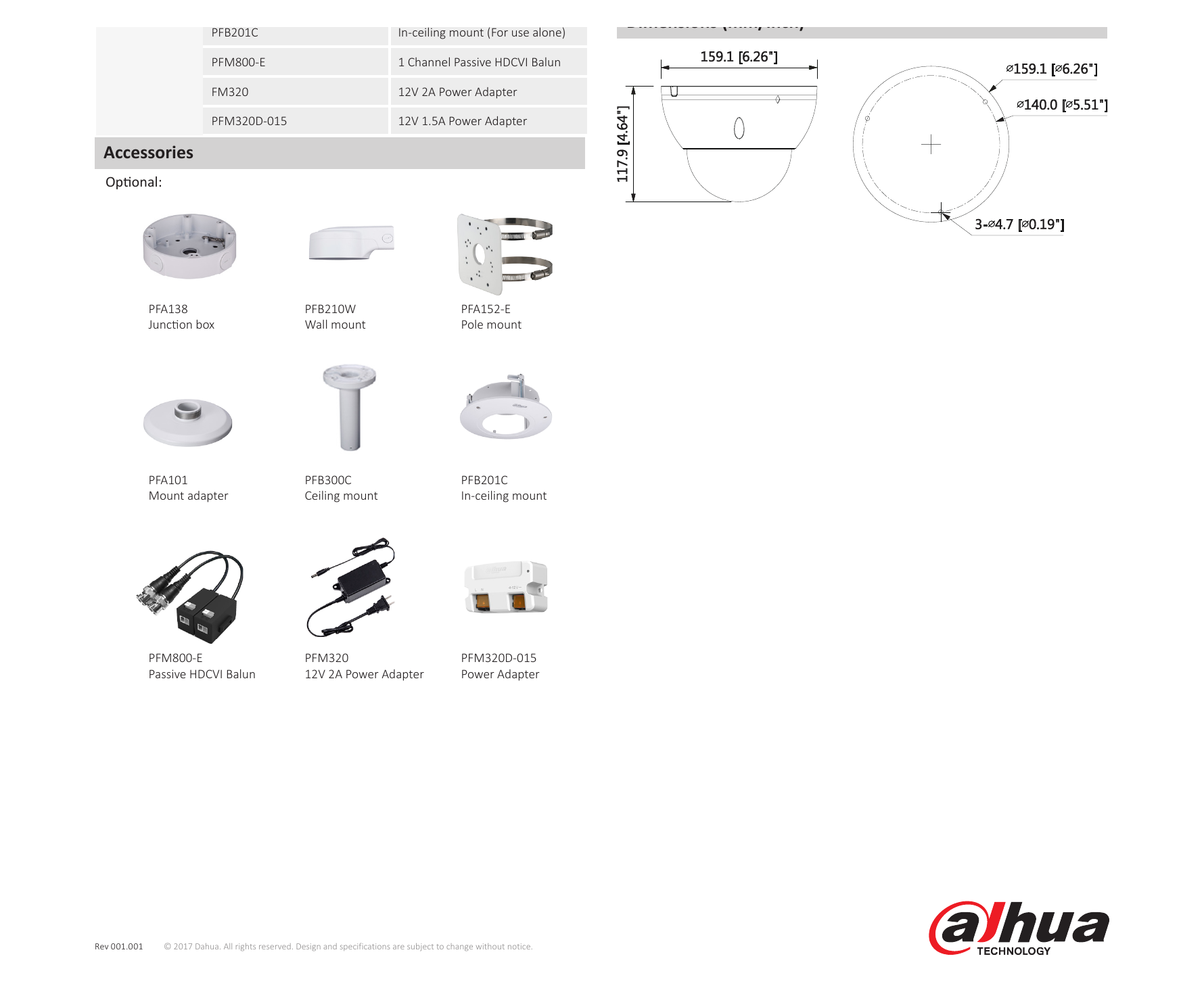

| 尺寸 | Φ159.1mm×117.9mm (Φ6.26"×4.64") |
|---|
| Definition | Wide Tele |
|---|
| 淨重 | 0.90kg (1.98lb) |
|---|
| Detect | 25px/m (8px/ft) 48m(159ft) 133m(437ft) |
|---|
| 毛重 | 1.20kg (2.65lb) |
|---|
| Observe | 63px/m (19px/ft) 19m(64ft) 53m(175ft) |
|---|
| Recognize | 125px/m (38px/ft) 10m(32ft) 27m(87ft) |
|---|
| Identify | 250px/m (76px/ft) 5m(17ft) 13m(44ft) Pan / Tilt / Rotation Pan: 0° ~ 355° |
|---|
| Pan/Tilt/Rotation | Tilt: 0° ~ 65° Rotation: 0° ~ 355° |
|---|
| 解像度 | 1080P (1920×1080) |
|---|
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output & 1-channel BNC Video Output SDI video output CVBS tester out www.dahuasecurity.com |
|---|
| In-ceiling Mount | Pole Mount Ordering Information |
|---|
| PFB201C | PFA138 PFB210W+PFA152-E |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-HDBW3231EP-ZT | 2MP Starlight HDCVI IR Dome 2.7~12mm Camera, PAL 2MP Camera |
|---|
| DH-HAC-HDBW3231EN-ZT | 2MP Starlight HDCVI IR Dome 2.7~12mm Camera, NTSC |
|---|
| PFA138 | Junction box (For use alone) |
|---|
| Ceiling Mount | Wall Mount |
|---|
| Wall mount (For use alone or with | PFA101+PFB300C PFB210W (Indoor) PFB210W (Outdoor) PFB210W PFA152-E pole mount) Pole mount (For use with PFA152-E PFB210W wall mount) Mount adapter (For use with PFA101 PFB300C ceiling mount) Accessories Ceiling mount (For use with PFB300C PFA101 mount adapter) |
|---|
| PFM800-E | 1 Channel Passive HDCVI Balun |
|---|
| FM320 | 12V 2A Power Adapter |
|---|
| PFM320D-015 | 12V 1.5A Power Adapter Accessories Optional: |
|---|
| Junction box | Wall mount Pole mount |
|---|
| PFA101 | PFB300C PFB201C |
|---|
| Mount adapter | Ceiling mount In-ceiling mount |
|---|
| Passive HDCVI Balun | 12V 2A Power Adapter Power Adapter |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
