| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3” 1.3Megapixel progresive CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 1280(H)x960(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/16MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Support |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s Smart IR Support |
|---|
| Minimum Illumination | 0.5Lux/F2.5(Color), 0Lux/F2.5(IR on) Digital Zoom 16x |
|---|
| S/N Ratio | More than 50dB Flip 0°/90°/180°/270° |
|---|
| IR Distance | Distance up to 30m(98ft) Mirror Off / On |
|---|
| IR On/Off Control | Auto/ Manual Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| IR LEDs | 24 Audio |
|---|
| 鏡頭 | Compression N/A |
|---|
| 鏡頭類型 | Fixed Network |
|---|
| Mount Type | Board-in Ethernet RJ-45 (10/100Base-T) |
|---|
| 焦距 | 2.8 mm (3.6 mm optional) HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Protocol | DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; |
|---|
| Max. Aperture | F2.5/F2.5 Bonjour;802.1x;Multicast;ICMP;IGMP; |
|---|
| Angle of View | H:85°/57°, V:44°/31° |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Focus Control | Fixed |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Close Focus Distance | N/A |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| DORI Distance | 2.8 mm 44m(144ft) 17m(56ft) 9m(30ft) 4m(13ft) |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari 3.6 mm 35m(115ft) 14m(46ft) 7m(23ft) 4m(13ft) |
|---|
| Management Software | Smart PSS, DSS,Easy4ip |
|---|
| Smart Phone | iPhone, iPad, Android Phone |
|---|
| Pan/Tilt Range | Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355° Certifications CE (EN 60950:2000) |
|---|
| Compression | H.264+/H.264 Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 2 Streams 1.3M(1280×960)/720P(1280×720)/ Resolution |
|---|
| D1(704×576/704×480)/CIF(352×288/352×240) | Video Interface N/A 1.3M (1 ~ 25/30fps)s) Audio Interface N/A Frame Rate |
|---|
| D1/CIF(1 ~ 25/30fps) | RS485 N/A |
|---|
| 碼率控制 | CBR/VBR Alarm N/A |
|---|
| Bit Rate | H264:24K ~ 8192Kbps Electrical |
|---|
| Day/Night | Auto(ICR) / Color / B/W Power Supply DC12V PoE (802.3af)(Class 0) |
|---|
| BLC Mode | BLC / HLC / DWDR Power Consumption <3.7W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|

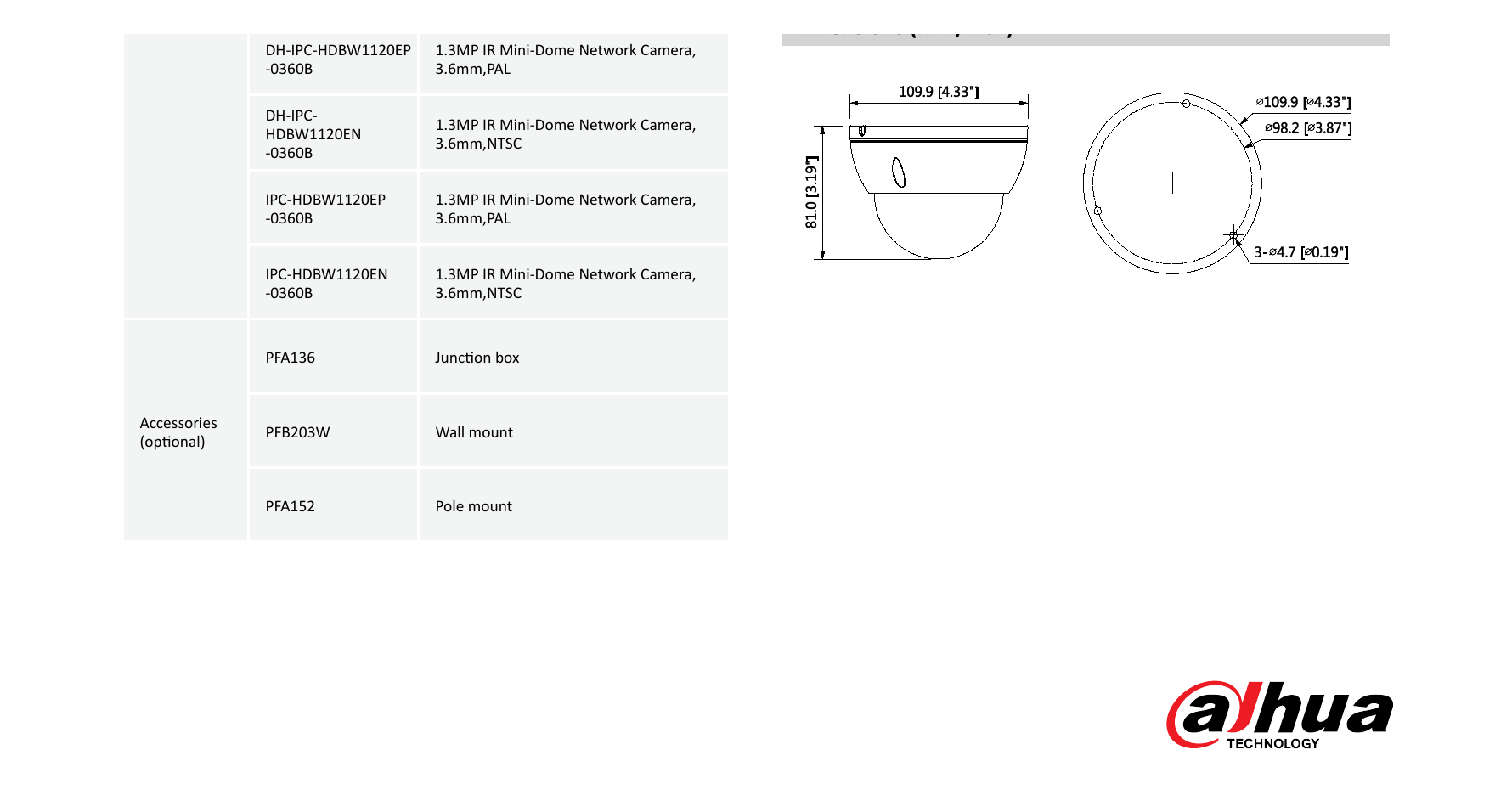

| 尺寸 | Φ109.9mm × 81mm (4.33" x 3.19") |
|---|
| Junction Mount | Pole Mount |
|---|
| 淨重 | 0.34Kg (0.75lb) |
|---|
| PFA136 | PFB203W + PFA152 |
|---|
| 毛重 | 0.47Kg (1.04lb) Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC-HDBW1120EP 1.3MP IR Mini-Dome Network Camera, Wall Mount -0280B 2.8mm,PAL PFB203W DH-IPC- 1.3MP IR Mini-Dome Network Camera, HDBW1120EN 2.8mm,NTSC -0280B |
|---|
| IPC-HDBW1120EP | 1.3MP IR Mini-Dome Network Camera, |
|---|
| -0280B | 2.8mm,PAL |
|---|
| IPC-HDBW1120EN | 1.3MP IR Mini-Dome Network Camera, |
|---|
| DH-IPC-HDBW1120EP | 1.3MP IR Mini-Dome Network Camera, |
|---|
| -0360B | 3.6mm,PAL DH-IPC- 1.3MP IR Mini-Dome Network Camera, HDBW1120EN 3.6mm,NTSC -0360B |
|---|
| PFB203W | Wall mount (optional) |
|---|
| PFA152 | Pole mount www.dahuasecurity.com |
|---|
