| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3” 4Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 2688(H)x1520(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 512MB/32MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization N/A (EIS) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
|---|
| Smart IR | Support 0.06Lux/F1.6( Color,1/3s,30IRE) |
|---|
| Minimum Illumination | 0.4Lux/F1.6( Color,1/30s,30IRE) Defog N/A 0Lux/F1.6(IR on) |
|---|
| Digital Zoom | 16x |
|---|
| S/N Ratio | More than 50dB |
|---|
| IR Distance | Distance up to 50m (164ft) Flip 0°/90°/180°/270° |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Mirror | Off / On |
|---|
| IR LEDs | 1 |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed |
|---|
| Mount Type | Board-in Compression G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.8mm (3.6mm, 6mm optional) Network |
|---|
| Max. Aperture | F1.6 (F1.6, F1.6) |
|---|
| Ethernet | RJ-45 (10/100Base-T) |
|---|
| Angle of View | H:104° (83°, 55°), V:58° (45°, 31°) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; |
|---|
| Optical Zoom | N/A FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; |
|---|
| Focus Control | Fixed IGMP; SNMP |
|---|
| Close Focus Distance | 1.1m (1.5m, 3.1m) |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Streaming Method | Unicast / Multicast 2.8 mm 56m(184ft) 22m(72ft) 11m(36ft) 6m(20ft) DORI Distance 3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft) Max. User Access 10 Users / 20 Users 6.0 mm 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation | Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection Certifications |
|---|
| Video | CE (EN 60950:2000) |
|---|
| Compression | H.265+/H.265/H.264+/H.264 |
|---|
| Certifications | UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 3 Streams 4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ Video Interface N/A Resolution 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
|---|
| Audio Interface | Built-in Mic Main Stream: 4M(1~25/30fps) |
|---|
| RS485 | N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) |
|---|
| 警報 | N/A Third Stream: 720P(1~25/10fps) Electrical |
|---|
| 碼率控制 | CBR/VBR H.264: 24K ~ 10240Kbps |
|---|
| 供電 | DC12V, PoE (802.3af)(Class 0) Bit Rate H.265: 14K ~ 9984Kbps |
|---|
| 功耗 | <5.5W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A |
|---|
| Construction | PFA130-E PFB204W PFA152-E LR1002 |
|---|
| Junction Box | Wall Mount Pole Mount ePoE Over Coax Converter |
|---|
| Casing | Metal |
|---|

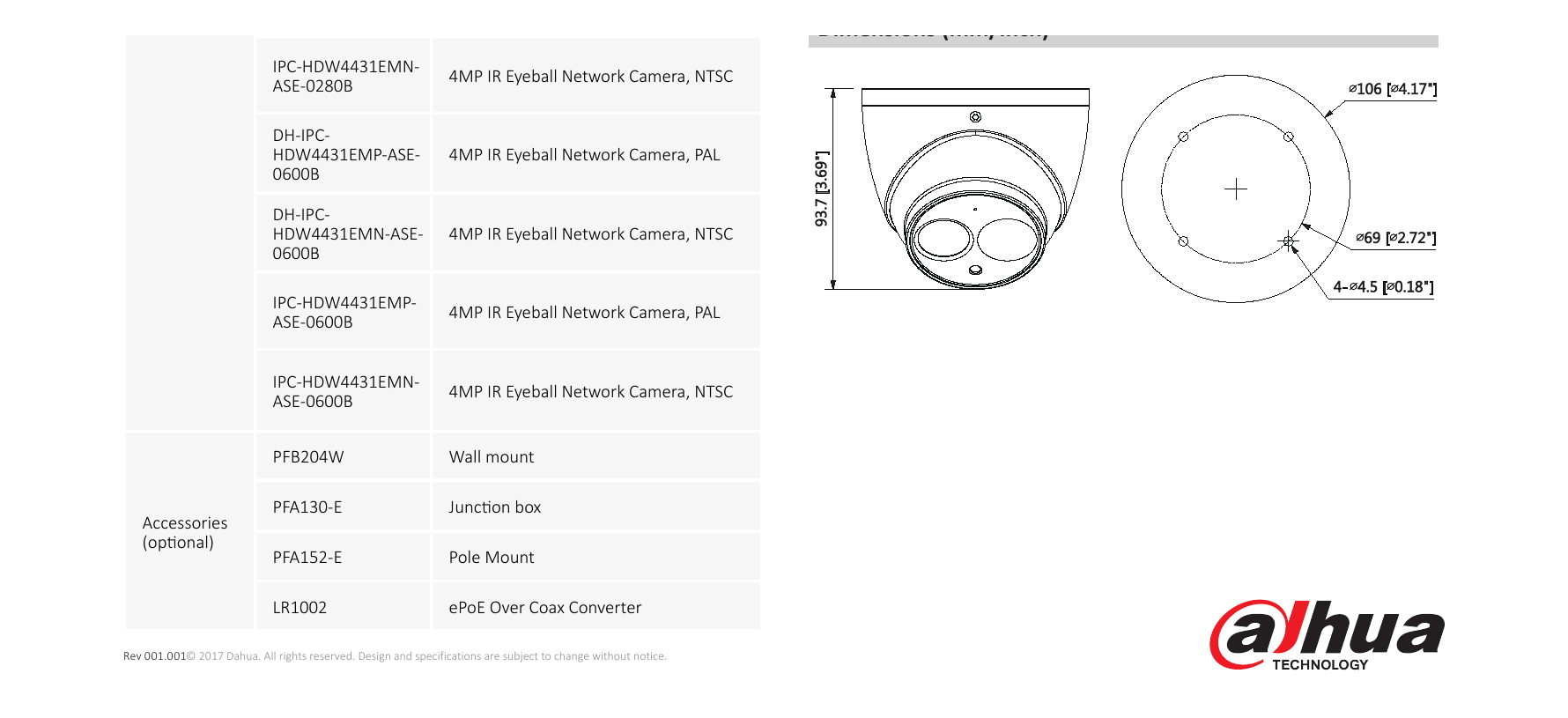

| 尺寸 | Φ106mm×93.7mm (4.17”×3.69”) |
|---|
| 淨重 | 0.47Kg (1.04lb) |
|---|
| Juncon Mount | Pole Mount |
|---|
| 毛重 | 0.65Kg (1.43lb) |
|---|
| PFA130-E | PFB204W + PFA152-E Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- |
|---|

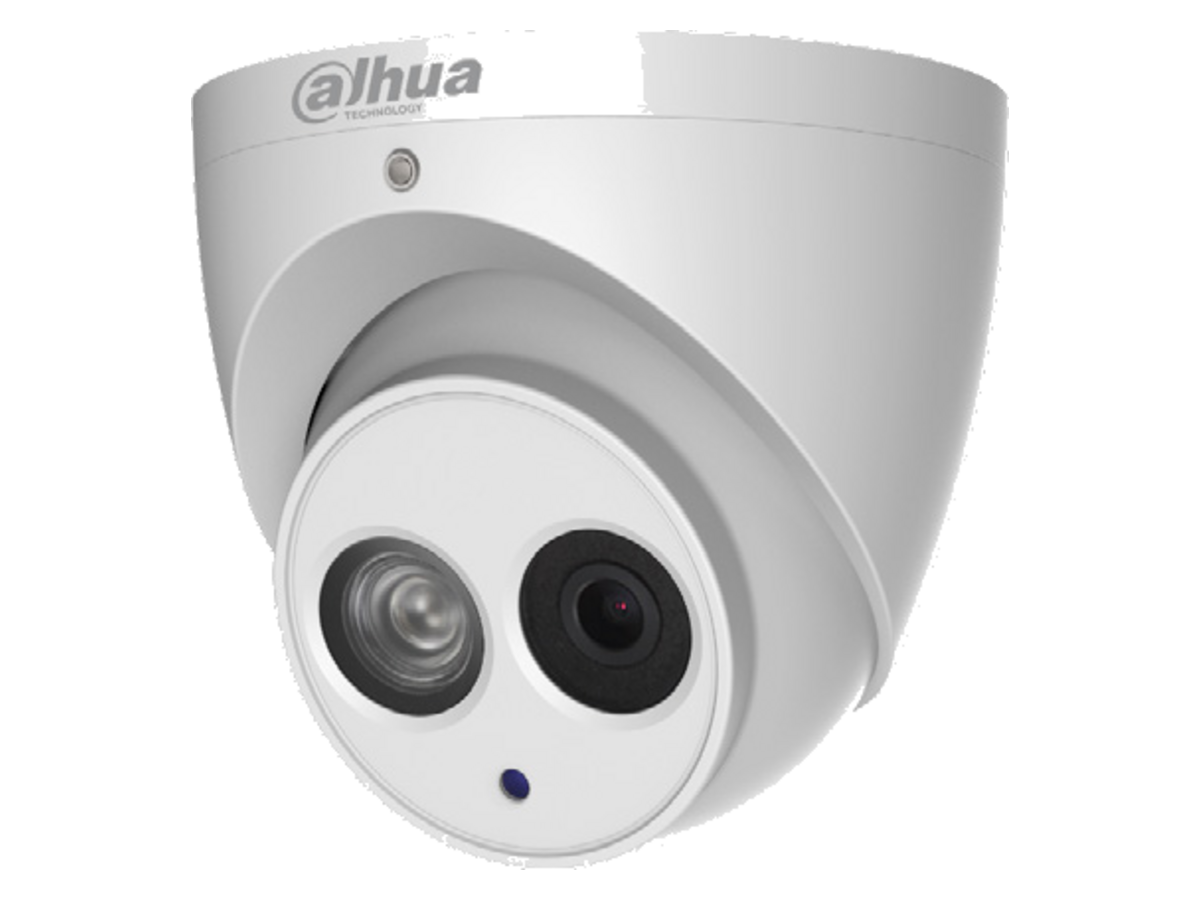

| HDW4431EMP-ASE- | 4MP IR Eyeball Network Camera, PAL 0360B DH-IPC- |
|---|
| HDW4431EMN-ASE- | 4MP IR Eyeball Network Camera, NTSC 0360B Wall Mount IPC-HDW4431EMP- 4MP IR Eyeball Network Camera, PAL PFB204W ASE-0360B IPC-HDW4431EMN- 4MP IR Eyeball Network Camera, NTSC ASE-0360B DH-IPC- |
|---|
| PFB204W | Wall mount |
|---|
| PFA152-E | Pole Mount |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
