| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/2.9” 6Megapixel progressive scan CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 3072(H) x 2048(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 512MB/32MB |
|---|
| Region of Interest | Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Stabilization |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s N/A (EIS) 0.04Lux/F1.6( Color,1/3s,30IRE) |
|---|
| Minimum Illumination | 0.4Lux/F1.6( Color,1/30s,30IRE) Smart IR Support 0Lux/F1.6(IR on) |
|---|
| 除霧 | N/A |
|---|
| S/N Ratio | More than 50dB |
|---|
| IR Distance | Distance up to 50m (164ft) Digital Zoom 16x |
|---|
| IR On/Off Control | Auto/ Manual Flip 0°/90°/180°/270° |
|---|
| IR LEDs | 1 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Fixed |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.8mm (3.6mm optional) |
|---|
| Max. Aperture | F1.6(F1.6) Network |
|---|
| Angle of View | H: 98° (69°), V: 67° (48°) Ethernet RJ-45 (10/100Base-T) |
|---|
| Optical Zoom | N/A HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; |
|---|
| Focus Control | Fixed UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Close Focus Distance | 0.9m (1.7m) |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI Distance | 2.8 mm 69m(226ft) 28m(92ft) 14m(46ft) 7m(23ft) Streaming Method Unicast / Multicast 3.6 mm 89m(292ft) 36m(118ft) 18m(59ft) 9m(30ft) Max. User Access 10 Users /20 Users |
|---|
| Pan/Tilt/Rotation | NAS |
|---|
| Edge Storage | Local PC for instant recording |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚ Mirco SD card 128GB |
|---|
| Intelligence | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing Management Software Smart PSS, DSS, Easy4ip Advanced Intelligent Functions Face Detection Smart Phone IOS, Android |
|---|
| Video | Certifications |
|---|
| Certifications | UL:UL60950-1 |
|---|
| Streaming Capability | 3 Streams FCC: FCC Part 15 Subpart B (3072×2048)/(3072×1728)/(2592×1944)/ (2688×1520)/(2560×1440)/ Interface (2304×1296)/1080P(1920×1080)/ |
|---|
| 解像度 | Video Interface N/A SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/ |
|---|
| CIF(352×288/352×240) | Audio Interface Built-in Mic Main Stream: 6MP (1~20fps), 4MP(1~25/30fps) RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) |
|---|
| 警報 | N/A Third Stream: 1080P(1~25/30fps) |
|---|
| 碼率控制 | CBR/VBR Electrical |
|---|
| H.264: 24K ~ 10240Kbps | Power Supply DC12V, PoE (802.3af)(Class 0) Bit Rate H.265: 14K ~ 9984Kbps |
|---|
| 功耗 | <6W |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| BLC Mode | BLC / HLC / WDR(120dB) www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | N/A Construction |
|---|
| PFA130-E | PFB204W PFA152-E LR1002 |
|---|
| Casing | Metal |
|---|
| Junction Box | Wall Mount Pole Mount ePoE Over Coax Converter |
|---|

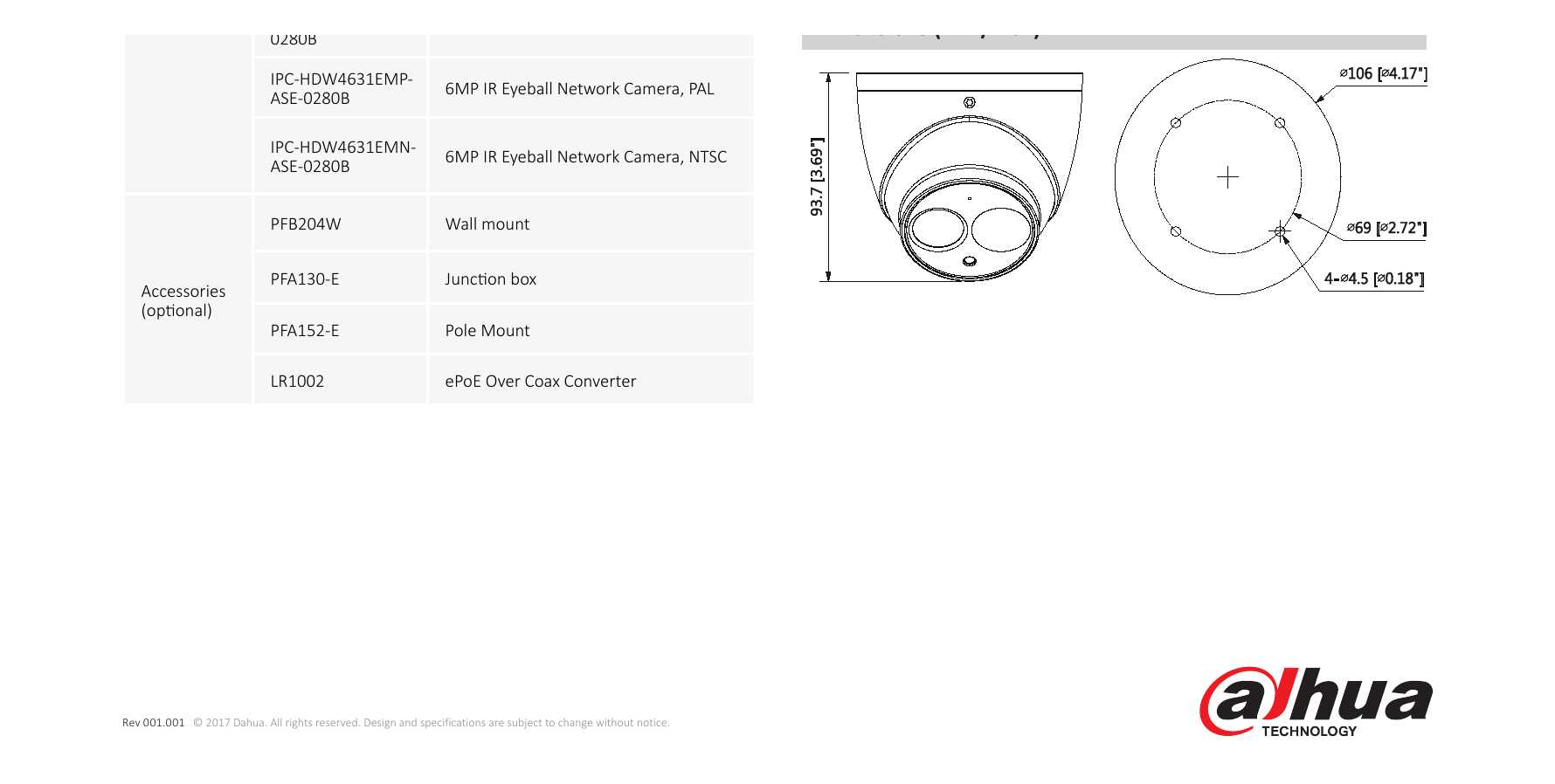

| 尺寸 | Φ106mm×93.7mm (4.17”×3.69”) |
|---|
| 淨重 | 0.47Kg (1.04lb) Juncon Mount Pole Mount |
|---|
| 毛重 | 0.65Kg (1.43lb) PFA130-E PFB204W + PFA152-E Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC- |
|---|
| HDW4631EMP-ASE- | 6MP IR Eyeball Network Camera, PAL 0360B |
|---|
| DH-IPC- | Wall Mount |
|---|
| HDW4631EMN-ASE- | 6MP IR Eyeball Network Camera, NTSC 0360B PFB204W IPC-HDW4631EMP- 6MP IR Eyeball Network Camera, PAL ASE-0360B IPC-HDW4631EMN- 6MP IR Eyeball Network Camera,NTSC ASE-0360B 6MP camera DH-IPC- |
|---|
| PFB204W | Wall mount |
|---|
| PFA152-E | Pole Mount |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
