| 影像感測器 | 1/3” Progressive Scan CMOS Starlight Sensor Focal Length: 3.2 mm |
|---|
| 鏡頭 | Aperture: F1.6 Field of View: 113° (Diagonal), 97° (Horizontal), 54° (Vertical) 850 nm IR LED (49 ft / 15 m) Night Vision Color Night Vision |
|---|
| Camera | Night Mode IR Mode / Full-Color Mode / Smart Mode |
|---|
| 日夜模式 | IR-Cut Filter with Auto-Switching |
|---|
| Lighting | 2× Built-in Spotlights |
|---|
| Interface & Button | 1× SYNC/RESET Button |
|---|
| Hub Compatibility | Compatible with H200 (not included) |
|---|
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
|---|
| Frame Rate | 15 fps/20 fps |
|---|
| Video & Audio | Digital Zoom 12× |
|---|
| 視頻壓縮 | H.264 |
|---|
| Live View | Yes 3D DNR Image Enhancement WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker Video & Audio |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 92 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Hub (Up to 512 GB) (Hub not included) Storage |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) Single Motion Sensor (FOV: 110° horizontal) Sensor Single Ambient Light Sensors Motion Detection Person Detection Detection Pet Detection Detection & Vehicle Detection Notification |
|---|
| Activity Zones | Yes System Notification |
|---|
| Output Notification | System Notification with Snapshot (Tapo Care Services) System Notification with Clips (Tapo Care Services) |
|---|
| Network Connectivity | Connect via Wi-Fi or Ethernet |
|---|
| Network | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|---|
| Wireless Connectivity | Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)# 11b: 11 Mbps |
|---|
| Transmission Rate | 11g: 54 Mbps 11n: 72.2 Mbps |
|---|
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP Max. Distance Between Hub 524.93 ft / 160 m * and Camera# 128-bit AES Encryption with SSL/TLS |
|---|
| 安全 | Security WPA/WPA2-PSK Removable Rechargeable Lithium-ion Battery Power Source Optional Solar Panel: Tapo A200 (Sold separately) |
|---|
| Input Voltage | Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
|---|
| Output Voltage | Camera Battery Pack Adapter Output: 5.0 V, 1.0 A Power |
|---|
| Power Cord Length | USB Adapter Cable Length: 1.64 ft / 0.5 m |
|---|
| Typical Power Consumption | Camera Typical Power Consumption: 0.928 W |
|---|
| Maximum Power Consumption | Camera Max Power Consumption: 2.39 W |
|---|
| Certifications | CE, FCC, RoHS, RCM |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP65 |
|---|
| System Requirements | Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher Hub is not included. Tabletop |
|---|
| Mounting Options | Ceiling-Mounted Wall-Mounted |
|---|
| 工作溫度 | -20℃ ~ 45℃ (-4 ℉ ~ 113 ℉ ) |
|---|
| 儲存溫度 | -20℃ ~ 60℃ (-4 ℉ ~ 140 ℉ ) |
|---|
| 工作濕度 | 10%~90% RH, Non-condensing |
|---|
| Storage Humidity | 5%~90% RH, Non-condensing |
|---|
| Charging Temperature | 0℃ ~ 55℃ (32 ℉ ~ 131 ℉ ) Screw Size |
|---|

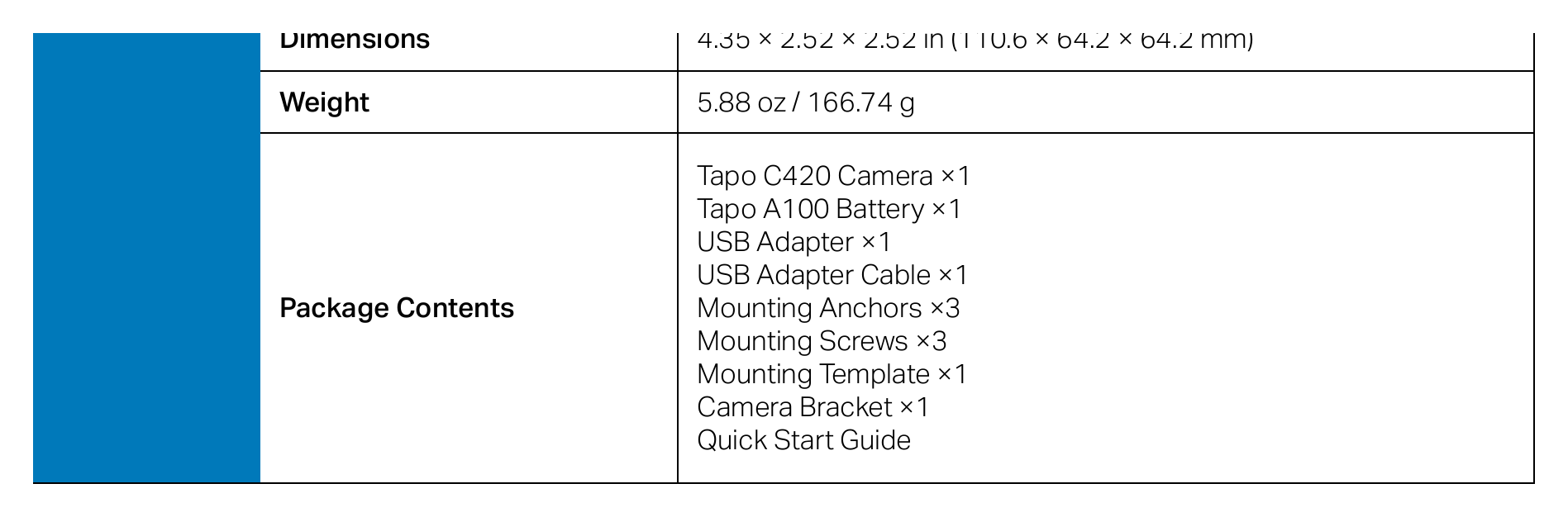

| 尺寸 | 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm) |
|---|
| 重量 | 5.88 oz / 166.74 g Tapo C420 Camera ×1 Tapo A100 Battery ×1 USB Adapter ×1 USB Adapter Cable ×1 |
|---|
| Package Contents | Mounting Anchors ×3 Mounting Screws ×3 Mounting Template ×1 Camera Bracket ×1 Quick Start Guide Appearance |
|---|
| Front | Back SYNC / RESET 1 1 2 3 4 5 7 SYNC/RESET Button 1 Spotlights 4 Status LED While the camera is powered on: Indicate the status of your camera. 2 Light Sensor Press for 1 second: Pair with the hub 5 Microphone Press and hold for about 5 seconds: Reset the camera 3 Motion Sensor 6 Lens 180-day battery life is based on TP-Link’s laboratory testing with 10-20 triggered events per day. Actual battery |
|---|
