| 影像感測器 | 1/3” Progressive Scan CMOS Starlight Sensor Focal Length: 3.2 mm |
|---|
| 鏡頭 | Aperture: F1.6 Field of View: 113° (Diagonal), 97° (Horizontal), 54° (Vertical) 850 nm IR LED (49 ft / 15 m) Night Vision Color Night Vision |
|---|
| Camera | Night Mode IR Mode / Full-Color Mode / Smart Mode |
|---|
| 日夜模式 | IR-Cut Filter with Auto-Switching |
|---|
| Lighting | 2× Built-in Spotlights |
|---|
| Interface & Button | 1× SYNC/RESET Button |
|---|
| Hub Compatibility | Compatible with H200 (Included) Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. Supported Products: Device Compatibility T100/T110/T300/T310/T315/S200B/S200D/S210/S220 |
|---|
| Hub | C420/C400/D230... More coming soon: https://www.tp-link.com/tapo-h200/product-list/ Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video Connection Capacity doorbells 1× Ethernet Port 1× RESET Button |
|---|
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
|---|
| Frame Rate | 15 fps/20 fps |
|---|
| Digital Zoom | 12× |
|---|
| 視頻壓縮 | H.264 |
|---|
| Video & Audio | Live View Yes 3D DNR Image Enhancement WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation Camera: 92 dB (Level measured at 4-inch/10-cm distance) Siren Volume Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Hub (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) Single Motion Sensor (FOV: 110° horizontal) Sensor Single Ambient Light Sensors Motion Detection Person Detection Detection Pet Detection Detection & Vehicle Detection Notification |
|---|
| Activity Zones | Yes System Notification |
|---|
| Output Notification | System Notification with Snapshot (Tapo Care Services) System Notification with Clips (Tapo Care Services) |
|---|
| Network Connectivity | Connect via Wi-Fi or Ethernet IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
|---|
| Wireless Connectivity | Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub) Camera: 11b: 11 Mbps 11g: 54 Mbps |
|---|
| Network | 11n: 72.2 Mbps Transmission Rate Hub: 11b: 11 Mbps 11g: 54 Mbps 11n: 300 Mbps |
|---|
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP Max. Distance Between Hub 524.93 ft / 160 m * and Camera/Doorbell |
|---|
| 安全 | Security WPA/WPA2-PSK Hub: 9V DC Power Adapter Camera: Power Source Removable Rechargeable Lithium-ion Battery Optional Solar Panel: Tapo A200 (Sold separately) Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz Input Voltage Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A Camera Battery Pack Adapter Output: 5.0 V, 1.0 A Output Voltage Hub Adapter Output: 9.0 V, 0.85 A |
|---|
| 供電 | Hub Adapter: |
|---|
| DC Power Connector Size | Inside Ø: 0.08 in. / 2.1 mm Outside Ø: 0.22 in. / 5.5 mm Hub Adapter Cord Length: 4.92 ft / 1.5 m Power Cord Length USB Adapter Cable Length: 1.64 ft / 0.5 m |
|---|
| Typical Power Consumption | Camera Typical Power Consumption: 0.928 W |
|---|
| Maximum Power Consumption | Camera Max Power Consumption: 2.39 W |
|---|
| Certifications | CE, FCC, RoHS, RCM |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP65 (Camera) |
|---|
| System Requirements | Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher Tabletop |
|---|
| Mounting Options | Ceiling-Mounted Wall-Mounted Camera: -20℃ ~ 45℃ (-4 ℉ ~ 113 ℉ ) Hub: 0℃ ~ 40℃ (32 ℉ ~ 104 ℉ ) Operating Temperature |
|---|
| 儲存溫度 | -20℃ ~ 60℃ (-4 ℉ ~ 140 ℉ ) |
|---|
| 工作濕度 | 10%~90% RH, Non-condensing |
|---|
| Storage Humidity | 5%~90% RH, Non-condensing |
|---|

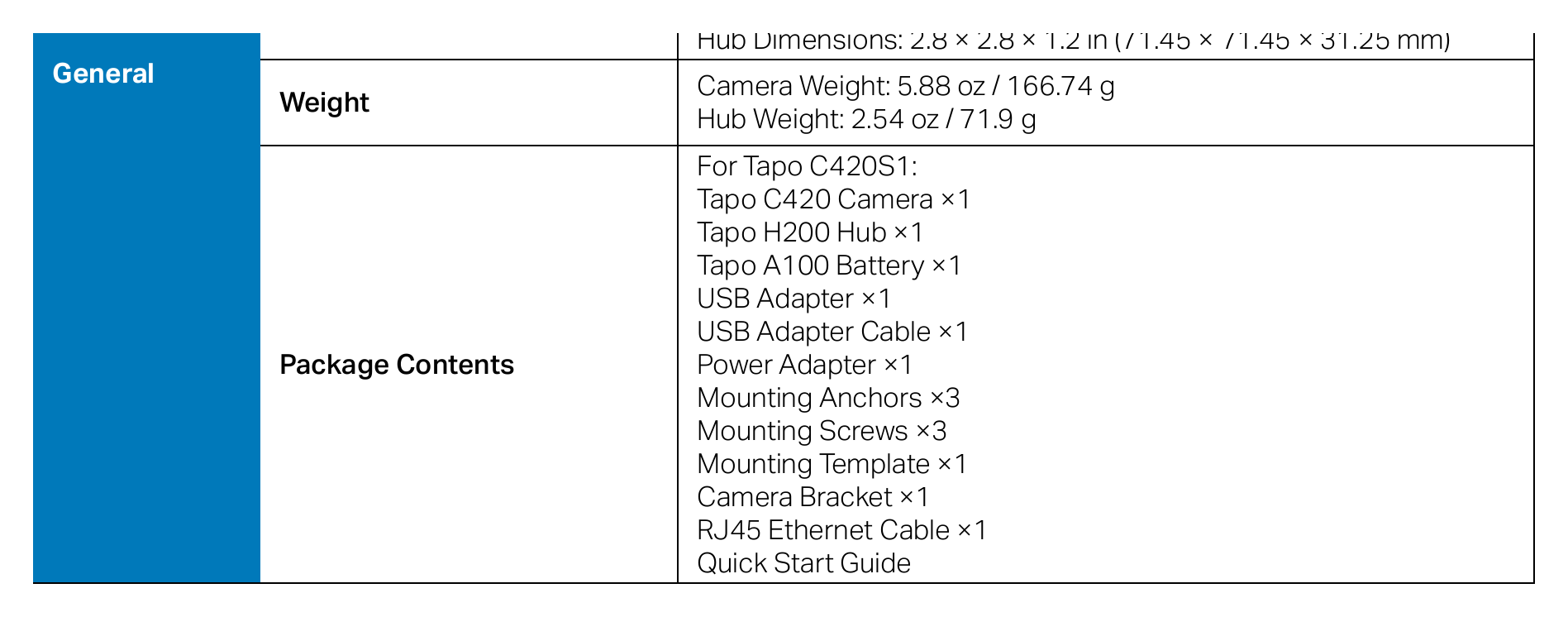

| Charging Temperature | 0℃ ~ 55℃ (32 ℉ ~ 131 ℉ ) Screw Size Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm) Dimensions Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |
|---|
| General | Camera Weight: 5.88 oz / 166.74 g Weight Hub Weight: 2.54 oz / 71.9 g For Tapo C420S1: Tapo C420 Camera ×1 Tapo H200 Hub ×1 Tapo A100 Battery ×1 USB Adapter ×1 USB Adapter Cable ×1 |
|---|
| Package Contents | Power Adapter ×1 Mounting Anchors ×3 Mounting Screws ×3 Mounting Template ×1 Camera Bracket ×1 RJ45 Ethernet Cable ×1 Quick Start Guide For Tapo C420S2: Tapo C420 Cameras ×2 Tapo H200 Hub ×1 Tapo A100 Batteries ×2 USB Adapter ×1 USB Adapter Cable ×1 Power Adapter ×1 Mounting Anchors ×6 Mounting Screws ×6 Mounting Templates ×2 Camera Brackets ×2 RJ45 Ethernet Cable ×1 Quick Start Guide |
|---|
| Front | Back Hub Appearance SYNC / RESET 1 1 1 2 3 2 3 4 5 1 SYNC Button Press to pair with the camera, or silence the hub when it rings. 7 SYNC/RESET Button 2 RESET 1 Spotlights 4 Status LED |
|---|
| While the camera is powered on: | Use a pin to press and hold for about 5 seconds until the hub |
|---|
| Indicate the status of your camera. | LED quickly blinks red to reset the hub. 2 Light Sensor Press for 1 second: Pair with the hub 5 Microphone Press and hold for about 5 seconds: Reset the camera 3 microSD Card Slot 3 Motion Sensor 6 Lens Insert a microSD card to record camera videos locally. Initialize the microSD card within the Tapo app first. microSD card not included. 4 Status LED Indicate the status of your hub. Notes:Connect |
|---|
