| IP 視頻輸入 | 32-Channel |
|---|
| 入口頻寬 | 320 Mbps |
|---|
| 出口頻寬 | 320 Mbps 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, |
|---|
| Video and Audio | HDMI Output Resolution 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, |
|---|
| VGA Output Resolution | 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|---|
| 視頻輸出模式 | HDMI/VGA Independent Output |
|---|
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
|---|
| 音訊壓縮 | G.711A/G.711U/G.726 |
|---|
| 視頻壓縮 | H.265+/H.265/ H.264+/H.264 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ Record Resolution 2CIF/CIF/QCIF |
|---|
| 同步回放 | 16-Channel† • 25fps: 16-ch@2MP, 32-ch@720P Capability • 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, |
|---|
| 網絡協議 | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP, IPv6, SNMP |
|---|
| Interoperability | ONVIF Profile S/T, CGI |
|---|
| Mobile Phone Access | Android, iOS |
|---|
| 瀏覽器 | Chrome (57+), Firefox (52+), Edge (91+) |
|---|
| SATA | 4 SATA Interfaces |
|---|
| 容量 | Up to 16 TB Capacity for Each HDD* |
|---|
| Record Mode | • Scheduling Recording • Motion Detection Recording • Instant Playback • Regular Playback Playback Mode • Tag Playback • Event Playback • Regular Backup Backup Mode • Video Clip Backup |
|---|
| Record | • Play |
|---|
| Management | • Pause • Stop • Fast Forward • Fast Backward • Play By Frame Playback Function • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection General Alarm • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection Not |
|---|
| 警報 | • Video Loss • Offline and IP Conflict |
|---|
| Anomaly Alarm | • Disk Exception • Login Exception • Fan Exception • Recording • White Light Alarm • Buzzer Alarm Linkage • Log • Audible Alarm Note: The alarm function requires the use of a camera. Network Interface |
|---|
| USB 接口 | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
|---|
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
|---|
| 警報輸入/輸出 | 16/4 |
|---|
| Serial Interface | 1, RS232 |
|---|
| External Interface | Power 1× AC Jack |
|---|
| Reset Button | 1 |
|---|
| Speaker | N/A |
|---|
| eSATA | N/A |
|---|
| HDMI | 1 |
|---|
| VGA | 1 |
|---|
| 儲存溫度 | -40 °C to 70 °C (-40 ℉ to 158 ℉ ) |
|---|
| Storage Humidity | 10%~90% RH Non-Condensing • VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables |
|---|
| Package Contents | • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet • HDD Screws |
|---|
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A Max Power Consumption (Without Disk) |
|---|
| General | Max Power Consumption 48 W (With Disk) |
|---|
| 工作溫度 | NVR: -10 °Cto 55 °C (14 ℉ to 131 ℉ ) |
|---|
| 工作濕度 | 10%~90% RH Non-Condensing |
|---|
| Dimensions (W X D X H) | 17.3 × 13 × 1.7 in (440 × 330 × 44 mm) |
|---|

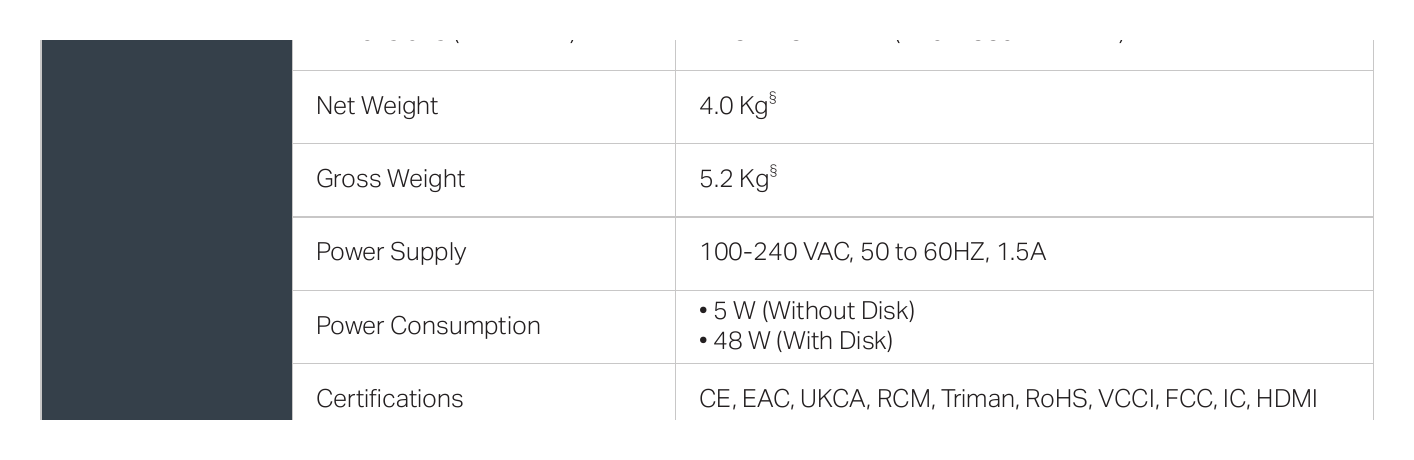

| 淨重 | 4.0 Kg§ |
|---|
| 毛重 | 5.2 Kg§ |
|---|
| 供電 | 100-240 VAC, 50 to 60HZ, 1.5A • 5 W (Without Disk) Power Consumption • 48 W (With Disk) |
|---|
| Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP. Due to the weight of this model, it is recommended to use a tray when mounting the rack with angle iron. Please note that |
|---|
