ZKTeco BL-855P48D-S8-AD 為5 MP Smart Hybrid Light Active Deterrence Motorized Vari-focal Bullet IP Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 BL-855P48D-S8-AD 香港價格連安裝報價。
| 影像感測器 | 1/2.7” 5 MP CMOS Sensor |
|---|---|
| 最大解像度 | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5 s to 1/100,000 s 0.001 Lux @ F1.4 to 2.8 (AGC on, Color) Min. Illumination 0 Lux (IR on, B & W) |
| S/N Ratio | > 52 dB |
| IR Range | 80 m |
| 白光距離 | 30 m |
| Illuminator On/Off Control | Auto / Manual |
| Smart Hybrid Light | 4 × IR / White Light LED Strobe Light (Active 1 × Red / Blue Strobe LED Deterrence Function) |
| Smart IR | Support Pan: 0° to 360° Angle Adjustment for Tilt: 0° to 90° Installation Rotation: 0° to 360° |
| TV System | PAL / NTSC Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Image Settings Gamma, Backlight mode, adjustable by platform software or web browser |
| Software Reset Default | Support |
| 一般功能 | Heartbeat, Mirror, Privacy mask, Log, Password reset |
| 鏡頭類型 | Motorized vari-focal |
| 鏡頭接口 | M22 |
| Mount Type | Board-in |
| 焦距 | 2.8 to 12 mm |
| Max. Aperture | F1.4 to 2.8 |
| Optical Zoom | 4X FOV: 38° to 98° Horizontal: 108° to 33° Field of View Vertical: 57° to 18° Diagonal: 130° to 38° |
| 光圈類型 | Motorized www.zkteco.com |
| Close Focus Distance | 2m |
| 鏡頭 | Detect Observe Recognize Identify |
| DORI Distance | Wide 63.2 m 29.1 m 16.0 m 8.0 m |
| Telephoto | 125.6 m 57.7 m 26.3 m 12.5 m |
| 視頻壓縮 | H.265 / H.264 5 MP (2592 × 1944) / 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) Resolution / 720 P (1280 × 720) 50 Hz (PAL): 25 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) Main stream: 60 Hz (NTSC): 30 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, |
| Max Video Frame Rate | 1280 × 960, 1280 × 720) 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360) Sub stream: 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360) |
| 第三碼流 | N/A |
| Video Stream Capability | Dual streams |
| 碼率控制 | CBR / VBR H.264: 896 Kbps to 8 Mbps Video Bit Rate H.265: 1024 Kbps to 8 Mbps |
| Day / Night | Auto (ICR) / Color / B & W |
| BLC | Support |
| HLC | Support |
| WDR | 120 dB True WDR |
| Scene Self-adaptation | Support |
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
| Gain Control | Low, Mid low, Mid, Mid high, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart / Ordinary (4 areas) |
| 感興趣區域 ROI | Support (4 areas, Level 1 to 6) |
| 除霧 | N/A |
| Mirror | Support |
| Image Rotation | 0° / 90° / 180° / 270° / Horizontal / Vertical |
| Privacy Masking | 4 areas |
| Corridor Mode | Support |
| Digital Zoom | Support |
| Anti-flicker | N/A |
| Built-in MIC | Support |
| Speaker | Built-in Speaker (max. 90 dB, 0.5 m) |
| 音訊壓縮 | G.711 ulaw |
| 環境噪音過濾 | Support |
| 音訊取樣率 | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
| 音訊碼率 | 64 Kbps (G.711 ulaw) Intelligent Video Analytics Target Counting, Object Lost/Left, Line Crossing, Area Detection, IVA (Perimeter Protection) Smart Motion Detection (human and vehicle targets classification) |
| Intelligent Search | Support fast retrieval by human and vehicle targets classification Support fast retrieval by human and vehicle targets classification, Intelligent Video playback and backup www.zkteco.com Face Detection |
| Face Templates | N/A |
| Face Quality Filtering | N/A |
| Face Detected Per Frame | N/A |
| Detection Area | N/A |
| Detected Face Size | N/A |
| Capture Response | N/A Alarm (With Active Deterrence Function) SD card error, Network disconnection, IP conflict, Illegal access, Motion Basic Alarm Event detection, Video tampering, External alarm Target Counting, Object Lost/Left, Line Crossing, Area Detection, Smart Motion Smart Alarm Event Detection (human and vehicle targets classification) Upload to memory card / FTP, notify surveillance center, trigger record |
| 同時取流 | Up to 15 channels |
| Network | 1 RJ45 10 M / 100 M self-adaptive Ethernet port |
| SDK and API | Support SDK, API and ONVIF Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password Cyber Security protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, |
| Interoperability | ONVIF Profile S / T / G |
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest |
| 網絡儲存 | FTP, Micro-SD card, auto network replenishment (ANR) |
| 瀏覽器 | IE / Edge / Firefox / Chrome / Safari AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS Management Software / ZKBio CVSecurity / ZKBio CVAccess |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| 機身儲存 | Micro-SD card slot (support max. 256 GB) |
| 操作系統 | Windows |
| P2P Cloud Service | Support Port |
| 音訊輸入 | 1 (RCA port) |
| 音訊輸出 | 1 (RCA port) |
| 警報輸入 | 2 (5 mA 3 V to 5 VDC each) |
| 警報輸出 | 1 (300 mA 12 VDC each) |
| Reset Button | Support |
| ANR | Support |
| USB | N/A |
| RS485 | Support Power |
| 供電 | PoE (IEEE802.3af, Class 3), DC 12 V ± 10% reverse polarity protection |
| 功耗 | Basic ≤ 3 W (12 VDC); 4.5 W (PoE) |
| 電源接口 | Ø 5.5 mm coaxial power plug www.zkteco.com Structure |
| Casing Material | Aluminium Alloy |
| 尺寸 | 279.7 × 90.6 × 89.4 (mm) |
| 淨重 | 1.4 KG |
| 毛重 | 1.6 KG |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| 儲存環境 | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| Protection Rating | IP67 Certifications |
| Certificate | ISO9001, ISO14001, CE, FCC |
| 類型 | Model Descripton 5 MP Smart Hybrid Light Active 5 MP IP Camera BL-855P48D-S8-AD Deterrence Motorized Vari-focal Bullet IP Camera 89.4 279 90.6 Junction Box with Junction Box with |
| Optional Bracket | Junction Box Pole Mount Corner Mount |
| Straight | Bent Picture V1.0 03/26/2024 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco.com Copyright © 2024 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

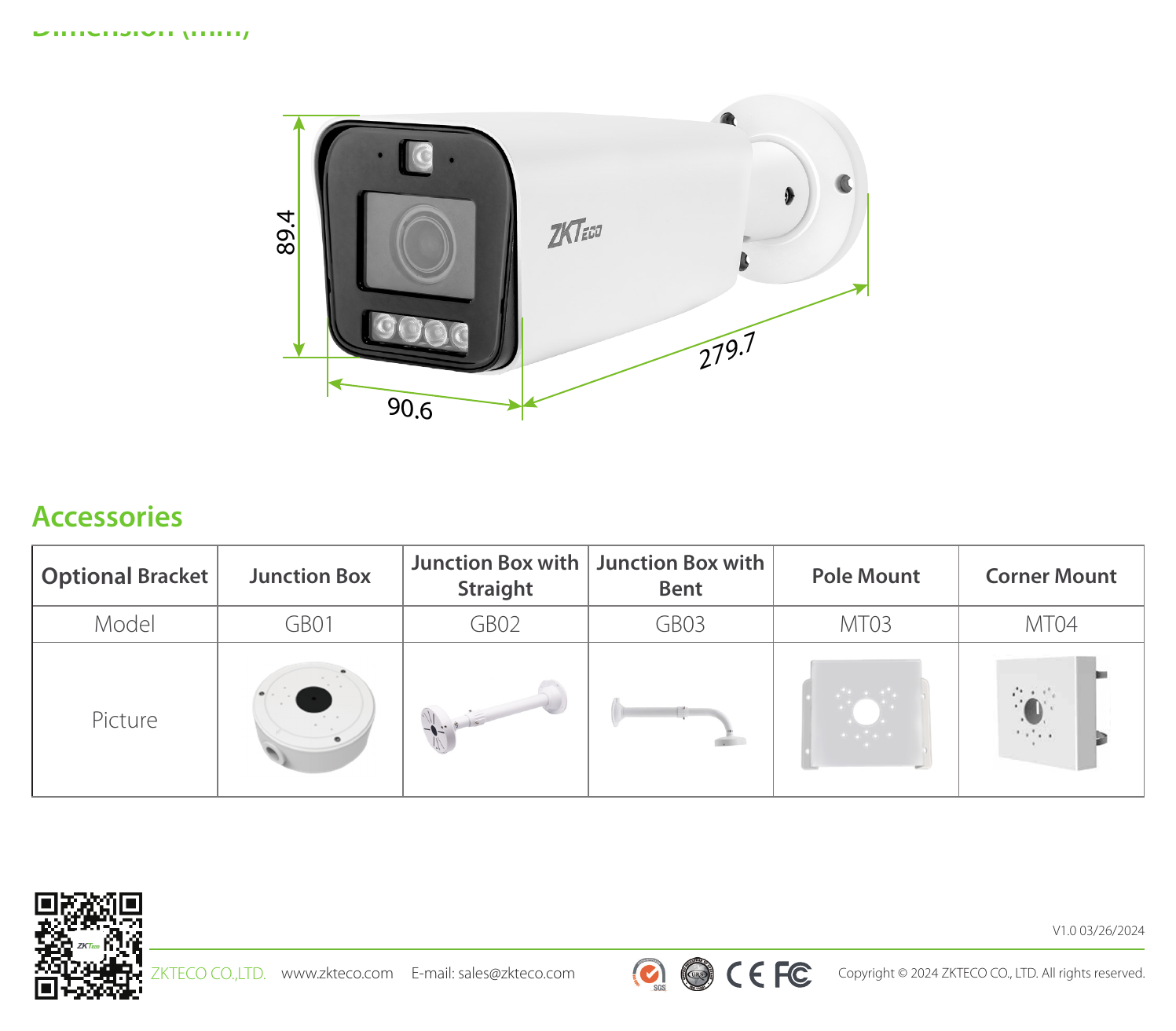

279.7 × 90.6 × 89.4 (mm)｜Unit: mm
