| Display | 4.3"@ TFT Color Touch LED Screen (480*800) |
|---|
| Camera | Binocular Camera @ 2MP WDR |
|---|
| 操作系統 | Linux CPU: Quad Core@1.2GHz RAM: 1GB; ROM: 8GB |
|---|
| Hardware | Speaker: 8 ohm @1 W Supplement Light: No Fingerprint Sensor: In-Glass Fingerprint |
|---|
| Authentication method | Fingerprint / Face / Card / Password (Virtual Keypad) |
|---|
| 用戶容量 | 10,000 (1:N) (Standard) |
|---|
| Fingerprint Template Capacity | 10,000 (1:N) (Standard) |
|---|
| Face Template Capacity | 10,000 (1:N) (Standard) |
|---|
| 卡容量 | 10,000 (1:N) (Optional) |
|---|
| Transaction Capacity | 100,000 (1:N) (Optional for Capacity Expansion: 200,000 ) |
|---|
| Max. User Password Length | 8 Digits less than 0.35 second (Facial Recognition) Biometric Verification Speed less than 0.5 second (Fingerprint Recognition) |
|---|
| Touchless Biometric Recognition Distance | 30cm to 200cm @ Face FAR ≤ 0.01% (Facial Recognition) False Acceptance Rate (FAR) % FAR≤0.0001% (Fingerprint) FRR ≤ 0.02% (Facial Recognition) False Rejection Rate (FRR) % FRR≤0.01% (Fingerprint) ZKFace V6.0 Biometric Algorithm ZKFingerprint V10.0 ID Card@125 kHz (Optional) HID Prox@125 kHz (Optional) |
|---|
| 卡類型 | IC Card@13.56 MHz (Optional) Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1/EV2; (125 kHz & 13.56 MHz Dual Frequency) TCP / IP*1 Wi-Fi (IEEE802.11a / b / g / n / ac) @ 2.4 GHz / 5 GHz Wiegand (Input & Output)*1 RS485: ZKTeco RS485*1 USB: Type A (USB Drive Only)*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm Output*1, LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B1 |
|---|
| Standard Functions | 14-digit User ID, Schedule Bell, Record Query, Tamper Switch Alarm, Photo ID, Mul- tiple Verification Methods, External Printer, HTTPs / SSH Backend Access, 12V Output |
|---|
| Optional Functions | Wi-Fi, 4G, Backup Battery, PoE DC 12V 3A |
|---|
| 供電 | PoE: IEEE 802.3af Backup Battery Max. Operating Hours: 2 Hours Backup Battery Max. Standby Hours: 2 Hours Charging Time: 2.5 to 3 Hours |
|---|
| 工作溫度 | 0°C to 45°C |
|---|
| 工作濕度 | 20% to 80% RH (Non-condensing) |
|---|

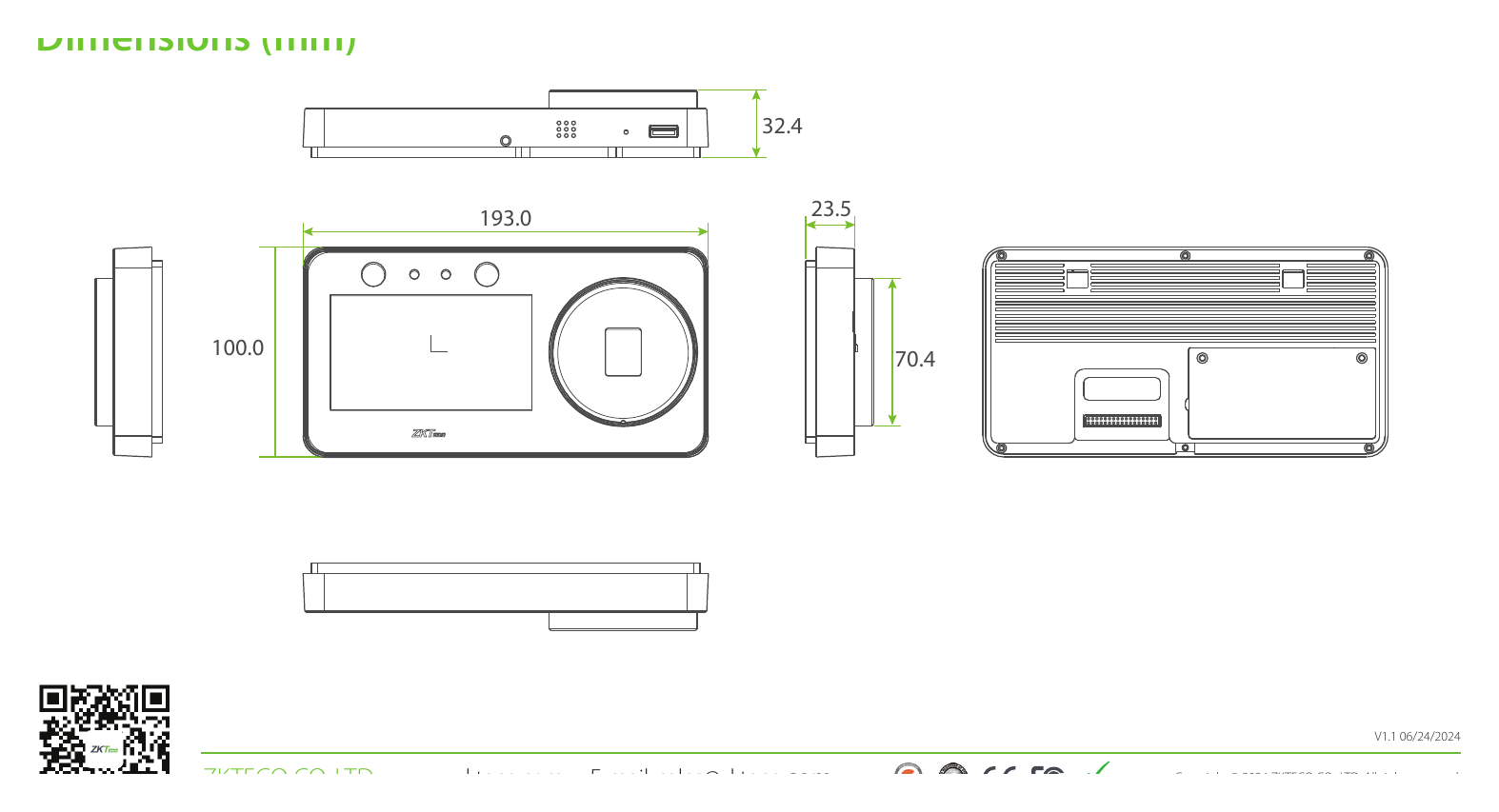

| 尺寸 | 193.00 mm*100.00 mm*32.40 mm (L*W*H) |
|---|
| 毛重 | 0.447 Kg |
|---|
| 淨重 | 0.402 Kg |
|---|
| Supported Software | ZKBioTime / ZKBio CVAccess (T&A Module) |
|---|
| 安裝 | Wall-mount |
|---|
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS Bio Time Client Bio CVAccess Internet Client |
|---|
| Door Sensor | Wiegand Internet Output Electric Lock No Touch EXIT |
|---|
| Card Reader | USB Drive FaceDepot 4A External Printer |
|---|
| 出門按鈕 | Alarm 32.4 193.0 23.5 100.0 70.4 V1.1 06/24/2024 ZKTECO CO.,LTD. www.zkteco.com E-mail: sales@zkteco.com RoHS Copyright © 2024 ZKTECO CO., LTD. All rights reserved. |
|---|
