ZKTeco PS-855PC20C-AD 為ZKBio Sense 4.5-inch 5 MP 20X Zoom Smart IP PTZ Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PS-855PC20C-AD 香港價格連安裝報價。
| 影像感測器 | 1/2.7” 5 MP CMOS Sensor |
|---|---|
| 最大解像度 | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive Scan |
| Electronic Shutter Speed | 1/5 s to 1/100,000 s 0.001 Lux @ F1.7 to F3.3 (AGC on, Color) 0 Lux (IR on, B & W) |
| S/N Ratio | > 52 dB |
| IR Range | 120 m |
| 白光距離 | 30 m |
| Illuminator On / Off Control | Auto / Manual |
| Illuminator Number | 4 × IR LED, 3 × White Light LED |
| Strobe Light | 1 × Red / Blue Strobe LED |
| Smart IR | Support Pan: 0° to 360° |
| Angle Adjustment for Installation | Tilt: 0° to 90° Rotation: 0° to 360° |
| TV System | PAL / NTSC Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
| Software Reset Default | Support |
| 一般功能 | Heartbeat, Mirror, Privacy mask, Log, Password reset |
| 鏡頭類型 | Motorized vari-focal |
| 鏡頭接口 | M32 |
| Mount Type | Board-in |
| 焦距 | 4.7 to 94 mm |
| Max. Aperture | F1.7 to F3.3 |
| Optical Zoom | 20X |
| Field of View | 64° (W) to 3.2° (T) |
| 光圈類型 | Fixed |
| Close Focus Distance | 2m |
| 鏡頭 | Detect Observe Recognize Identify |
| DORI Distance | Wide 482 m 228 m 111 m 61 m |
| Telephoto | 1060.0 m 420.4 m 210.0 m 105.8 m www.zkteco.com |
| Pan / Tilt Range | Pan: 0° to 360°, Tilt: -10° to 90° |
| 水平速度 | 0.1° to 200°/s |
| 垂直速度 | 0.1° to 180°/s |
| Preset | 225 |
| Preset Speed | 10-Level selection |
| Pattern Group | 4 |
| Auto Mode | Support Idle motion, Power-on auto detection, Rotation speed changes with optical zoom proportionally |
| Protocol | Pelco-D |
| Tour Group | 8 |
| A-B Scan Group | N/A |
| 視頻壓縮 | H.265 / H.264 |
| 解像度 | 5 MP (2592 × 1944) / 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720) 50 Hz (PAL): 25 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 主碼流 | 60 Hz (NTSC): 30 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Max Video Frame Rate | 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360) |
| 子碼流 | 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360) |
| 第三碼流 | N/A |
| Video Stream Capability | Dual streams |
| 碼率控制 | CBR / VBR H.264: 896 Kbps to 6 Mbps H.265: 1024 Kbps to 6 Mbps |
| Day / Night | Auto (ICR) / Color / B & W |
| BLC | Support |
| HLC | Support |
| WDR | 120 dB True WDR |
| Scene Self-adaptation | Support |
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp |
| Gain Control | Low, Mid low, Mid, Mid high, High |
| Noise Reduction | 2D / 3D NR |
| Motion Detection | Smart / Ordinary (4 areas) |
| 感興趣區域 ROI | Support (4 areas, Level 1 to 6) |
| 除霧 | N/A |
| Mirror | Support |
| Image Rotation | 0° / 180° / Horizontal / Vertical |
| Privacy Masking | 4 areas |
| Corridor Mode | Support |
| Digital Zoom | Support |
| Anti-flicker | N/A |
| Built-in MIC | Support |
| Built-in Loudspeaker | Support |
| 音訊壓縮 | G.711 ulaw |
| 環境噪音過濾 | Support |
| 音訊取樣率 | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
| 音訊碼率 | 64 Kbps (G.711 ulaw) www.zkteco.com Target Counting, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification) |
| Intelligent Search | Support fast retrieval by human and vehicle targets classification |
| Intelligent Video | Support fast retrieval by human and vehicle targets classification, playback and backup |
| Intelligent Tracking | Support auto tracking by human and vehicle targets classification |
| Face Templates | N/A |
| Face Quality Filtering | N/A |
| Face Detected Per Frame | N/A |
| Detection Area | N/A |
| Detected Face Size | N/A |
| Capture Response | N/A SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
| Smart Alarm Event | Target Counting, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection |
| Alarm Linkage Actions | Upload to memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email |
| 同時取流 | Up to 10 channels |
| Network | 1 RJ45 10 M / 100 M self-adaptive Ethernet port |
| SDK and API | Support SDK, API and ONVIF Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP |
| Cyber Security | filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket |
| Interoperability | ONVIF Profile S / T / G |
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest |
| 網絡儲存 | FTP, Micro-SD card, auto network replenishment (ANR) |
| 瀏覽器 | IE / Edge / Firefox / Chrome / Safari |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess |
| Mobile Application | AntarView Pro+ (iOS & Android) |
| 機身儲存 | Micro-SD card slot (support max. 256 GB) |
| 操作系統 | Windows, MacOS |
| P2P Cloud Service | Support |
| 音訊輸入 | N/A |
| 音訊輸出 | N/A |
| 警報輸入 | N/A |
| 警報輸出 | N/A |
| Reset Button | Support |
| ANR | Support |
| USB | N/A |
| RS485 | N/A www.zkteco.com |
| 供電 | PoE (IEEE802.3at, 30 W), DC 12 V ± 10% 3 A reverse polarity protection |
| 功耗 | Basic 22 W (12 VDC); 30 W (PoE) |
| 電源接口 | Ø 5.5 mm coaxial power plug |
| Casing Material | Aluminium Alloy + Plastics |
| 尺寸 | 280.6 × 128.1 × 207.4 (mm) |
| 淨重 | 2.1 kg |
| 毛重 | 2.62 kg |
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| 儲存環境 | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) |
| Protection Rating | IP66 |
| Certificate | ISO9001, ISO14001, CE, FCC |
| 類型 | Model Descripton 5 MP Smart IP PTZ Camera PS-855PC20C-AD ZKBio Sense 5 MP 20X Zoom Smart IP PTZ Camera |
| Dimension (mm) | 207.40 280.60 128.10 |
| Optional Bracket | Junction Box Wall Mount Ceiling Mount Pole Mount Corner Mount V1. 1 05/20/2024 |
| ZKTECO CO.,LTD. | www.zkteco.com E-mail: sales@zkteco.com Copyright©2024 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

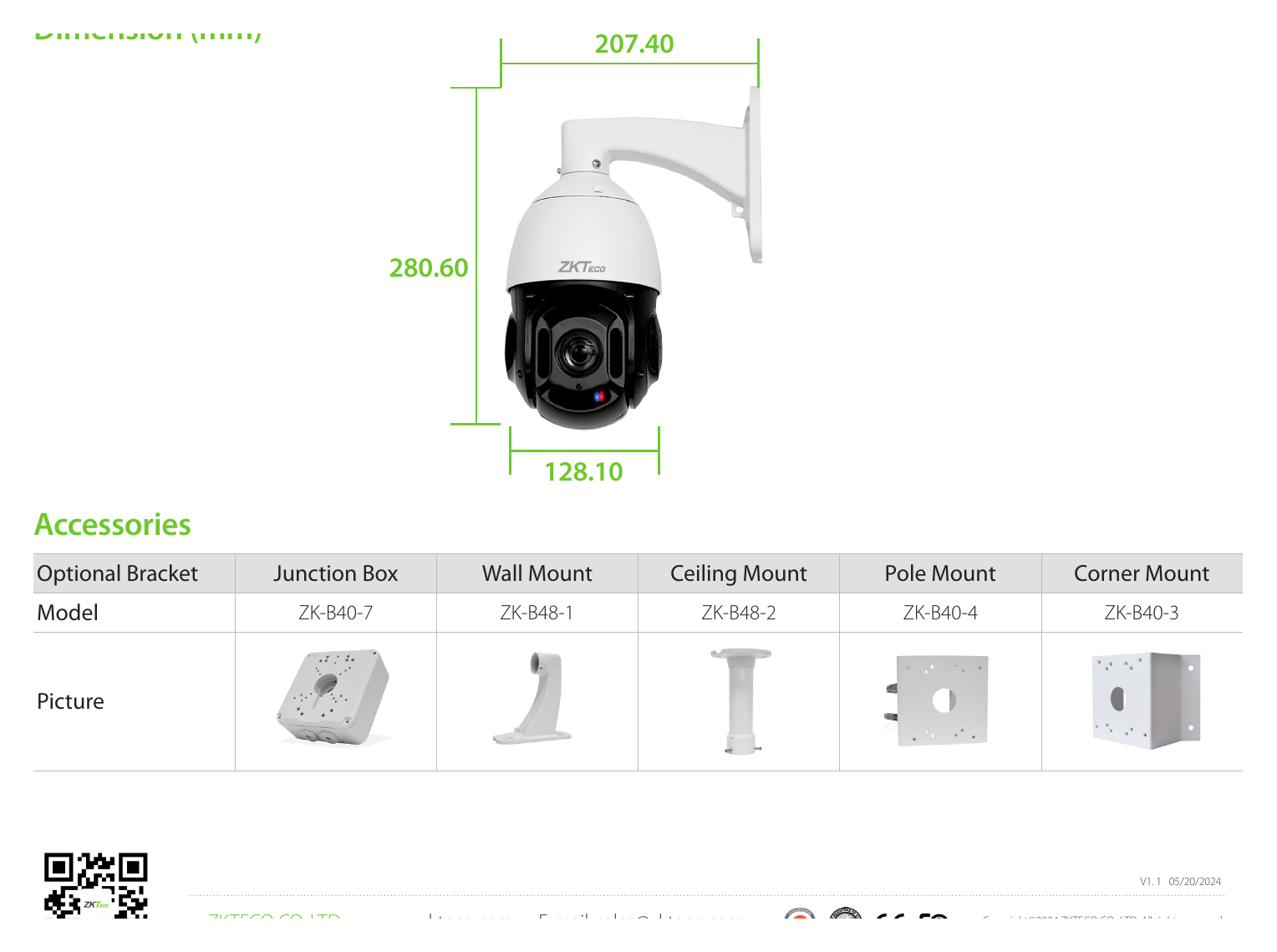

280.6 × 128.1 × 207.4 (mm)｜Unit: mm
