| Display | 2.8"@ TFT Color LCD Screen (320*240) |
|---|
| Camera | N/A Binocular Camera @ 1MP |
|---|
| 操作系統 | Linux CPU: Dual Core@1GHz CPU: Dual Core@1GHz RAM: 512MB; ROM: 8GB RAM: 512MB; ROM: 8GB Speaker: 8ohm @1W Speaker: 8ohm @1W |
|---|
| Hardware | Supplement Light: Yes Physical Keypad: 16 Keys Physical Keypad: 16 Keys Fingerprint Sensor: ZK Optical Sensor Fingerprint Sensor: ZK Optical Sensor Casing color: Black and White Casing Color: Black and White Fingerprint / Face / Card / Password (Physical |
|---|
| Authentication method | Fingerprint / Card / Password (Physical Keypad) Keypad) |
|---|
| Fingerprint Template Capacity | 3,000 (1:N) (Standard) 1,000 (1:N) (Standard) |
|---|
| Face Template Capacity | N/A 500 (1:N) (Standard) |
|---|
| 卡容量 | 3,000 (1:N) (Standard) 1,000 (1:N) (Standard) |
|---|
| 用戶容量 | 3,000 (1:N) (Standard) 1,000 (1:N) (Standard) |
|---|
| Transaction Capacity | 150,000 (1:N) |
|---|
| Max. User Password Length | 8 Digits less than 1 sec (Fingerprint) |
|---|
| Biometric Authentication Speed | less than 1 sec (Fingerprint) less than 1.2 sec (Facial Authentication) |
|---|
| Touchless Biometric Recognition Distance | / 50cm to 180cm (Facial Authentication) FAR ≤0.02% (Visible Light Facial Authentication) |
|---|
| False Acceptance Rate (FAR) % | FAR ≤ 0.0001% ( Fingerprint ) FAR ≤ 0.0001% ( Fingerprint ) FRR ≤ 0.05% (Visible Light Facial Authentication) |
|---|
| False Rejection Rate (FRR) % | FRR ≤ 0.1% (Fingerprint ) FRR ≤ 0.1% (Fingerprint ) ZKFace V4.0 |
|---|
| Biometric Algorithm | ZKFingerprint V13.0 (Standard) / V10.0 (Optional) ZKFingerprint V13.0 (Standard) /V10.0 (Optional) ID Card@125 kHz (Standard) Card Type IC Card@13.56 MHz (Optional) TCP/IP*1 Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional) USB: Type A (USB Drive Only )*1 Electric Lock*1, Door Sensor*1, Exit Button*1 ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Record Query, Schedule Bell, |
|---|
| Optional Functions | IC Card, Wi-Fi, Backup Battery |
|---|
| 供電 | DC 12V 1.5A 2,000 mAh (Lithium Battery) |
|---|
| Backup Battery | Max. Operating Hours : 4 Hours (Optional) Max. Standby Hours: 7 Hours Estimated Charging Time: 5 Hours |
|---|
| 工作溫度 | -5°C to 45°C |
|---|
| 工作濕度 | 10% to 90% RH (Non-condensing) |
|---|

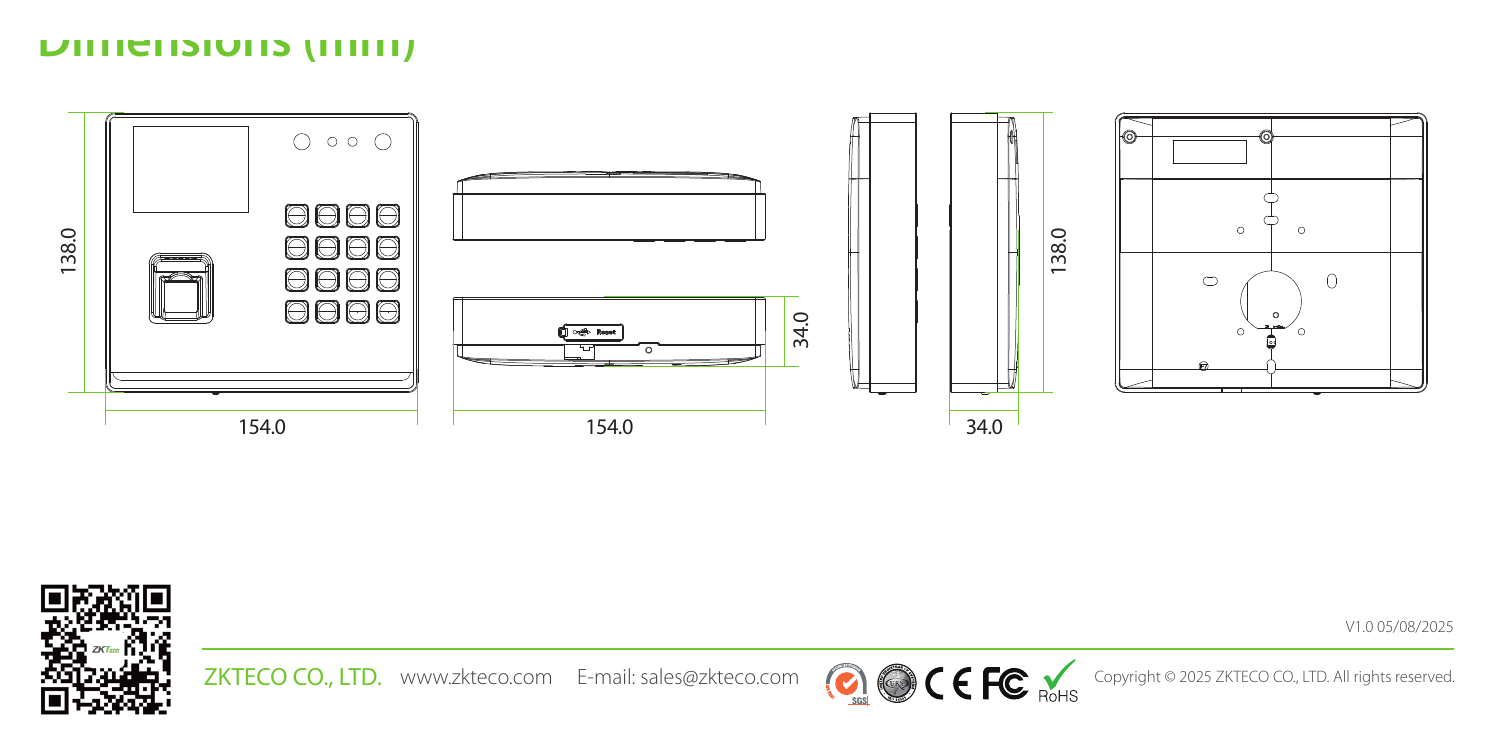

| 尺寸 | 154 mm*138 mm*34 mm (L*W*H) |
|---|
| 毛重 | 0.99 kg 1.03 kg |
|---|
| 淨重 | 0.40 kg 0.43 kg Mobile App.: ZKBio Zlink |
|---|
| Supported Software | Cloud-based Software: ZKBio Zlink On-Premise Software: ZKBio Time |
|---|
| 安裝 | Wall-mount (Compatible with Asian Gang Box / Single Gang Box) |
|---|
| Certifications | ISO14001, ISO9001,CE, FCC, RoHS |
|---|
| 有線網絡 | No Touch EXIT Exit Button |
|---|
| ZKBio Zlink | Zlink Internet Web Portal ZKBio Zlink Cloud Server (Minerva IoT) Wireless Network (Optional) SenseFP M2 and SenseFace M2F-LR ZKBio Zlink Mobile App BEST Protocol Internet AES256/ TLS1.2 Encryption |
|---|
| SenseFP M2 | Door Sensor and |
|---|
| Internet | SenseFace M2F-LR Relay No Touch EXIT Electric Lock Exit Button |
|---|
| 客戶端 | Client PUSH Protocol 138.0 34.0 154.0 154.0 34.0 V1.0 05/08/2025 ZKTECO CO., LTD. www.zkteco.com E-mail: sales@zkteco.com Copyright © 2025 ZKTECO CO., LTD. All rights reserved. |
|---|
