ZKTeco Z8616NEQ-16P-S 為H.265+ 16 Channels ZKBio Sense Smart Network Video Recorder，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 Z8616NEQ-16P-S 香港價格連安裝報價。
| Main Processor | Multi-core embedded processor |
|---|---|
| 操作系統 | Embedded LINUX |
| Max.IPC Video Input | 16CH |
| Two-way Talk | Support |
| 音訊壓縮 | G.711u |
| Max.Audio Input | 16CH by IPC |
| Third Party Camera Access | ONVIF & RTSP Live View |
| Display Split | 1/4/6/8/9/16 CH 12MP(4000*3000)/8MP(3840*2160)/6MP(3288*1850)/5MP(2592*1944)/4MP((2560*1440 Resolution )/3MP(2304*1296)/2MP(1920*1080)/1.3MP(1280*1024)/ 1MP(1280*720)/D1(1024*768) Local AI OFF:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P Max.Live View Capability Local AI ON:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P Recording |
| 視頻壓縮 | H.265+ / H.265 / H.264 |
| 錄影解像度 | 12MP/8MP/6MP/5MP/4MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF Local AI OFF:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P Max. Decoding Capability Local AI ON:2CH@12MP, 4CH@6MP/5MP,6CH@4MP,8CH@2MP,9CH@2MP,16CH@720P Local AI OFF:160Mbps Incoming Bandwidth Local AI ON:156Mbps Local AI OFF:80Mbps Outgoing Bandwidth Local AI ON:80Mbps |
| 碼流類型 | Video, Video & Audio Main Stream: 16Kbps ~ 12288Kbps Bit Rate Sub Stream: 16Kbps ~ 4096Kbps |
| Storage Method | Local hard drive and network |
| Record Mode | Schedule, Manual, Motion Detection, IVA Events Alarm |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 1~ 10 min Playback and Backup |
| Playback Channel | 16CH synchronously playback |
| Search Mode | Time / Date, Alarm Types, IVA Search Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Playback Function Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen |
| Backup Mode | USB Device / Network Remote Intelligent Video Analytics Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle |
| IVA by Camera | classification), Target Counting, Object Lost/Left, Fire Detection,Temperature Measurement, Heat Point Detection, Smoking Detection Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle Local IVA Functions classification), Target Counting, Counting Statistics, Object Lost/Left |
| IVA by Device(Number of Channels) | 2 |
| IVA by Camera (Number of Channels) | 16 IVA Alarm Line Crossing, Area Detection, Smart Motion Detection, Target Counting, Object |
| Smart IVA Alarm | Lost/Left, Fire Detection, Temperature Measurement, Heat Point Detection, Smoking Detection www.zkteco.com |
| Regular Detection | Motion Detection / Video Shelter / Video Loss / Privacy Mask |
| Anomaly Alarm | HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict |
| Alarm Linkage | Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center |
| Smart Search | Support smart search out target video by human and vehicle classification filtering TCP/IP, HTTP,HTTPS, ONVIF, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, IPV6,UDP, Network Protocol SSL/TLS, PPPoE, WebSocket, ICMP, IGMP, RTMP, RTP, RTCP, ARP |
| Max. Online User | 30 |
| 瀏覽器 | Google Chrome/Microsoft Edge/Firefox/Safari |
| Management Platform | ZKBio CVSecurity / CVAccess / AntarVis 2.0 |
| Mobile Application | AntarView Plus (iOS & Android) |
| P2P Cloud Service | Support OTA updates via the AntarView Plus |
| Interoperability | ONVIF Profile S/T/G, SDK, CGI, API Storage & Auxiliary Interface |
| SATA Ports | 1 SATA Port, up to 12 TB storage capacity |
| eSATA | N/A |
| Raid 0/1/5/6/10 | N/A |
| HDMI | 1*HDMI (4K) |
| VGA | 1*VGA(1920*1080/60Hz, 1280*1024/60Hz)(support independent output) |
| 網絡接口 | 1 RJ-45 Port (10/100/100/1000 Mbps self adaptive ) |
| PoE Ports | 16 Ports |
| 標準 | IEEE802.3af/at self adaptive |
| USB | 2*USB 2.0 , 1*USB 3.0 |
| Audio Input/Output | 1In / 1 Out |
| Alarm Input/Output | N/A |
| RS-485 | N/A |
| RS-232 | N/A Power |
| 供電 | AC100~240V, 50Hz~60Hz ≤24W (withoutHDD) Power Consumption PoE ports: 15W for each output |
| Casing | 1.5U |
| 工作溫度 | -10°C ~ 55°C / 14°F ~ 131°F |
| 工作濕度 | 10% ~ 90% |
| Storage Humidity | 10% ~ 90% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| 安裝 | Desktop / Cabinet mount |
| Dimensions(L*W*H) | 325 * 307* 52(mm) |
| 淨重 | 3KG(without HDD) |
| 毛重 | 3.5KG(without HDD) |
| Certifications | CE-LVD; CE-EMC; FCC certification |
| Environment | CE-RoHS, WEEE, Reach self-declaration www.zkteco.com |
| Name | Model Descripton |
| ZKBio Sense Smart NVR | Z8616NEQ-16P-S 16 CH H.265+ 4K NVR, 1 SATA V0.1 06/23/2025 ZKTECO CO.,LTD. www.zkteco.com E-mail: sales@zkteco.com Copyright©2025 ZKTECO CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。

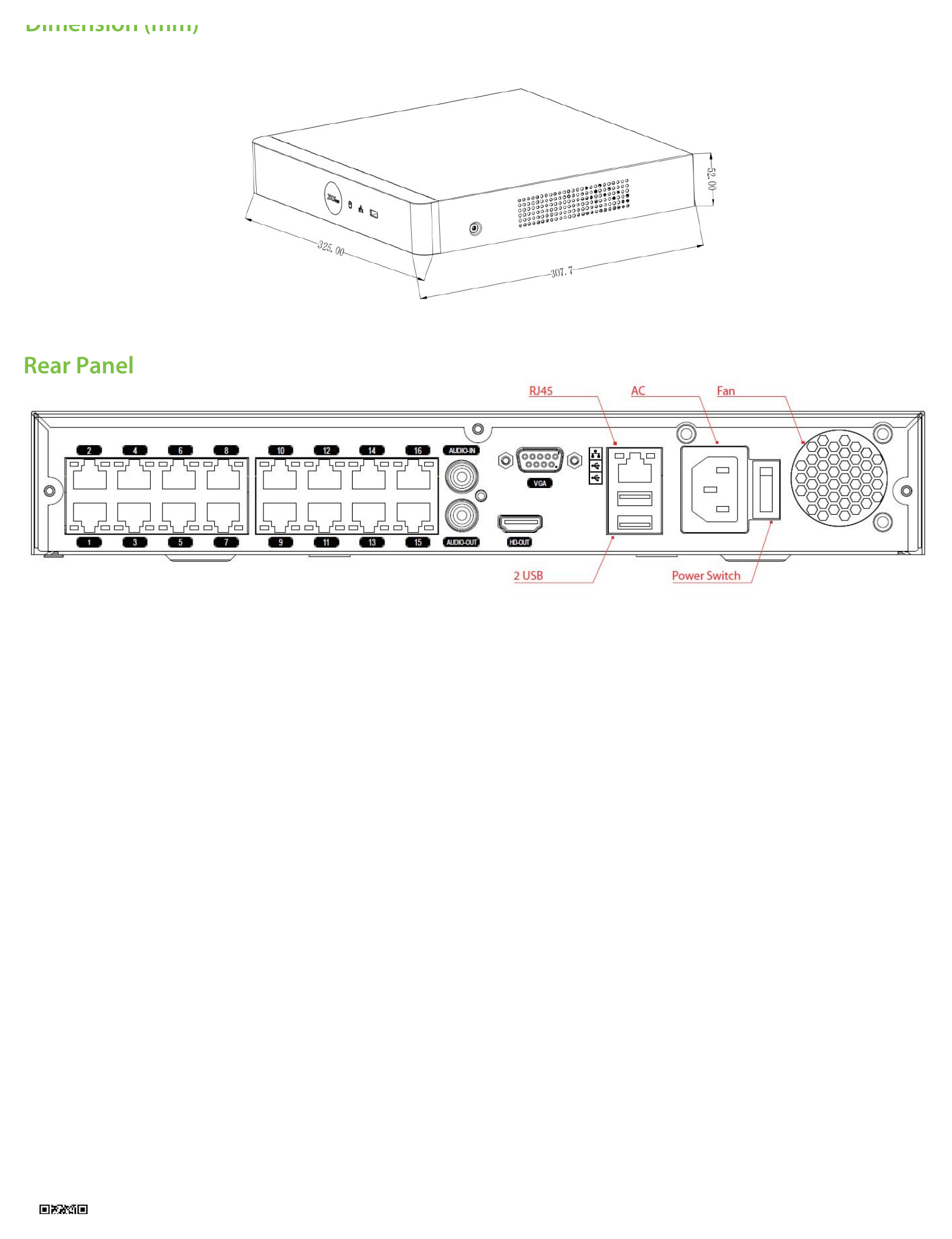

詳見圖示｜Unit: mm
Z8616NEQ-16P-S ZKTeco H.265+ 16 Channels ZKBio Sense Smart Network Video Recorder亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，Z8616NEQ-16P-S 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 Z8616NEQ-16P-S 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
Z8616NEQ-16P-S ZKTeco H.265+ 16 Channels ZKBio Sense Smart Network Video Recorder適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
