| Camera | BLC Mode BLC / HLC / WDR |
|---|
| 影像感測器 | 1/2.5” 8Megapixel progressive scan CMOS White Balance Auto/Natural/Street Lamp/Outdoor/Manual |
|---|
| Effective Pixels | 3840(H)x2160(V) Gain Control Auto/Manual |
|---|
| RAM/ROM | 512MB/32MB Noise Reduction 3D DNR |
|---|
| Scanning System | Progressive Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s Region of Interest Off / On (4 Zone) 0.05Lux/F1.4 (Color,1/3s,30IRE) Electronic Image Stabilization |
|---|
| Minimum Illumination | 0.2Lux/F1.4 (Color,1/30s,30IRE) N/A (EIS) 0Lux/F1.4(IR on) |
|---|
| Smart IR | Support |
|---|
| S/N Ratio | More than 50dB |
|---|
| 除霧 | N/A |
|---|
| IR Distance | Distance up to 50m (164ft) |
|---|
| Digital Zoom | 16x |
|---|
| IR On/Off Control | Auto/ Manual |
|---|
| Flip | 0°/90°/180°/270° |
|---|
| IR LEDs | 3 |
|---|
| Mirror | Off / On |
|---|
| Privacy Masking | Off / On (4 Area, Rectangle) |
|---|
| 鏡頭類型 | Motorized/ Auto Iris(DC) |
|---|
| Mount Type | Board-in |
|---|
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
|---|
| 焦距 | 2.7mm~12mm |
|---|
| Max. Aperture | F1.4 Network |
|---|
| Angle of View | H:110°~40° , V:58°~23° Ethernet RJ-45 (10/100Base-T) HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; |
|---|
| Optical Zoom | 4x |
|---|
| Protocol | DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|---|
| Focus Control | Motorized |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Close Focus Distance | 0.3m |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| DORI 偵測距離 | W 85m(280ft) 34m(112ft) 17m(56ft) 8.5m(28ft) Max. User Access 10 Users /20 Users Distance |
|---|
| T | 228m(748ft) 91m(299ft 46m(151ft) 23m(75ft) NAS |
|---|
| Pan/Tilt/Rotation | Edge Storage Local PC for instant recording Mirco SD card 128GB |
|---|
| Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚ |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence |
|---|
| Management Software | Smart PSS, DSS, Easy4ip |
|---|
| IVS | Tripwire, Intrusion, Object Abandoned/Missing |
|---|
| Smart Phone | IOS, Android Advanced Intelligent Functions Face Detection Certifications CE (EN 60950:2000) |
|---|
| Streaming Capability | 3 Streams 4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ |
|---|
| Video Interface | 1 Port(For adjustment only) |
|---|
| 解像度 | 3M(2304×1296)/ 1080P(1920×1080)/1.3M(128 0x960)/ 720P(1280×720)/ D1(704×576/704×480)/ |
|---|
| VGA(640×480)/ CIF(352×288/352×240) | Audio Interface 1/1 channel In/Out |
|---|
| Main Stream: 4K(1~15fps)/3M(1~25/30fps) | RS485 N/A |
|---|
| Frame Rate | Sub Stream: D1(1~25/30fps) 1 channel In: 5mA 5VDC Alarm 1 channel Out: 300mA 12VDC Third Stream: 720P(1~25/30fps) Electrical |
|---|
| 碼率控制 | CBR/VBR |
|---|
| 供電 | DC12V, AC24V, PoE+(802.3at)(Class 4) |
|---|
| Bit Rate | H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
|---|
| 功耗 | <15W www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| PFB302S | PFA138 PFB201C LR1002 |
|---|
| Vandal Resistance | IK10 Wall mount x In-ceiling mount ePoE Over Coax Converter Construction |
|---|
| Casing | Metal |
|---|

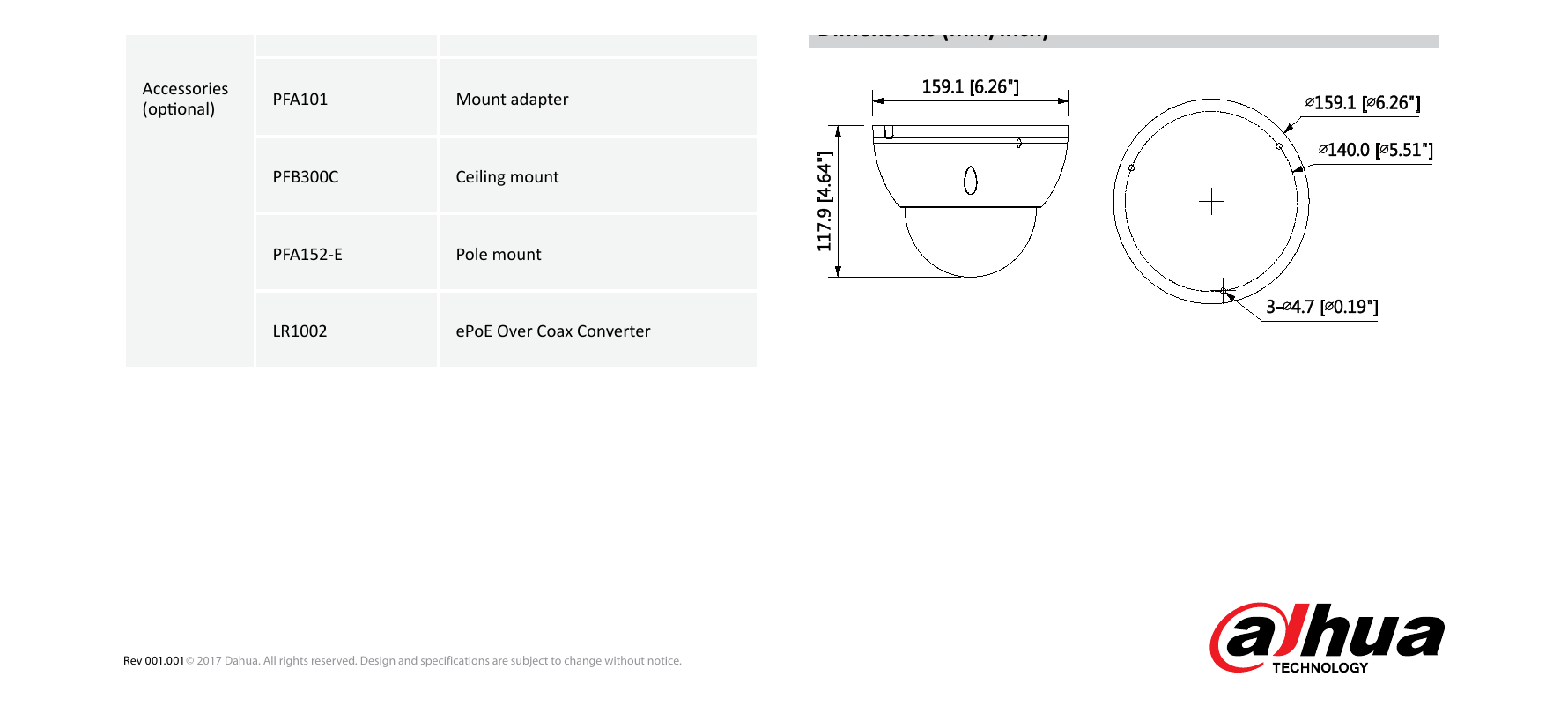

| 尺寸 | Φ159.1mm×117.9mm (6.26”×4.64”) |
|---|
| PFB300C | PFA152-E PFA101 |
|---|
| 淨重 | 0.95kg (2.09lb) Ceiling mount Pole mount Mount adapter |
|---|
| 毛重 | 1.20kg (2.65lb) Ordering Information |
|---|
| In-ceiling Mount | Junction Mount Pole Mount |
|---|
| 類型 | Part Number Description PFB201C PFA138 PFA101 + PFB302S + PFA152 |
|---|
| DH-IPC- | 8MP IR Dome Network Camera, WDR, |
|---|
| HDBW5831EP-ZE | PAL |
|---|
| HDBW5831EN-ZE | NTSC 8MP camera Ceiling Mount Wall Mount |
|---|
| PFA101 + PFB300C | PFA101 + PFB302S 8MP IR Dome Network Camera, WDR, IPC-HDBW5831EP-ZE PAL |
|---|
| IPC-HDBW5831EN- | 8MP IR Dome Network Camera, WDR, |
|---|
| ZE | NTSC |
|---|
| PFA138 | Junction box |
|---|
| PFB201C | In-ceiling mount Dimensions (mm/inch) Accessories |
|---|
| PFA101 | Mount adapter (optional) |
|---|
| PFA152-E | Pole mount |
|---|
| LR1002 | ePoE Over Coax Converter www.dahuasecurity.com |
|---|
