DAHUA DH-IPC-HDBW1431E-S4 CCTV攝影機安裝・保養

Name: DAHUA DH-IPC-HDBW1431E-S4 DH-IPC-HDBW1431E-S4
Brand: dahua
SKU: DH-IPC-HDBW1431E-S4

產品簡介

dahua DH-IPC-HDBW1431E-S4 為DH-IPC-HDBW1431E-S4，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DH-IPC-HDBW1431E-S4 香港價格連安裝報價。

Camera：Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144
影像感測器：1/3”4Megapixel progressive CMOS
Day/Night：Auto(ICR)/Color/B/W
最大解像度：2688 (H) ×1520 (V)
BLC：Yes

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

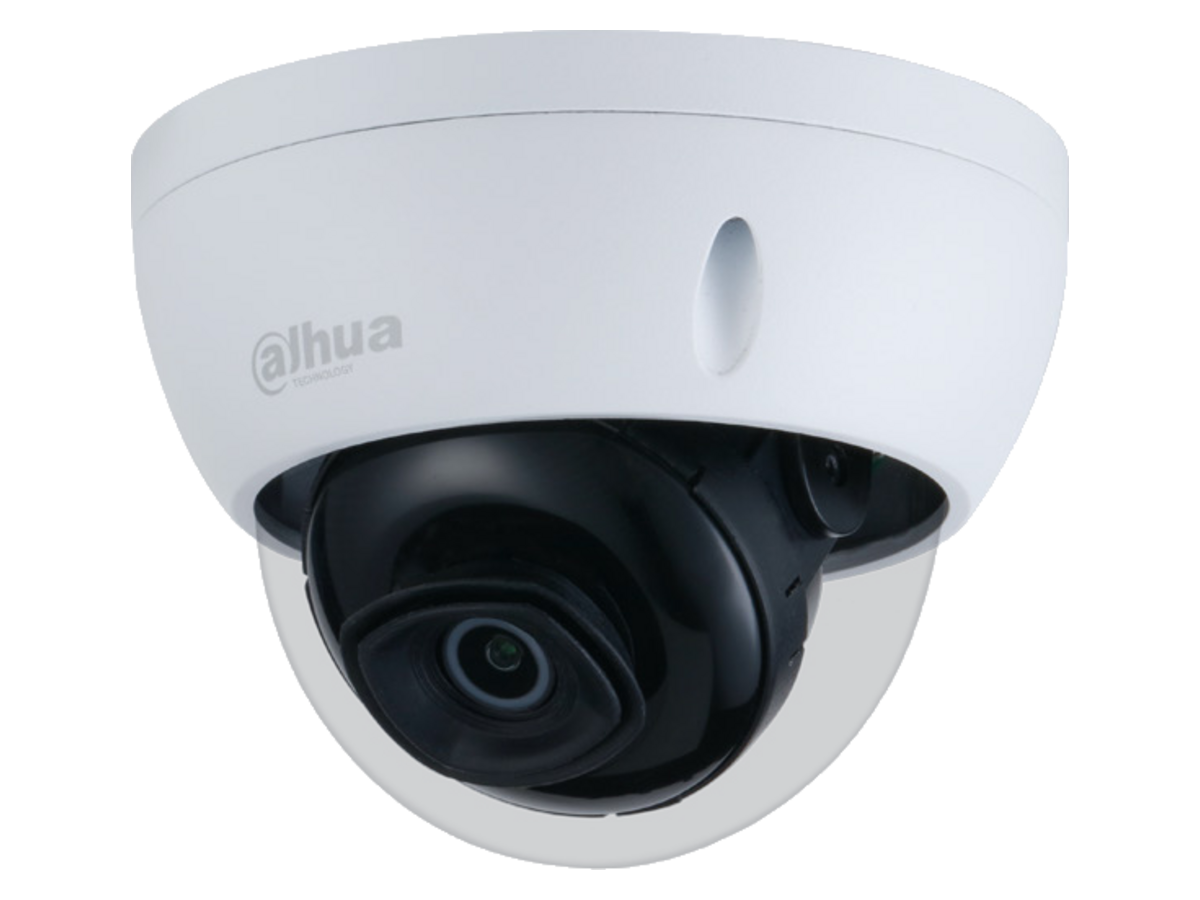

DH-IPC-HDBW1431E-S4 dahua DH-IPC-HDBW1431E-S4 產品圖片

詳細規格

Camera	Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
影像感測器	1/3”4Megapixel progressive CMOS
Day/Night	Auto(ICR)/Color/B/W
最大解像度	2688 (H) ×1520 (V)
BLC	Yes
ROM	128 MB
HLC	Yes
RAM	128 MB
WDR	120 dB
Scanning System	Progressive Auto/natural/street lamp/outdoor/manual/regional White Balance custom
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100000 s
Gain Control	Manual/Auto
S/N Ratio	> 56 dB
Noise Reduction	3D NR
最低照度	0.03 Lux @ F2.0
Motion Detection	OFF/ON (4 areas, rectangular)
Illumination Distance	30 m (98.4 ft)
Region of Interest(RoI)	Yes (4 areas)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR LED) Smart Illumination Yes
Pan: 0°–355°	0°/90°/180°/270°
Pan/Tilt/Rotation Range	Tilt: 0°–65° Image Rotation (Support 90°/270° with 2688 × 1520 resolution and
Rotation: 0°–355°	lower.)
鏡頭	Mirror Yes
鏡頭類型	Fixed-focal
Privacy Masking	4 areas
Mount Type	M12 Alarm 2.8 mm
焦距	Network disconnection; IP conflict; motion detection; 3.6 mm
Alarm Event	video tampering; illegal access; voltage detection;
Max. Aperture	F2.0 security exception 2.8 mm: Network Horizontal: 93°
Vertical: 53°	Network RJ-45 (10/100 Base-T) Diagonal: 111° Field of View 3.6 mm: SDK and API Yes Horizontal: 81°
Vertical: 44°	Video encryption; firmware encryption; configuration
Diagonal: 95°	encryption; Digest; WSSE; account lockout; security logs;
Cyber Security	IP/MAC filtering; generation and importing of X.509
光圈類型	Fixed certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade 2.8 mm: 0.8 m (2.6 ft) Close Focus Distance 3.6 mm: 1.4 m (4.6 ft) IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP;
DORI Distance	(183.7 ft) (73.5 ft) (36.7 ft) (18.4 ft) 80.0 m 32.0 m 16.0 m 8.0 m ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; 3.6mm Interoperability (262.5 ft) (105.0 ft) (52.5 ft) (26.2 ft) Genetec; P2P
Video	User/Host 20 H.265; H.264; H.264B; MJPEG (only supported Storage FTP; SFTP;NAS Video Compression by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+ Browser Chrome Firefox Main Stream: 2688 × 1520 (1 fps–20 fps)
Management Software	Smart PSS; DSS; DMSS 2560 × 1440 (1 fps–25/30 fps) Video Frame Rate Sub Stream: 704 × 576 (1 fps–20/25 fps) Mobile Phone IOS; Android 704 × 480 (1 fps–20/30 fps)
Stream Capability	2 streams 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); CE-LVD: EN62368-1 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M CE-EMC: Electromagnetic Compatibility Directive
解像度	Certifications (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 2014/30/EU 480); VGA (640 × 480); CIF (352 × 288/352 ×240) FCC: 47 CFR FCC Part 15, Subpart B www.dahuasecurity.com
供電	Accessories
功耗	< 5.5W
Operating Conditions	-40°C to +60°C (-40°F to +140°F) /less than≤95% PFA136 PFB203W PFA152-E
Junction Box	Wall Mount Pole Mount
Strorage Conditions	-40°C to +60°C (-40°F to +140°F)
防護等級	IP67, IK10 Structure
Casing	Metal PFA106 PFB220C PFM321D
Mount Adapter	Ceiling Mount 12V DC 1A Power
尺寸	81 mm × Φ109.9 mm (3.2" × Φ4.3") Adapter
淨重	0.35 kg (0.8 lb)
毛重	0.48 kg (1.1 lb)
LR1002-1ET/1EC	PFM900-E
Single-port �ong	Integrated Mount
Ordering Information	�each �thernet over �ester �oax �xtender
類型	Part Number Description 4MP Entry IR Fixed-focal Dome DH-IPC-HDBW1431EP-S4 Netwok Camera,PAL 4MP
PFA136	Junction Box
PFB203W	Wall Mount
PFA152-E	Pole Mount
PFA106	Mount Adapter Accessories (optional) PFB220C Ceiling Mount
PFM321D	12V DC 1A Power Adapter Single-port Long Reach Ethernet LR1002-1ET/1EC over Coax Extender
PFM900-E	Integrated Mount Tester Dimensions (mm[inch])
Rev 001.001	© 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

規格書連結更新中，如需完整PDF請WhatsApp查詢

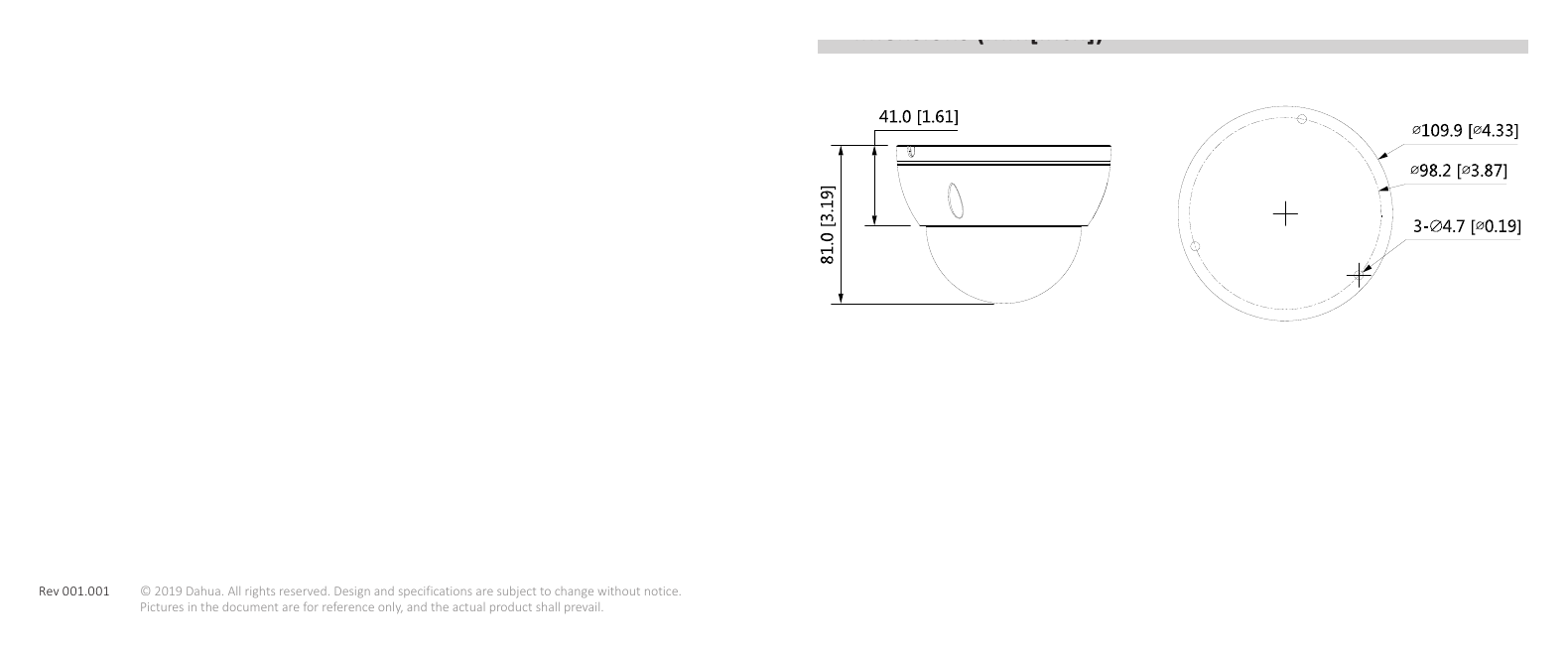

外形尺寸

81 mm × Φ109.9 mm (3.2" × Φ4.3") Adapter｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，DH-IPC-HDBW1431E-S4 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

DH-IPC-HDBW1431E-S4 dahua DH-IPC-HDBW1431E-S4亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

常見問題

DH-IPC-HDBW1431E-S4 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，DH-IPC-HDBW1431E-S4 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

DH-IPC-HDBW1431E-S4 定 IPC-HDBW3541R-ZAS 邊個好？

兩者主要規格分別：影像感測器方面，DH-IPC-HDBW1431E-S4 係 1/3”4Megapixel progressive CMOS，IPC-HDBW3541R-ZAS 係 1/2.7”5Megapixel progressive CMOS；最大解像度方面，DH-IPC-HDBW1431E-S4 係 2688 (H) ×1520 (V)，IPC-HDBW3541R-ZAS 係 2592 (H) ×1944 (V)；RAM方面，DH-IPC-HDBW1431E-S4 係 128 MB，IPC-HDBW3541R-ZAS 係 512 MB。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
