| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 1/3” 3Megapixel progresive CMOS Noise Reduction 3D DNR |
|---|
| Effective Pixels | 2304H)x1536(V) Motion Detetion Off / On (4 Zone, Rectangle) |
|---|
| RAM/ROM | 256MB/16MB Region of Interest Off / On (4 Zone) |
|---|
| Scanning System | Progressive Electronic Image Support |
|---|
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s Smart IR Support |
|---|
| Minimum Illumination | 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on) Digital Zoom 16x |
|---|
| S/N Ratio | More than 50dB Flip 0°/90°/180°/270° |
|---|
| IR Distance | Distance up to 30m(98ft) Mirror Off / On |
|---|
| IR On/Off Control | Auto/ Manual Privacy Masking Off / On (4 Area, Rectangle) |
|---|
| IR LEDs | 24 Audio |
|---|
| 鏡頭 | Compression N/A |
|---|
| 鏡頭類型 | Fixed Network |
|---|
| Mount Type | Board-in Ethernet RJ-45 (10/100Base-T) |
|---|
| 焦距 | 2.8 mm (3.6 mm optional) HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; |
|---|
| Protocol | DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; |
|---|
| Max. Aperture | F2.0/F2.0 Bonjour;802.1x;Multicast;ICMP;IGMP; |
|---|
| Angle of View | H:98°/77°, V:51°/41° |
|---|
| Interoperability | ONVIF, PSIA, CGI |
|---|
| Focus Control | Fixed |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Close Focus Distance | N/A |
|---|
| Max. User Access | 10 Users/20 Users |
|---|
| DORI Distance | 2.8 mm 58m(190ft) 23m(75ft) 12m(39ft) 6m(20ft) |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari 3.6 mm 73m(240ft) 29m(95ft) 15m(49ft) 7m(23ft) |
|---|
| Management Software | Smart PSS, DSS,Easy4ip |
|---|
| Smart Phone | iPhone, iPad, Android Phone |
|---|
| Pan/Tilt Range | Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355° Certifications CE (EN 60950:2000) |
|---|
| Compression | H.264+/H.264 Certifications UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|---|
| Streaming Capability | 2 Streams 3M(2048×1536)(2304×1296)/1080P(1920 |
|---|
| 解像度 | ×1080)/1.3M(1280×960)720P(1280×720)/ Video Interface N/A D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Audio Interface | N/A 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)s) |
|---|
| Frame Rate | RS485 N/A D1/CIF(1 ~ 25/30fps) |
|---|
| 警報 | N/A |
|---|
| 碼率控制 | CBR/VBR Electrical |
|---|
| Bit Rate | H264:24K ~ 8192Kbps |
|---|
| 供電 | DC12V PoE (802.3af)(Class 0) |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| 功耗 | <5.0W |
|---|
| BLC Mode | BLC / HLC / DWDR www.dahuasecurity.com |
|---|
| Environmental | Accessories |
|---|
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH Optional: |
|---|
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|---|
| 防護等級 | IP67 |
|---|
| Vandal Resistance | IK10 |
|---|
| Construction | Junction Mount Pole Mount |
|---|
| Casing | Metal PFA136 PFB203W + PFA152 |
|---|
| 尺寸 | Φ109.9mm × 81mm (4.33" x 3.19") |
|---|
| 淨重 | 0.34Kg (0.75lb) |
|---|
| 毛重 | 0.47Kg (1.04lb) Wall Mount PFB203W Ordering Information |
|---|
| 類型 | Part Number Description DH-IPC-HDBW1320EP 3MP IR Mini-Dome Network Camera, -0280B 2.8mm,DWDR, PAL DH-IPC- 3MP IR Mini-Dome Network Camera, HDBW1320EN 2.8mm,NTSC -0280B |
|---|

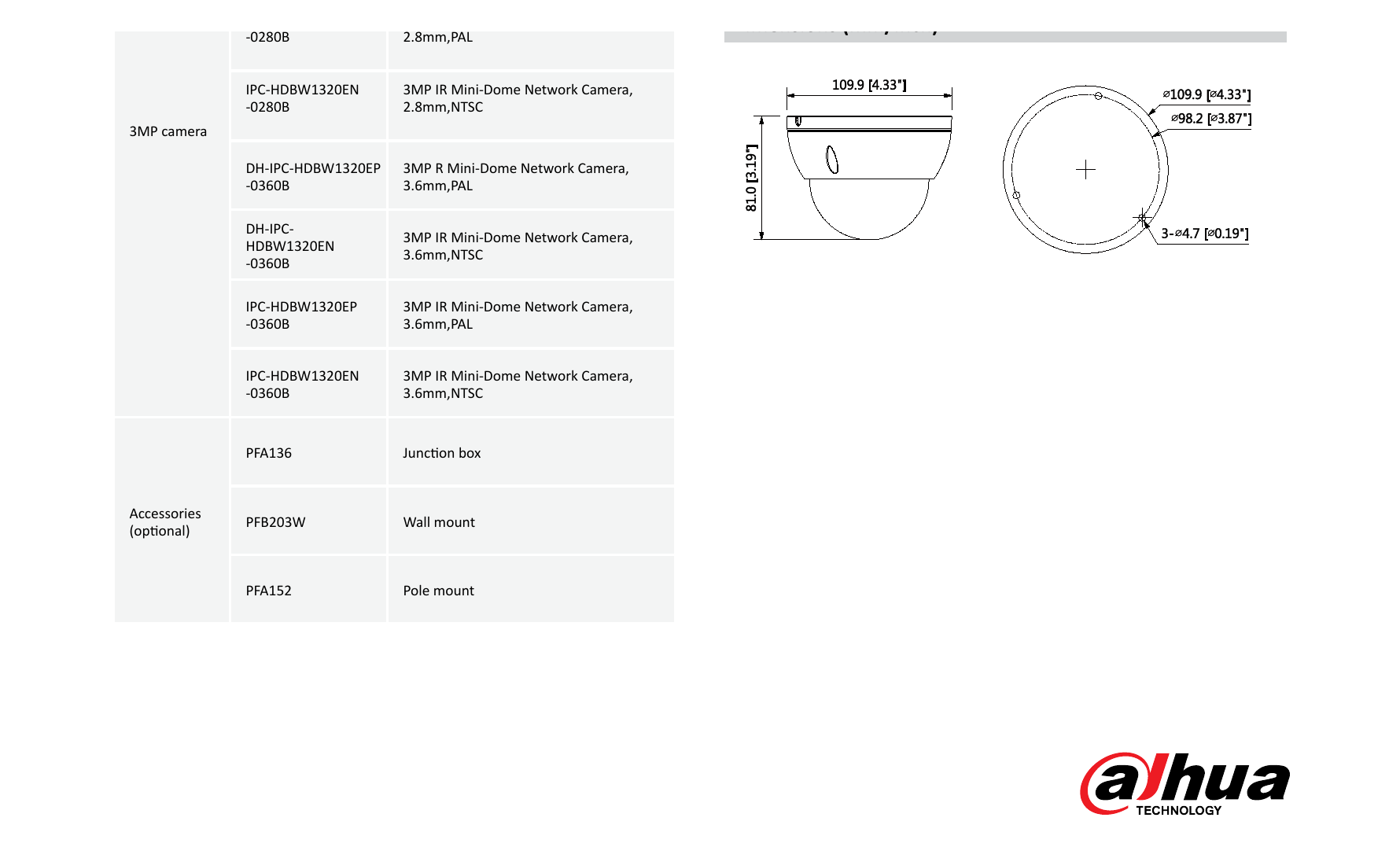

| IPC-HDBW1320EP | 3MP IR Mini-Dome Network Camera, Dimensions (mm/inch) |
|---|
| -0280B | 2.8mm,PAL |
|---|
| IPC-HDBW1320EN | 3MP IR Mini-Dome Network Camera, |
|---|
| DH-IPC-HDBW1320EP | 3MP R Mini-Dome Network Camera, |
|---|
| -0360B | 3.6mm,PAL DH-IPC- 3MP IR Mini-Dome Network Camera, HDBW1320EN 3.6mm,NTSC -0360B |
|---|
| PFA136 | Junction box Accessories |
|---|
| PFB203W | Wall mount (optional) |
|---|
| PFA152 | Pole mount www.dahuasecurity.com |
|---|
