| Display | 2.4"@ TFT Color LCD Screen (720*1280) |
|---|
| Camera | Camera @ 2MP |
|---|
| Field of View | Diagonal: 145°, Horizontal: 118°, Vertical: 62° |
|---|
| 操作系統 | Linux CPU: 1.2GHz Dual Core RAM: 256MB; ROM: 512MB Speaker: 8ohms±20% @1.0W Microphone: *1 (Sensitivity: -29 to -35 dB / Omni-directional / Signal-to-Noise Ratio: 58 dB / Impedance: 2.2 kΩ Fingerprint Sensor: In-Glass Fingerprint (Z-ID) |
|---|
| Authentication method | Fingerprint / Card / Password (Physical Touch Keypad ) |
|---|
| 用戶容量 | 10,000 (1:N) |
|---|
| 卡容量 | 10,000 (1:N) |
|---|
| Fingerprint Template Capacity | 10,000 (1:N) |
|---|
| Transaction Capacity | 500,000 |
|---|
| Max. User Password Length | 6 to 8 Digits |
|---|
| Biometric Verification Speed | less than 0.3 sec (Fingerprint) |
|---|
| False Acceptance Rate (FAR) % | FAR ≦ 0.0001% (ZKFingerprint V10.0) |
|---|
| False Rejection Rate (FRR) % | FRR ≦ 0.01% ; (ZKFingerprint V10.0) |
|---|
| Biometric Algorithm | ZKFingerprint V10.0 ID Card@125 kHz (Standard) Optional Multi-Tech Module: Module1: ID & IC & DESFire EV1 / EV2; (125 kHz & 13.56 MHz Dual Frequency) Module 2: ID & IC & DESFire EV1 / EV 2 & FeliCa & Legic & HID Prox (125 kHz & 13.56 MHz Dual Card Type Frequency) Module 3: ID & IC & DESFire EV1 / EV2 & FeliCa & Legic & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency) Module 4: ID & IC & |
|---|
| Standard Functions | Methods Video Door Phone, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push, Protocol Switch, HTTPS / SSH Backend Access, T9 Keyboard (Input) ZSmart, SIP Client (Ver2.0), Wi-Fi, IC Card, Multi-Tech Module: Module 1 / Module2 / Module3 / Optional Functions Module 4, Wireless Doorbell RS485 (DM10 Controller 1 Door Expansion (Coming soon) / |
|---|
| 供電 | DC 12V 3A |
|---|
| 工作溫度 | -5℃ to 55℃ (23 ℉ to 131 ℉ ) |
|---|
| 工作濕度 | 10% to 90% RH (Non-condensing) |
|---|

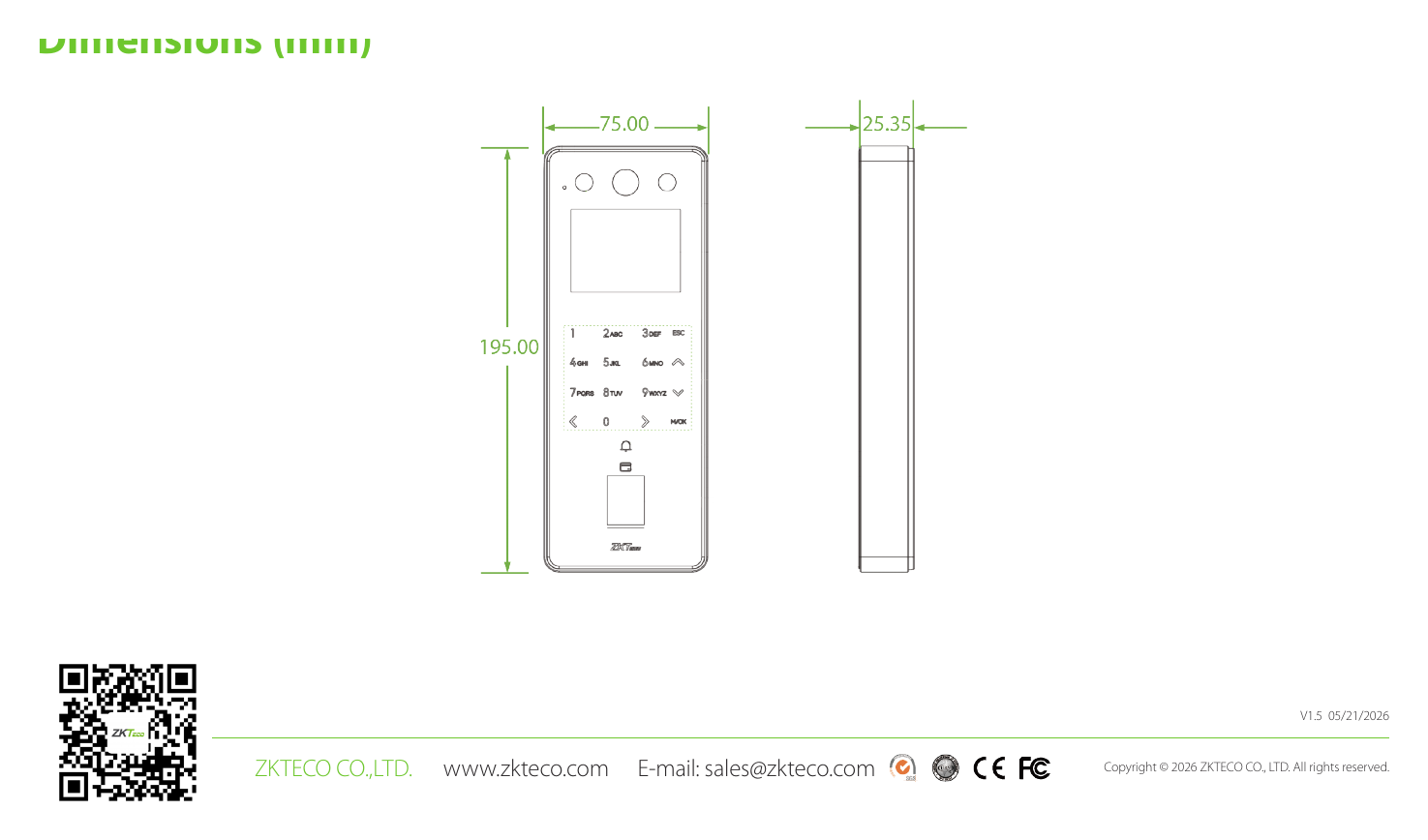

| 尺寸 | 195 mm*75 mm*25.35 mm (L*W*H) |
|---|
| 毛重 | 1.13 Kg |
|---|
| 淨重 | 0.52 Kg Software: ZKBio CVAccess / ZKBioTime Supported Software Mobile App: ZSmart |
|---|
| 安裝 | Wall-mount (Compatible with Asian Gang-box / Single Gang-Box / European Gang-Box) |
|---|
| Housing Material | Aluminium Alloy IP65 (waterproof and dustproof ) Ingress Protection Rating IK04 (Vandal Resistant) |
|---|
| Certifications | ISO14001, ISO9001, CE, FCC, RoHS Support Fingerprint, RFID module: ID / IC; Communication: TCP/IP; |
|---|
| F35 | 1 PCS Capacity: 10,000 Fingerprint,10,000 card, 500,000 transactions 7“ LCD HD touch screen 1024*768 OS Linux System |
|---|
| VT07-B01 | 1 PCS DDR 2G, Flash 1G Communication: TCP/IP DC 12V 3A for F35 UK Standard (Optional) |
|---|
| Exit Button Detector | Mobile App Alarm F35 V1.5 05/21/2026 |
|---|
