ZKTeco PE162S-300-M-G 為16-Port Managed Gigabit PoE Switch with 2*Gigabit RJ-45 Uplinks and 2*Gigabit SFP Uplinks，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PE162S-300-M-G 香港價格連安裝報價。
| 供電 | Input: AC 100-240V, 50-60Hz 16*10/100/1000Mbps PoE Ports 2*10/100/1000Mbps Uplink Ports Ethernet 2*1000Mbps SFP Ports 1*RJ45 Console Port Performance |
|---|---|
| 交換容量 | 40Gbps |
| 包轉發率 | 29.76Mpps |
| Packet Buffer | 4Mbit |
| Flash Memory | 16MByte |
| DDR SDRAM | 128MByte |
| MAC Address | 8K |
| Jumbo Frame | 10Kbytes |
| VLANs | 4096 Standard IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE Network Protocol 802.1ab, IEEE 802.1p, IEEE 802.1q, IEEE 802.1x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w |
| PoE Protocol | IEEE802.3af (15.4 W), IEEE802.3at (30 W) |
| Industry Standard | EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) 10BASE-T: Cat3, 4, 5 or above UTP(≤100 M) |
| Network Medium | 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Security Certificate | CE, FCC, RoHS Operating temperature: -10 to 50°C Storage temperature: -40 to 70°C Operating Humidity: 10% to 90%, non-condensing Storage Humidity: 5% to 95%, non-condensing |
| 指示燈 | PWR, SYS, PoE/ACT, Link/ACT |
| PWR (Power Indicator) | Lighting: Powered, Un-Light: No Power |
| SYS (System Indicator) | Flashing: System Start-up, Lighting: System Running |
| PoE/ACT | Lighting: PoE on, Un-Light: PoE off |
| Link/ACT | Lighting: Link connection, Flashing: Data transmission, Un-Light: Link disconnect |
| 重設 | Short press restart, long press 5 seconds to restore factory Settings Product Dimensions: 440*204*44mm Package Dimensions: 500*290*85mm Product N.W: 2.65KG (200W) / 2.78KG (300W) Product G.W: 3.31KG (200W)/ 3.44KG (300W) Input Voltage: AC100-240V/50-60Hz Power Supply: 52V 3.84A / 52V5.76A Product Power: maximum 15W / maximum 15W POE Power: maximum 180W / maximum 280W Ethernet switch: 1 Set, Instru |
| IPv4 | IPv4 VLAN Interface, IPv4 Static Routes, ARP |
| IPv6 | IPv6 VLAN Interface, IPv6 Static Routes, IPv6 ND Port Switch, Port Description, Port Speed, Port Duplex, Port Flow Control, Jumbo(Up to 10K), EEE, Fiber Module(DDM) Supports load balance policy; Base on MAC and IP-MAC, Static and Dynamic Group, Supports LACP, Up to 8 groups |
| Storm Control | Broadcast, Unknown Multicast, Unknown Unicast |
| Port Mirroring | One to one monitor, Many to one monitor, Ingress/Egress/Both, Up to 4 session groups |
| Port Security | MAC Address Constraints, Port Security MAC Address, Protect/Restrict/Shutdown Access/Trunk/Hybrid, VLAN Tunnel (Q-in-Q Tunnel), Congurable VID from 1 - 4094; Max. 256 static VLAN groups, Voice VLAN, MAC VLAN, Surveillance VLAN, Protocol VLAN, GVRP |
| Spnning Tree Protocol | STP/RSTP/MSTP, BPDU Filter, BPDU Guard, Edge Port |
| LLDP | LLDP, LLDP MED IGMP Snooping, IGMP V1/V2/V3, Router Port, Static IGMP group address, IGMP groups filtering, Querier, MLD Snooping, MVR Traffic classification based, Strict priority and WRR, Port Priority, 802.1P Priority, IP TOS Priority, IP DSCP Priority, Supports up to 8 queues per port, Priority Remarking PoE Temperature, PoE Type/Level/Power/Voltage/Current, PoE Switch, PoE Watchdog, PoE Power |
| DHCP | DHCP Server, IP Pool, Static Binding, DHCP Relay HTTP, HTTPS, Telnet, SSHv2, Manager ACL, Session Timeout, Password Retry Count, Silent Time |
| AAA | RADIUS, TACACS+, 802.1X, Base on port/MAC/local/WEB |
| DHCP Snooping | Global/VLAN, Option 82, Circuit ID |
| ACL | MAC ACL, IPv4 ACL, IPv6 ACL |
| Syslog | Logging Message, Remote Server |
| Manager Access | Console, HTTP/HTTPS, Telnet, SSH, SNMP |
| Manager IP | Static Address, DHCP Client, Supports IPv4 and IPv6 address, Manager VLAN, DNS |
| Time Synchronization | SNTP, Manual Time |
| SNMP | V1/V2C/V3, Community, V3 User, Group, Trap Host |
| Product Type | Part Number Description |
| Managed PoE Switch | PE162S-300-M-G 20 Ports Gigabit Managed PoE Switch V1.0 02/08/2024 |
| ZKTECO CO.,LTD. www.zkteco.com | E-mail: sales@zkteco. Copyright © 2024 ZKTECO CO., LTD. All rights reserved. RoHS |
* 規格以原廠最新 Datasheet 為準。

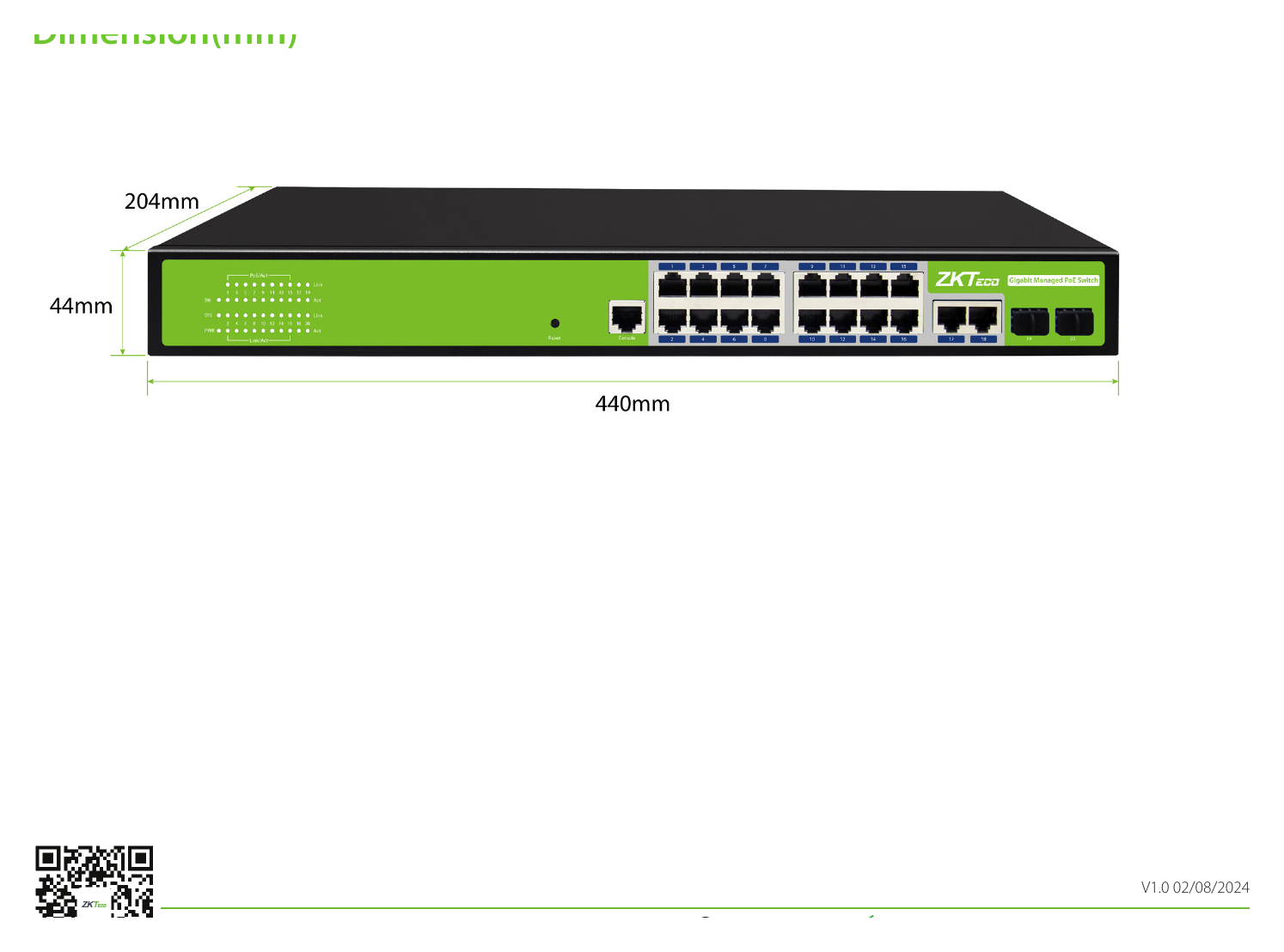

詳見圖示｜Unit: mm
PE162S-300-M-G ZKTeco 16-Port Managed Gigabit PoE Switch with 2*Gigabit RJ-45 Uplinks and 2*Gigabit SFP Uplinks亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，PE162S-300-M-G 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 PE162S-300-M-G 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
PE162S-300-M-G ZKTeco 16-Port Managed Gigabit PoE Switch with 2*Gigabit RJ-45 Uplinks and 2*Gigabit SFP Uplinks適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
