tp-link T2500-28TC(UN)1.0 為T2500-28TC Datasheet，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 T2500-28TC(UN)1.0 香港價格連安裝報價。
| Interfaces | 4 10/100/1000Mbps RJ45 Ports 4 Combo 1000Mbps SFP Slots |
|---|---|
| Console Port | 1 RJ45 Console Port |
| 交換容量 | 12.8Gbps |
| Forwarding Rate | 9.5Mpps |
| Performance | MAC Address Table 8K |
| Packet Buffer Memory | 4Mb |
| Jumbo Frame | 2048Bytes |
| 供電 | 100-240V, 50/60Hz |
| Maximum Power Consumption | 15W (220V/50Hz) |
| Dimension (W * D * H) | 17.3*7.1*1.7 in.(440*180*44 mm) |
| 重量 | 2.7kg |
| FAN Quantity | 0 |
| Operation Temperature | 0℃ ~40℃ (32 ℉ ~104 ℉ ) |
| 儲存溫度 | -40℃ ~70℃ (-40 ℉ ~158 ℉ ) |
| Operation Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing CE, FCC |
| Link Aggregation | Loopback Detection |
| - Static Link Aggregation | Flow Control |
| - 802.3ad LACP | Port Mirroring - Up to 14 aggregation groups, containing 8 - One-to-One |
| ports per group | - Many-to-One |
| L2 Features | Spanning Tree Protocol - Flow-Based |
| - 802.1D STP | - Tx/Rx/Both - 802.1w RSTP - 802.1s MSTP - STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect |
| Support 256 IGMP groups | MLD Snooping |
| IGMP Snooping | - MLD v1/v2 Snooping |
| - IGMP v1/v2/v3 Snooping | - MLD Snooping Querier |
| - IGMP Fast Leave | - Fast Leave |
| - Multicast VLAN | - Static Multicast - IGMP Snooping Querier - Unknown IGMP Throttling - Static Multicast |
| VLAN Group | Private VLAN |
| - Max. 4K VLAN Groups | GVRP |
| 802.1Q Tagged VLAN | VLAN VPN (QinQ) |
| MAC VLAN | - Selective QinQ |
| - 512 Groups | - Voice VLAN Protocol VLAN - 16 Groups - 16 Protocols |
| 802.1p/DSCP priority | |
| 4 Priority Queues | - Mirror(to supported interface) |
| Queue Scheduling | - Redirect(to supported interface) |
| - SP(Strict Priority) | - Rate Limit |
| - WRR(Weighted Round Robin) | - QoS Remark - SP+WRR Bandwidth Control Port/Flow based Rating Limiting |
| Supports up to 64 entries | Standard IP ACL |
| Time-Based ACL | - Source IP |
| MAC ACL | - Destination IP |
| - Source MAC | Extended IP ACL |
| - Destination MAC | - Source IP |
| - VLAN ID | - Destination IP |
| - User Priority | - Fragment |
| - EtherType | - IP Protocol |
| Combined ACL | - TCP Flag |
| IP-MAC-Port Binding | AAA (including TACACS+) |
| DoS Defend | Port Isolation |
| Dynamic ARP Inspection | Secure web management through HTTPS with |
| IP Source Guard | SSLv3/TLS1.0 |
| Static/Dynamic Port Security | Secure Command Line Interface(CLI) |
| - Up to 64 MAC addresses per port | management with SSHv1/SSHv2 Broadcast/Multicast/Unicast Storm Control IP/Port/MAC based access control - kbps/ratio/pps control mode 802.1X - Port based authentication - MAC(Host) based authentication - Guest VLAN - Support Radius authentication and accountability |
| OAM | 802.3ah Ethernet Link OAM Device Link Detect Protocol(DLDP) |
| Web-based GUI | DHCP Option82 Command Line Interface(CLI) through console DHCP Relay |
| port, telnet | 802.1ab LLDP/LLDP-MED |
| SNMPv1/v2c/v3 | CPU Monitoring |
| Management | SNMP Trap/Inform Cable Diagnostics |
| RMON (1,2,3,9 groups) | Access Control |
| PPPoE Circuit ID | SNTP |
| DHCP/BOOTP Client | System Log DHCP Snooping |
| Dual IPv4/IPv6 stack | Path maximum transmission unit (MTU) discovery |
| IPv6 Support | Multicast Listener Discovery (MLD) Snooping ICMP version 6 |
| IPv6 neighbor discovery (ND) | TCPv6/UDPv6 |
| MIB II (RFC1213) | RMON MIB (RFC2819) |
| Interface MIB (RFC2233) | RMON2 MIB (RFC2021) |
| Ethernet Interface MIB (RFC1643) | Radius Accounting Client MIB (RFC2620) |
| Bridge MIB (RFC1493) | Radius Authentication Client MIB (RFC2618) P/Q-Bridge MIB (RFC2674) Remote Ping, Traceroute MIB (RFC2925) |
| Product Model | Description |
| T2500-28TC | 24-Port 10/100Mbps and 4-Port Gigabit JetStream L2 Managed Switch with 4 Combo SFP Slots |
| TL-SM311LS | Gigabit SFP module, Single-mode, LC interface, Up to 10km distance |
| TL-SM311LM | Gigabit SFP module, Multi-mode, LC interface, Up to 550m distance |
| TL-SM321A | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1550nm/RX:1310nm, 10km |
| TL-SM321B | Gigabit WDM Bi-Directional SFP Module, single-mode, LC connector, TX:1310nm/RX:1550nm, 10km |
| MC210CS | Gigabit single-mode SC SFP Transceiver, up to 15Km, chassis mountable |
| MC200CM | Gigabit multi-mode SC SFP Transceiver, up to 550m, chassis mountable |
| MC220L | Gigabit SFP slot supporting mini-GBIC modules, chassis mountable |
| MC1400 | 14-slot power supply chassis for TP-LINK Media Converter, 19-inch rack-mountable www.tp-link.com Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright @ 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

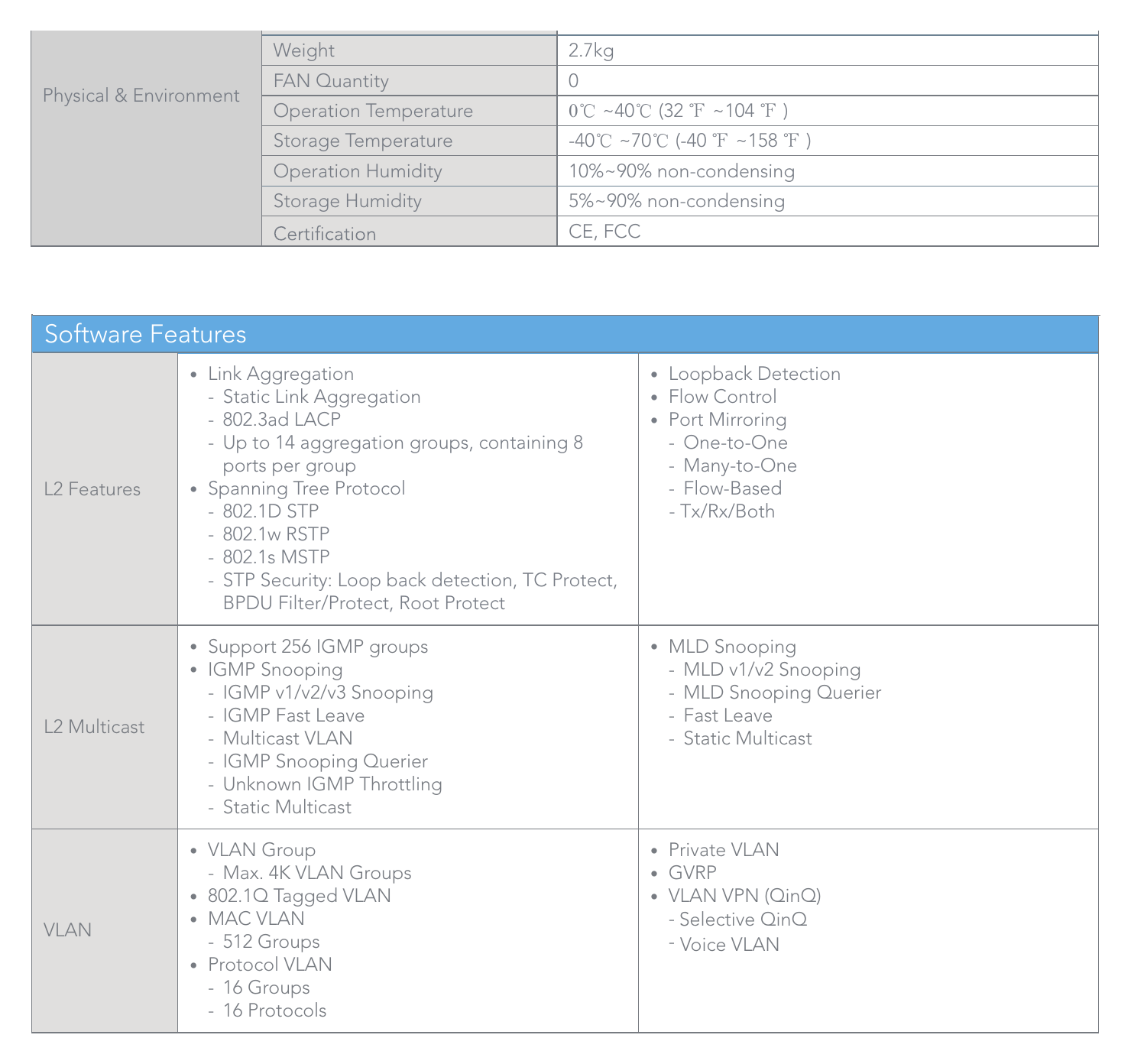

詳見圖示｜Unit: mm
