| 影像感測器 | 1/3” CMOS Sensor Focal Length: 3.16 mm±5% |
|---|
| 鏡頭 | Aperture: F1.6±10% Field of View: 116.7° (Diagonal), 99.7° (Horizontal), 53.8° (Vertical) |
|---|
| Night Vision | 850 nm IR LED (98 ft / 29.8 m), Color Night Vision |
|---|
| 日夜模式 | IR-Mode/ Full-Color Mode/ Smart Mode |
|---|
| Lighting | / 1× DC Port 1× Ethernet Port |
|---|
| Interface & Button | 1× RESET Button 1× microSD Card Slot (Up to 512 GB) 1× Nano SIM Card Slot |
|---|
| Hub Compatibility | / |
|---|
| Maximum Resolution | 1920 x 1080 px |
|---|
| Frame Rate | 30 fps |
|---|
| Digital Zoom | None |
|---|
| 視頻壓縮 | H.264 |
|---|
| Live View | Yes 3D DNR |
|---|
| 影像增強 | BLC Linear-WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 95 dB (Level measured at 4-inch/10-cm distance) |
|---|
| 本機儲存 | microSD Card Slot on Camera (Up to 512 GB) |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) Motion Detection Person Detection Pet Detection Vehicle Detection |
|---|
| AI Detection | Line-Crossing Detection Camera Tampering Cat Meows Detection Dog Barks Detection Glass Breaking Detection Yes Activity Zones *Only works with Motion/Person/Pet/Vehicle Detection. System Notification Output Notification System Notification with Snapshot (Tapo Care Services) |
|---|
| Network Connectivity | Connect via 4G or Ethernet LTE-FDD:B1/3/5/7/8/20/28 4G Connectivity LTE-TDD:B38/40/41 |
|---|
| Transmission Rate | / |
|---|
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP Max. Distance Between Hub and Camera/Doorbell |
|---|
| Ethernet Port | 1× 100 Mbps RJ45 Port |
|---|
| RTSP | Yes |
|---|
| ONVIF | Yes (Only Available with Wired Network Connection) |
|---|
| 安全 | Security / 12V DC Power Adapter Power Source IEEE 802.3af/at PoE |
|---|
| Input Voltage | 100-240 V, 50/60 Hz |
|---|
| Output Voltage | 12 V, 1 A (DC Power) |
|---|
| 供電 | Inside Ø: 2.1 mm DC Power Connector Size Outside Ø: 5.5 mm |
|---|
| Power Cord Length | 3m |
|---|
| Typical Power Consumption | 3.3 W |
|---|
| Certifications | CE, NTRA, RCM, NCC, BSMI, RoHS |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP66 Eave-Mounted |
|---|
| Mounting Options | Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
|---|
| 工作溫度 | -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F ) |
|---|
| 儲存溫度 | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F) |
|---|
| 工作濕度 | 10% ~ 90% RH, Non-condensing |
|---|
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
|---|
| Charging Temperature | / Mounting Screw Size Bracket Screw Size |
|---|

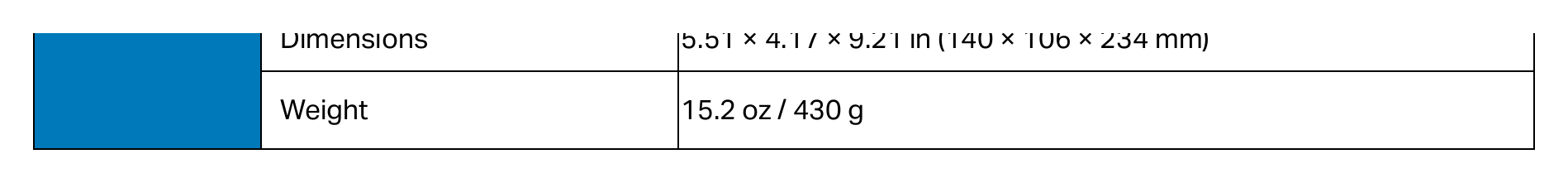

| 尺寸 | 5.51 × 4.17 × 9.21 in (140 × 106 × 234 mm) |
|---|
| 重量 | 15.2 oz / 430 g Tapo C501GW Camera ×1 DC Power Adapter ×1 Mounting Templates ×2 Mounting Bracket ×1 Mounting Anchors ×4 |
|---|
| General | Package Contents Mounting Screws ×4 Bracket Screws ×2 Detachable Antenna ×1 Waterproof Seal ×1 Waterproof Cable Attachments ×1 Quick Start Guide |
|---|
