| 按鈕 | H5E AP Clone/Pair Button WiFi On/Off Button Reset Button |
|---|
| External Power Supply | 100-240V-50/60Hz 0.5A H5R - 9.9 x 6.9 x 1.9 in. (256 x 178 x 51 mm) Dimensions (W X D X H) H5E - 3.7 x 2.1 x 1.6 in. (94×54×40mm) |
|---|

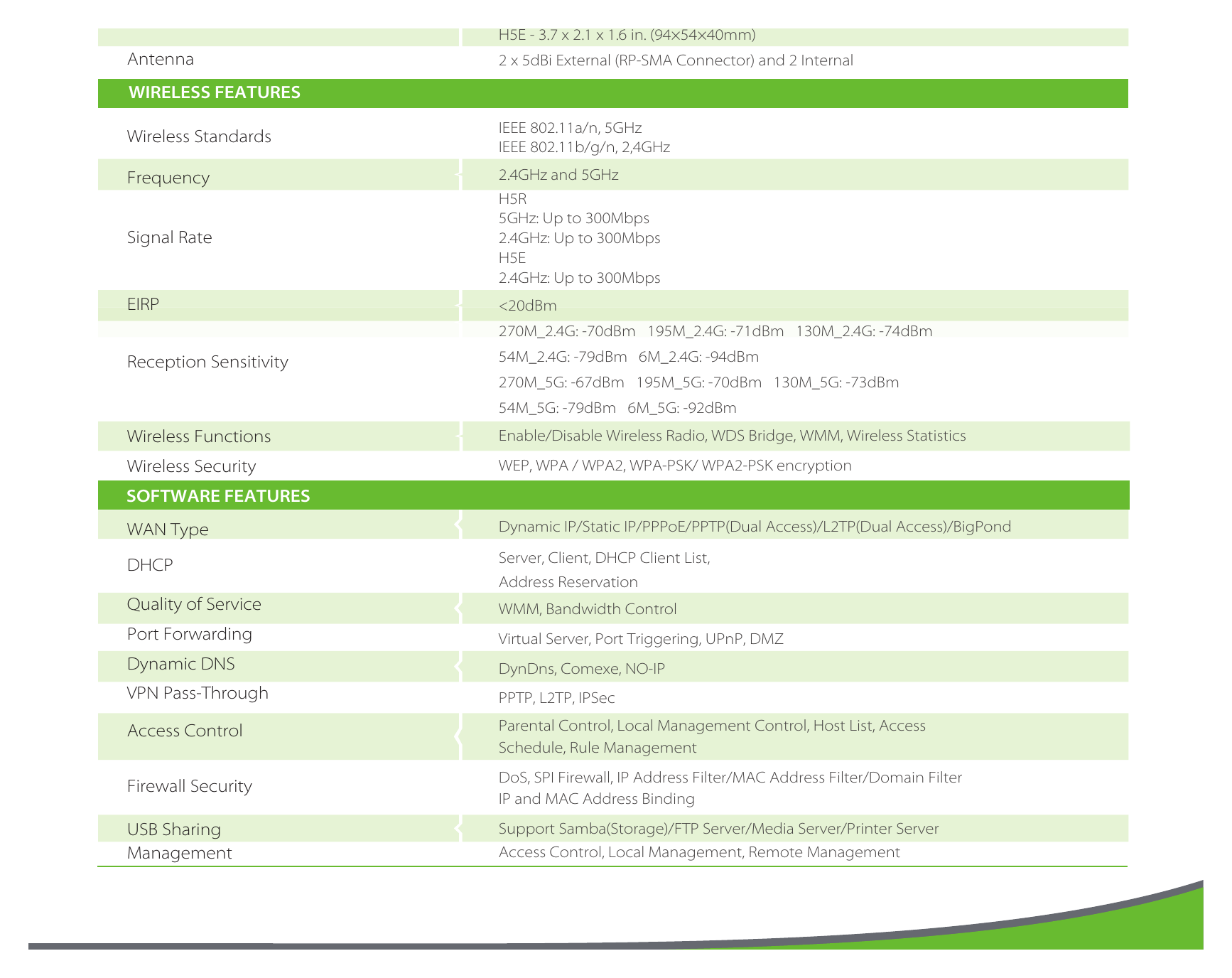

| Antenna | 2 x 5dBi External (RP-SMA Connector) and 2 Internal WIRELESS FEATURES IEEE 802.11a/n, 5GHz Wireless Standards IEEE 802.11b/g/n, 2,4GHz |
|---|
| Frequency | 2.4GHz and 5GHz H5R 5GHz: Up to 300Mbps |
|---|
| Signal Rate | 2.4GHz: Up to 300Mbps H5E 2.4GHz: Up to 300Mbps |
|---|
| EIRP | <20dBm 270M_2.4G: -70dBm 195M_2.4G: -71dBm 130M_2.4G: -74dBm |
|---|
| Reception Sensitivity | 54M_2.4G: -79dBm 6M_2.4G: -94dBm 270M_5G: -67dBm 195M_5G: -70dBm 130M_5G: -73dBm 54M_5G: -79dBm 6M_5G: -92dBm |
|---|
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
|---|
| Wireless Security | WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption SOFTWARE FEATURES |
|---|
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)/BigPond |
|---|
| DHCP | Server, Client, DHCP Client List, Address Reservation |
|---|
| Quality of Service | WMM, Bandwidth Control |
|---|
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
|---|
| Dynamic DNS | DynDns, Comexe, NO-IP |
|---|
| VPN Pass-Through | PPTP, L2TP, IPSec |
|---|
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter Firewall Security IP and MAC Address Binding |
|---|
| USB Sharing | Support Samba(Storage)/FTP Server/Media Server/Printer Server |
|---|
| Management | Access Control, Local Management, Remote Management www.tp-link.com |
|---|
| H5 KIT | AV500 Hybrid WiFi Starter Kit Specifications： OTHERS |
|---|
| Certifications | CE, FCC, IC, RoHS Microsoft Windows 8/7/Vista/XP/2000/NT/98SE, System Requirements MAC OS, NetWare, UNIX or Linux. Operating Temperature: 0℃~40℃ (32℉~104℉) |
|---|
| Environment | Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Diagram: Package: AV500 Hybrid WiFi Starter Kit H5 KIT (H5R+H5E) Power cord Resource CD Quick Installation Guide Hybrid WiFi Extender H5E Hybrid WiFi Extender H5E Hybrid WiFi Extender H5E Hybrid WiFi Router H5R Copyright © 2011 TP-LINK Technologies Co., Ltd. All rights reser |
|---|
